Cisco Catalyst 9130AX Series Access Points

FRA has the different modes of operation:

•Default operating mode—Serving Clients on both 2.4 GHz and 5 GHz

•Dual 5 GHz Mode—Serving clients on both 5 GHz Radios

•Wireless Security Monitoring—Scanning both 2.4 GHz and 5 GHz for security threats while also serving 5 GHz clients

What is a Smart Antenna connector?

The C9130AXE model has a Smart antenna connector (see Figure 17), which is connected directly to the flexible radio.

Without a supported external antenna connected to the Smart Antenna connector, the flexible radio can stay only in

2.4 GHz mode.

To connect any supported RP-TNC connector-type external antenna to the Smart antenna connector, use the DART

cable connector AIR-CAB002-D8-R= (see

Figure 18), which is to be procured separately from Cisco.

To connect any supported N connector-type external antenna to the Smart antenna connector, use the DART cable

connector AIR-CAB003-D8-N= (see

Figure 19), which is to be procured separately from Cisco.

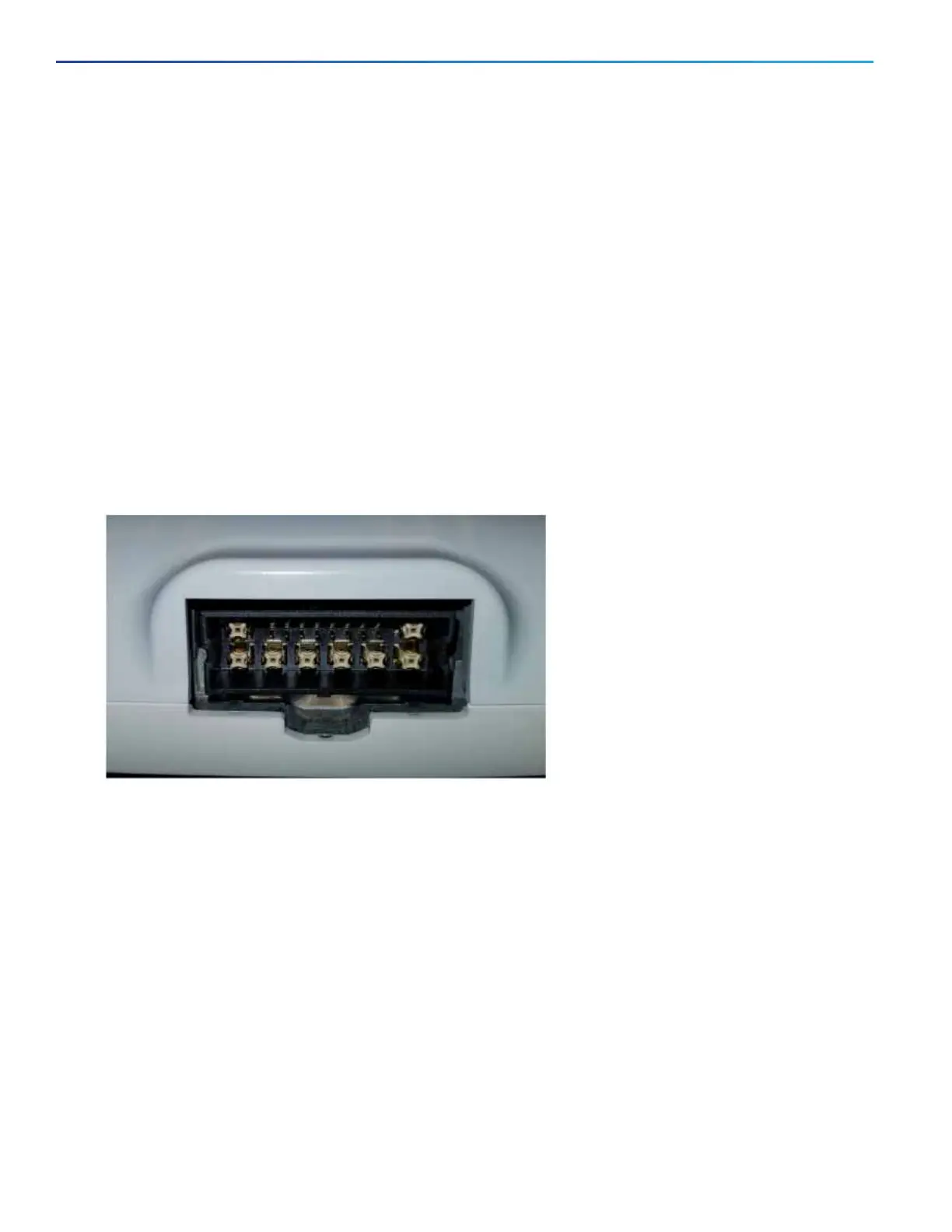

Figure 17 Smart Antenna Connector C9130AXE Model
