Step 1 Determine the required distance between mounting holes on the router. For Cisco 900 routers, the distance between
mounting holes is 4.15 inches. Figure below shows the wall-mount holes located on the underside of the router.

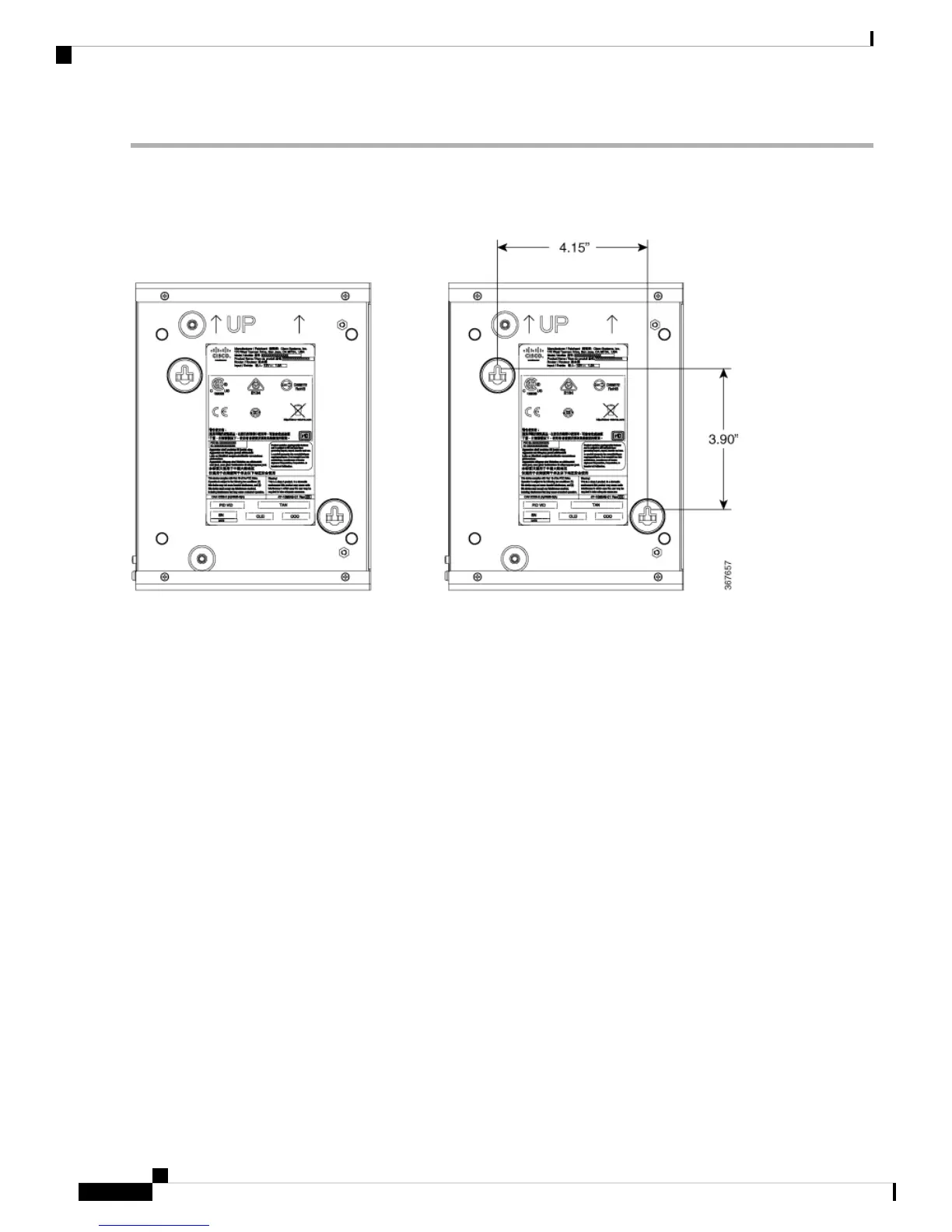

Figure 15: Router with Wall-mount Holes on the Underside
Step 2 Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a hole in the wall.
Step 3 Insert the screws, with anchors, into the wall. Leave 1/8 inch (0.32 cm) between the screw head and the wall.
Hardware Installation Guide for the Cisco 900 Series Integrated Services Router
22
Install and Connect the Router
Wall Mount
