Each port must match the wavelength specifications on the other end of the cable, and the cable must not
exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair,
Category 5 cable at lengths up to 328 feet (100 meters).
Cable Pinouts

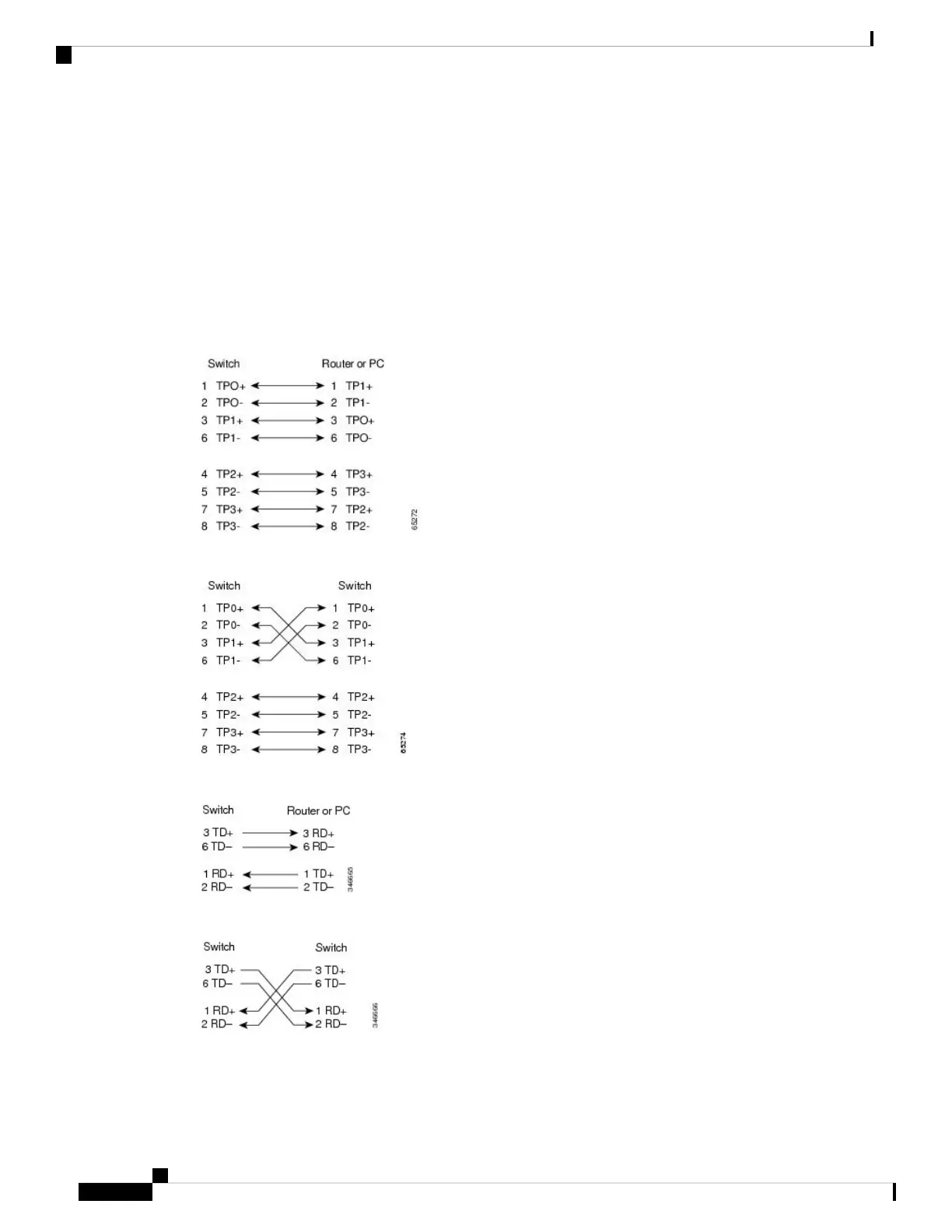

Figure 74: Four Twisted-Pair Straight-Through Cable Schematic
Figure 75: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 76: Two Twisted-Pair Straight-Through Cable Schematic
Figure 77: Two Twisted-Pair Crossover Cable Schematic
