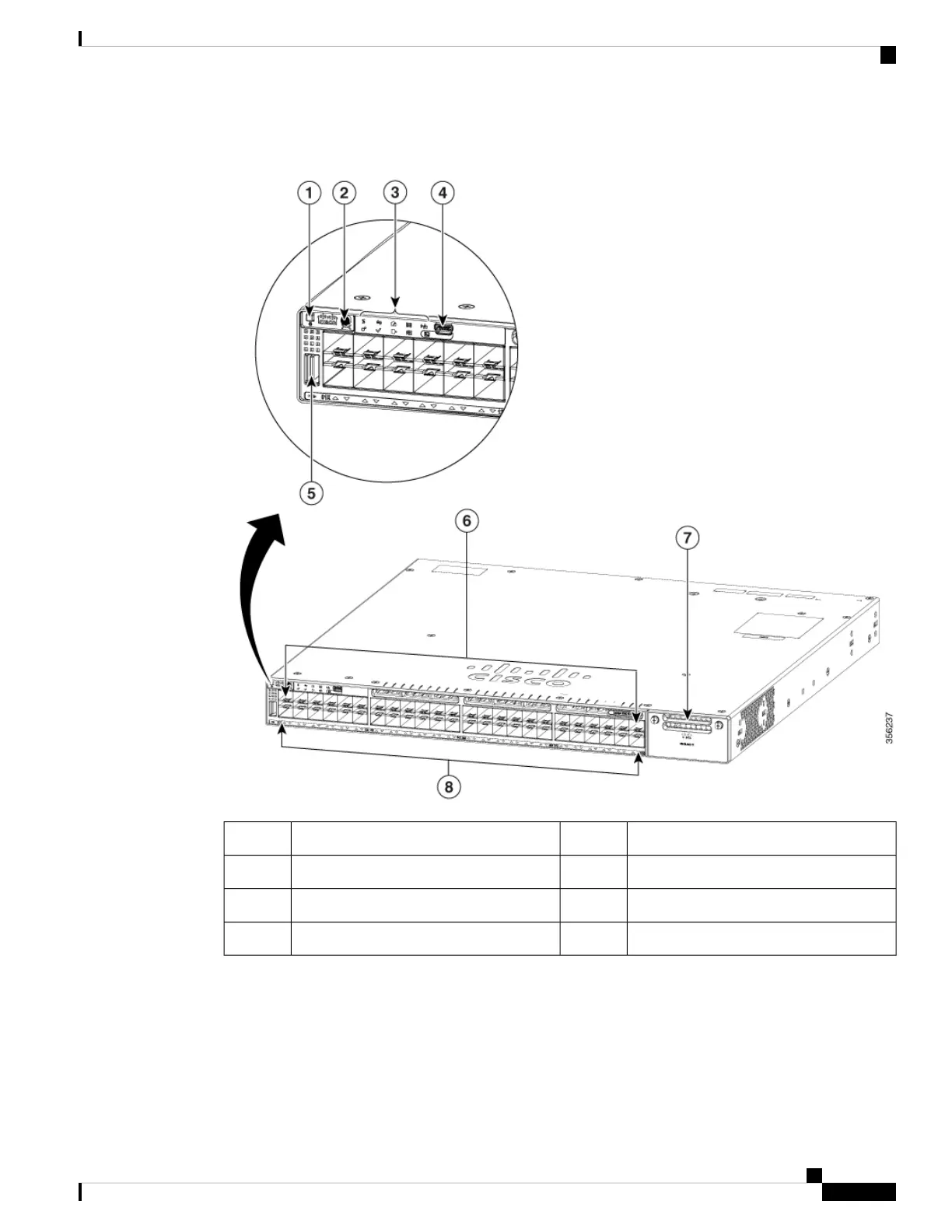

Figure 3: Front panel components of C9300-48S
USB Type A storage port5Beacon LED (UID button)1
10 M/100 M/1000 M SFP ports6Mode button2
Uplink network module slots7Status LEDs3
Port LEDs8USB mini-Type B (console) port4
Front panel components of a Cisco Catalyst 9300L Series Switch
• 12, 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
• 1 GE/10 GE/25 GE SFP28
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
7
Product Overview
Front Panel Components
