Note For instructions on mounting the switch under a desk or on a wall, see the
hardware installation guide on Cisco.com.
To secure the switch on top of or under a desk or a shelf, use the mounting
template and three mounting screws.
1. Position the mounting template on the mounting surface with the two
side-by-side slots forward. Peel the adhesive strip off the bottom, and attach
the template.
2. Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole
in the three template screw slot positions.
3. Insert the screws in the slots on the template, and tighten until they touch the
template. Remove the template from the mounting surface.
Note Use the supplied number 8 Phillips pan-head screws, or use larger
pan-head screws to securely mount the switch.

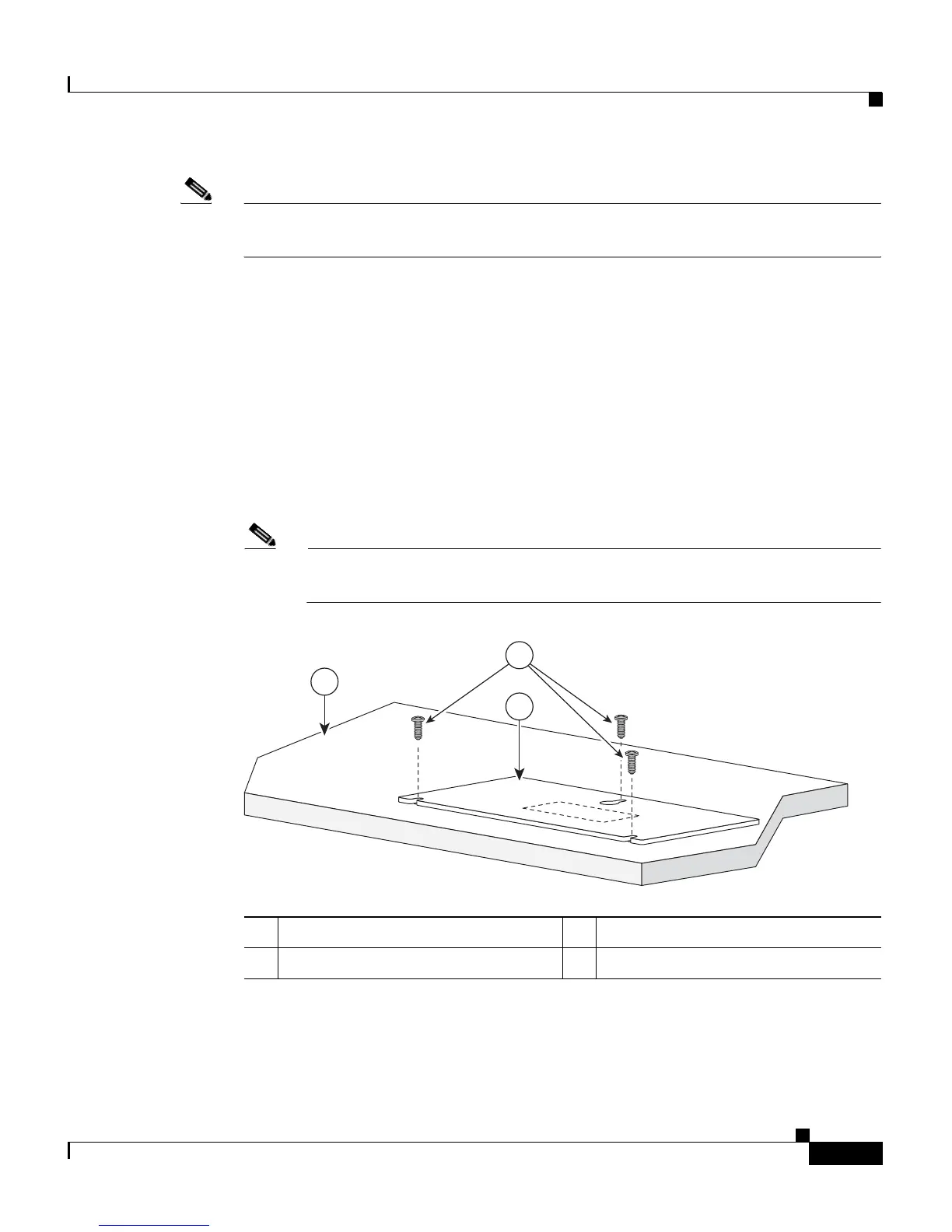

1 Mounting template 3 Desk or shelf
2 Screws
