Cisco Catalyst 4900 Series User Manual

Chapter 4 Transceiver Modules
X2 Modules
4-4
Catalyst 4900 Series Switch Installation Guide
78-18039-02

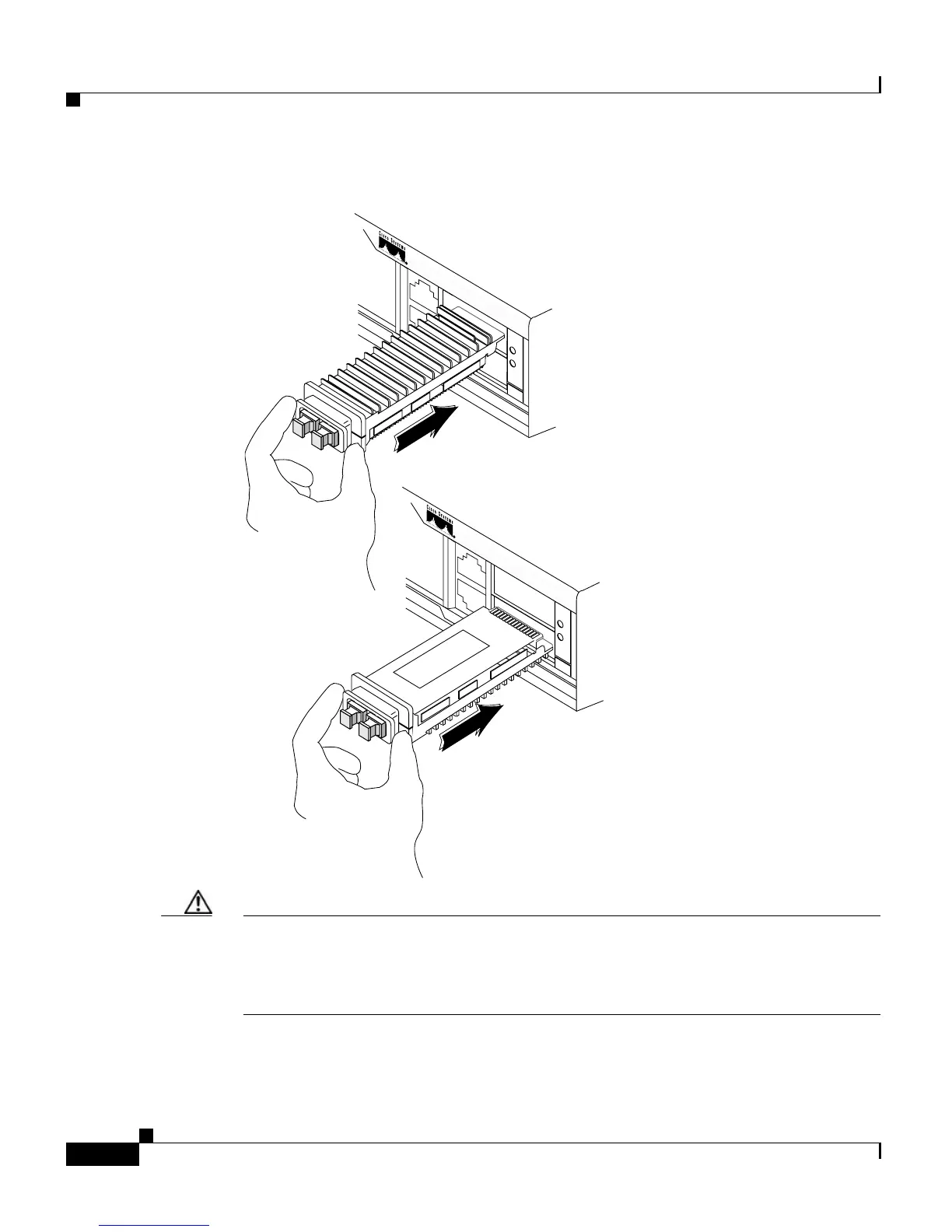

Figure 4-3 Installing the 10-Gigabit Ethernet X2 Module
Caution If you attempt to insert the bottom X2 module with the cooling fins pointing up,
you will probably permanently damage the connector. For either the top or bottom
connector, forcing a module could potentially damage both the module and the
switch.
130091
L
I
N
K
Catalyst WS-C4948 10GE
CON
MGT
X1
X2
Catalyst WS-C4948 10GE
CON
MGT
X1
X2
