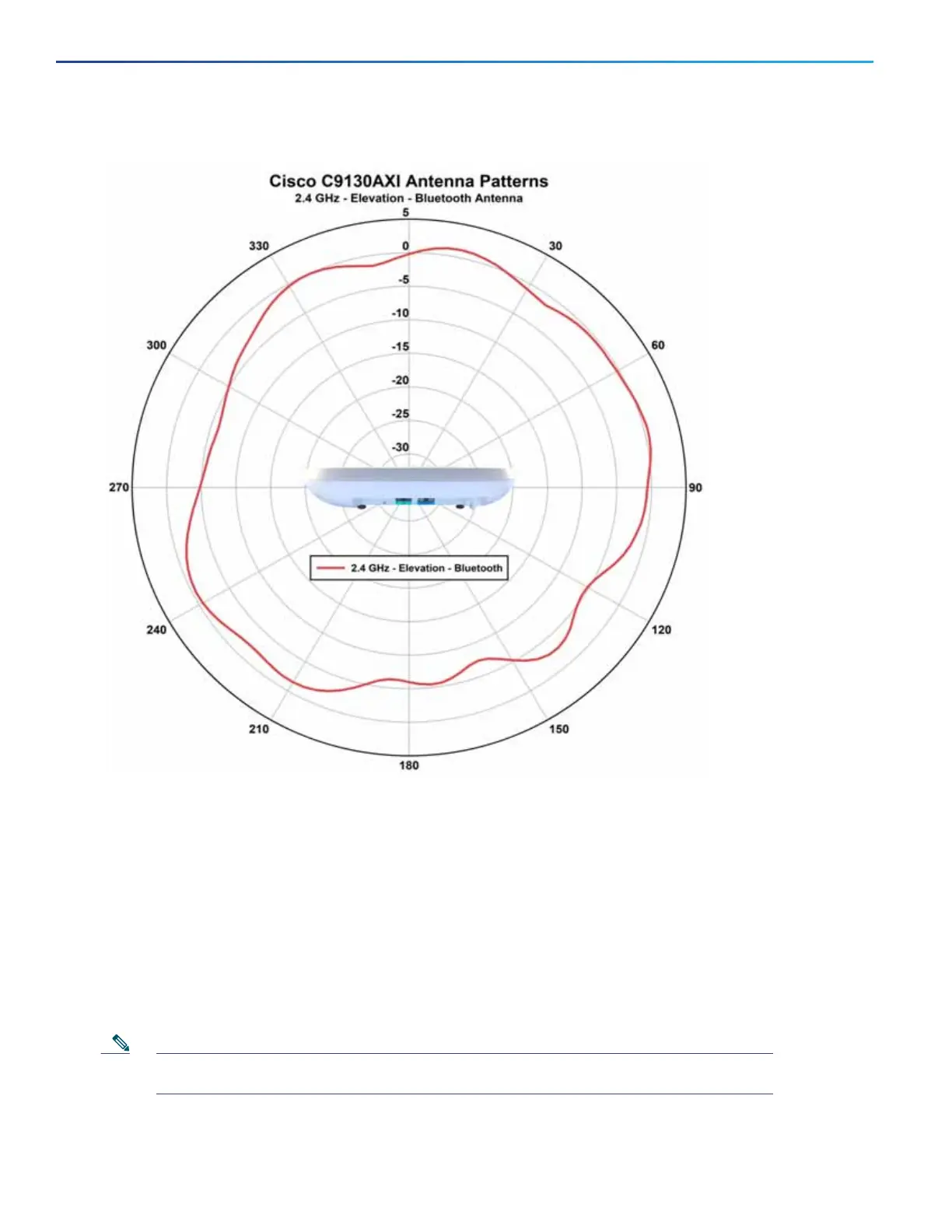

Figure 3-14 C9130AXI - Bluetooth Antenna radiation pattern (2.4 GHz Elevation)
C9130AXE (External Antenna)
The C9130AXE AP models (C9130AXE-x and C9130AXE-EWC-x) are certified for use with external antenna with gains
up to 6 dBi or 13 dBi(2.4 GHz and 5 GHz) depending on the antenna accessory being used:
 2 ft Smart Antenna Connector to RP-TNC breakout cable (AIR-CAB002-D8-R=)—For conventional (non-DART)
antennas with gains up to 6 dBi
 3 ft Smart Antenna Connector to N Connectors (AIR-CAB003-D8-N=)—For conventional (non-DART) antennas with
gains up to 13 dBi
The C9130AXE APs also support Self Identifying Antennas (SIA) on the 8-DART connector.
Note Always connect the antennas to the AP before powering the AP up. Enabling the AP radios without connecting
the antennas can result in damage to the AP.

Cisco Catalyst 9130AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Target Wake Time (TWT)	Yes
BSS Coloring	Yes
USB Port	1x USB 2.0
Frequency Bands	2.4 GHz, 5 GHz
PoE	802.3at (PoE+)
Antenna Type	Internal
OFDMA	Yes
Mounting	Ceiling, Wall
Weight	1.2 kg
Security	WPA3, WPA2, WPA, 802.1X
Management	Cisco DNA Center, Cisco Prime Infrastructure
MIMO	8x8:8 MU-MIMO (5 GHz), 4x4:4 MU-MIMO (2.4 GHz)
