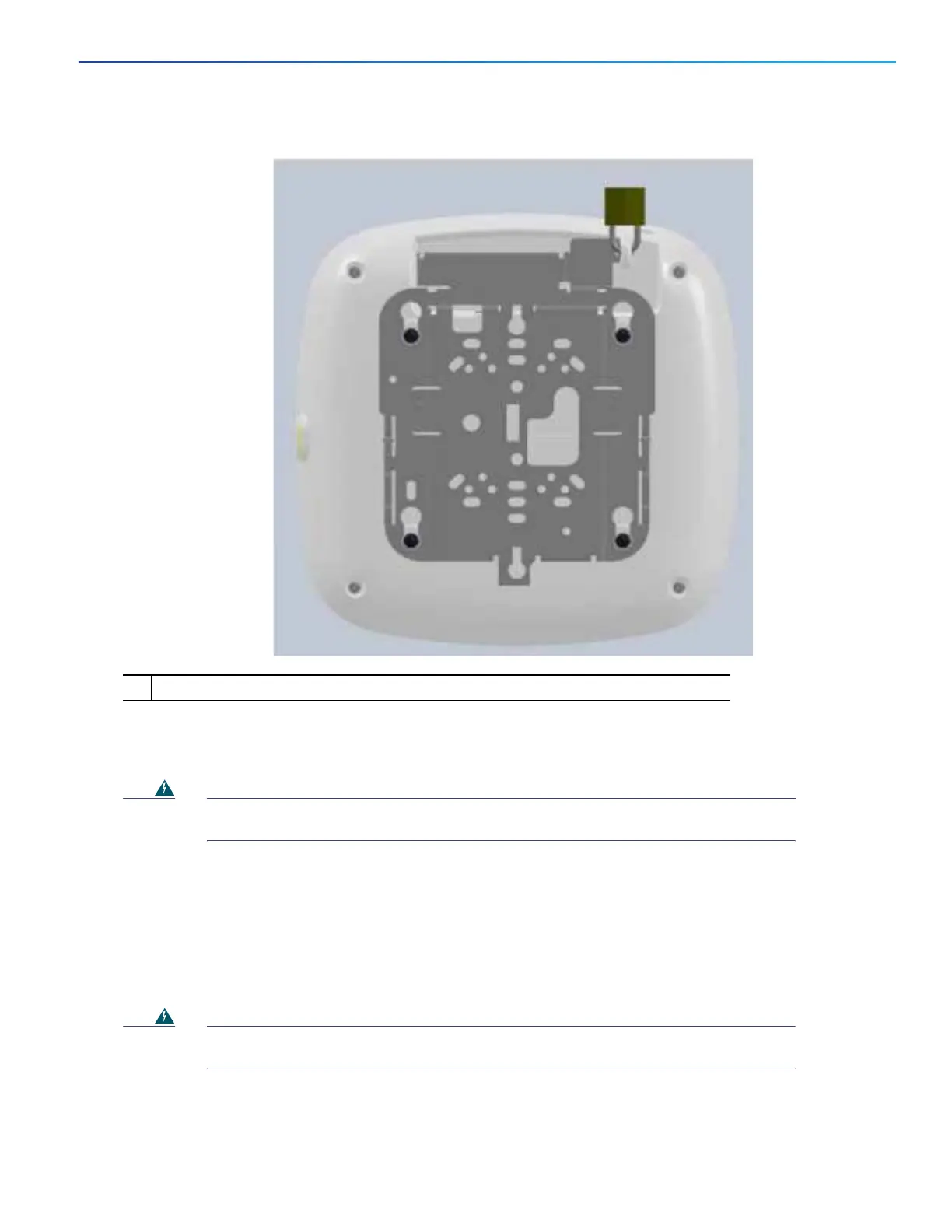

Figure 16 Locking the AP to the Bracket
10 Grounding the Access Point
Warning Only trained and qualified personnel should be allow ed to install, replace, or service this equipment.
Statement 1030
Grounding is not required for indoor installations. However, while using the C9130AXE AP model, if the external antenna
is placed outdoors, you must connect the outdoor antenna cable to a lightning arrestor and connect the lightning arrestor
to ground.
For supported external antennas, see
“List of External Antennas Supported on C9130AXE”.
The outdoor antenna connection must be grounded in accordance with the ANSI/NFPA 70, the National Electrical code
(NEC), Article 800, Grounding of Outer Conductive Shield of a Coaxial Cable.
Warning To reduce the risk of electric shock, the shield of the coaxial cable must be connected to the building
earth. Statement 1253
1
Position of the hasps for the locks on the back of the AP

Cisco Catalyst 9130AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Target Wake Time (TWT)	Yes
BSS Coloring	Yes
USB Port	1x USB 2.0
Frequency Bands	2.4 GHz, 5 GHz
PoE	802.3at (PoE+)
Antenna Type	Internal
OFDMA	Yes
Mounting	Ceiling, Wall
Weight	1.2 kg
Security	WPA3, WPA2, WPA, 802.1X
Management	Cisco DNA Center, Cisco Prime Infrastructure
MIMO	8x8:8 MU-MIMO (5 GHz), 4x4:4 MU-MIMO (2.4 GHz)
