FRA has the different modes of operation:
•Default operating mode—Serving Clients on both 2.4 GHz and 5 GHz
•Dual 5 GHz Mode—Serving clients on both 5 GHz Radios
•Wireless Security Monitoring—Scanning both 2.4 GHz and 5 GHz for security threats while also serving 5 GHz clients
What is a Smart Antenna connector?
The C9130AXE model has a Smart antenna connector (see Figure 17), which is connected directly to the flexible radio.
Without a supported external antenna connected to the Smart Antenna connector, the flexible radio can stay only in
2.4 GHz mode.
To connect any supported RP-TNC connector-type external antenna to the Smart antenna connector, use the DART
cable connector AIR-CAB002-D8-R= (see
Figure 18), which is to be procured separately from Cisco.
To connect any supported N connector-type external antenna to the Smart antenna connector, use the DART cable
connector AIR-CAB003-D8-N= (see
Figure 19), which is to be procured separately from Cisco.

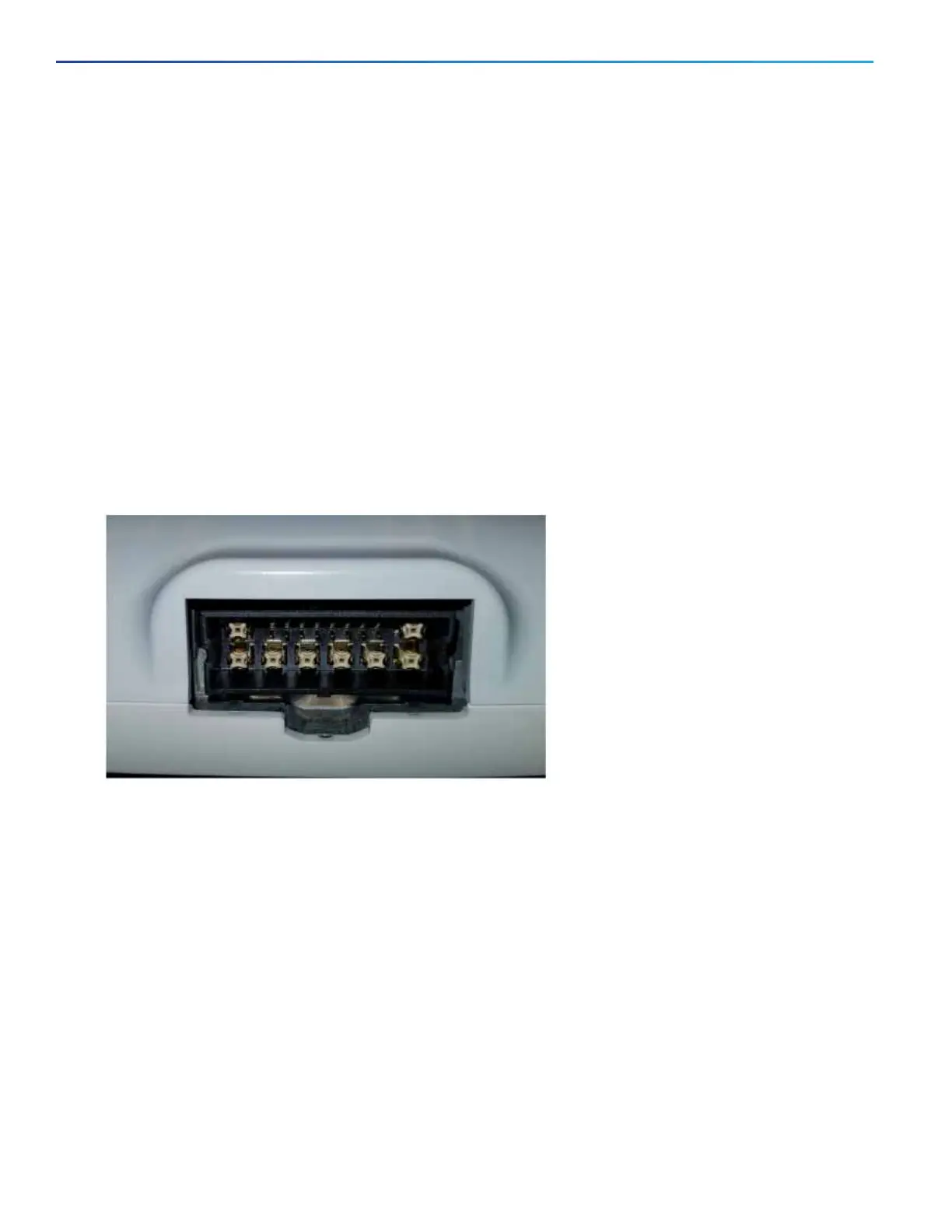

Figure 17 Smart Antenna Connector C9130AXE Model

Cisco Catalyst 9130AX Series Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Target Wake Time (TWT)	Yes
BSS Coloring	Yes
USB Port	1x USB 2.0
Frequency Bands	2.4 GHz, 5 GHz
PoE	802.3at (PoE+)
Antenna Type	Internal
OFDMA	Yes
Mounting	Ceiling, Wall
Weight	1.2 kg
Security	WPA3, WPA2, WPA, 802.1X
Management	Cisco DNA Center, Cisco Prime Infrastructure
MIMO	8x8:8 MU-MIMO (5 GHz), 4x4:4 MU-MIMO (2.4 GHz)
