Cisco Catalyst 9600 - Installing a Fan Tray

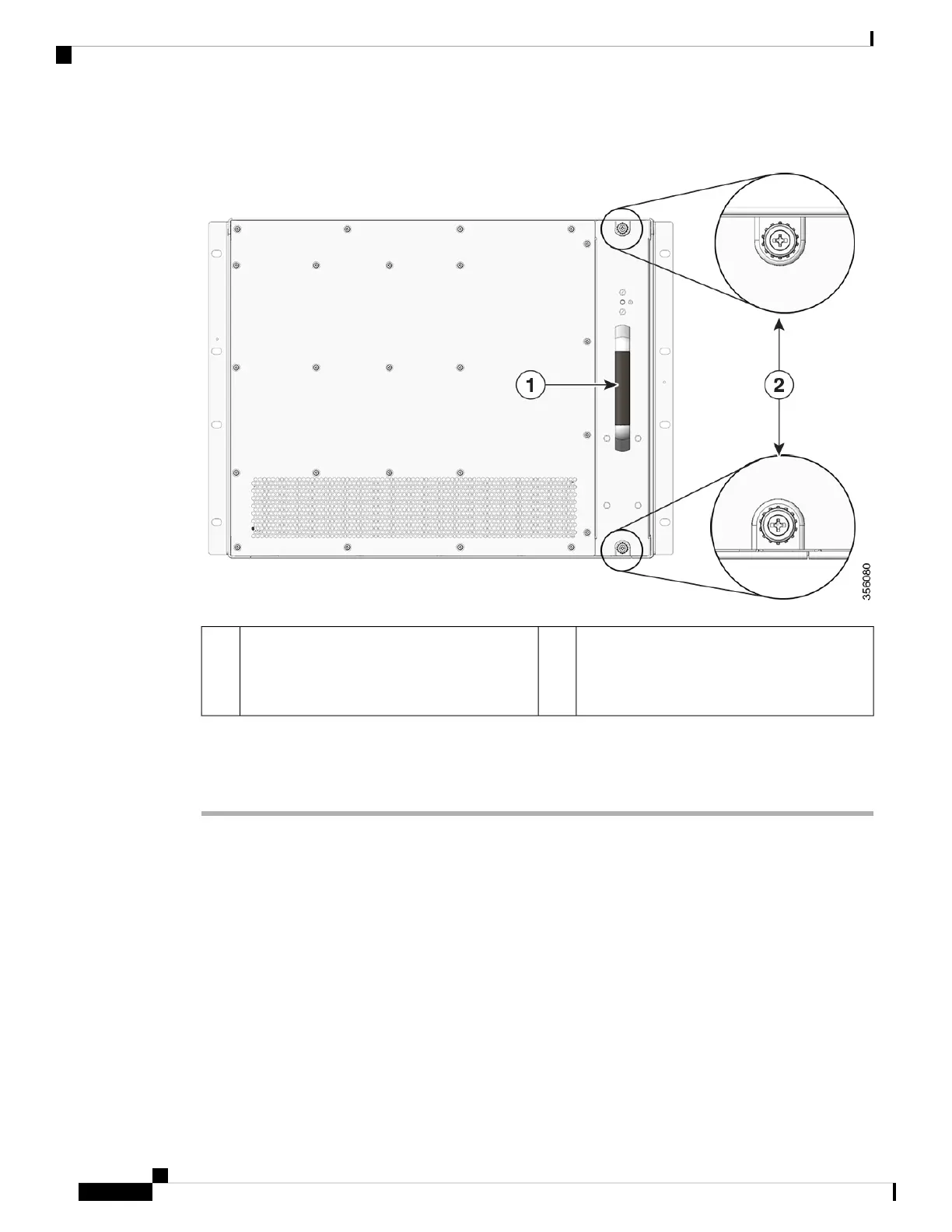

Figure 4: Captive Installation Screws on the Rear Panel
Captive installation screws on the rear panel.
Loosen to uninstall the fan tray
assembly from the rear.
Note
2Rear fan tray handle1
Step 3 Grasp the fan tray handle and slide the fan tray assembly half-way out of the bay.
Step 4 Wait for the fan blades to stop spinning; place your other hand underneath to support the bottom of the fan
tray and then remove the fan tray assembly completely.
What to do next
Set the removed fan tray aside and proceed with installing the replacement or spare fan tray.
Installing a Fan Tray
The following sections provide information about installing a fan tray in Cisco Catalyst 9600 Series switches.
