Rear Panel
The switch rear panel includes StackWise connectors, fan modules, and power supply modules.

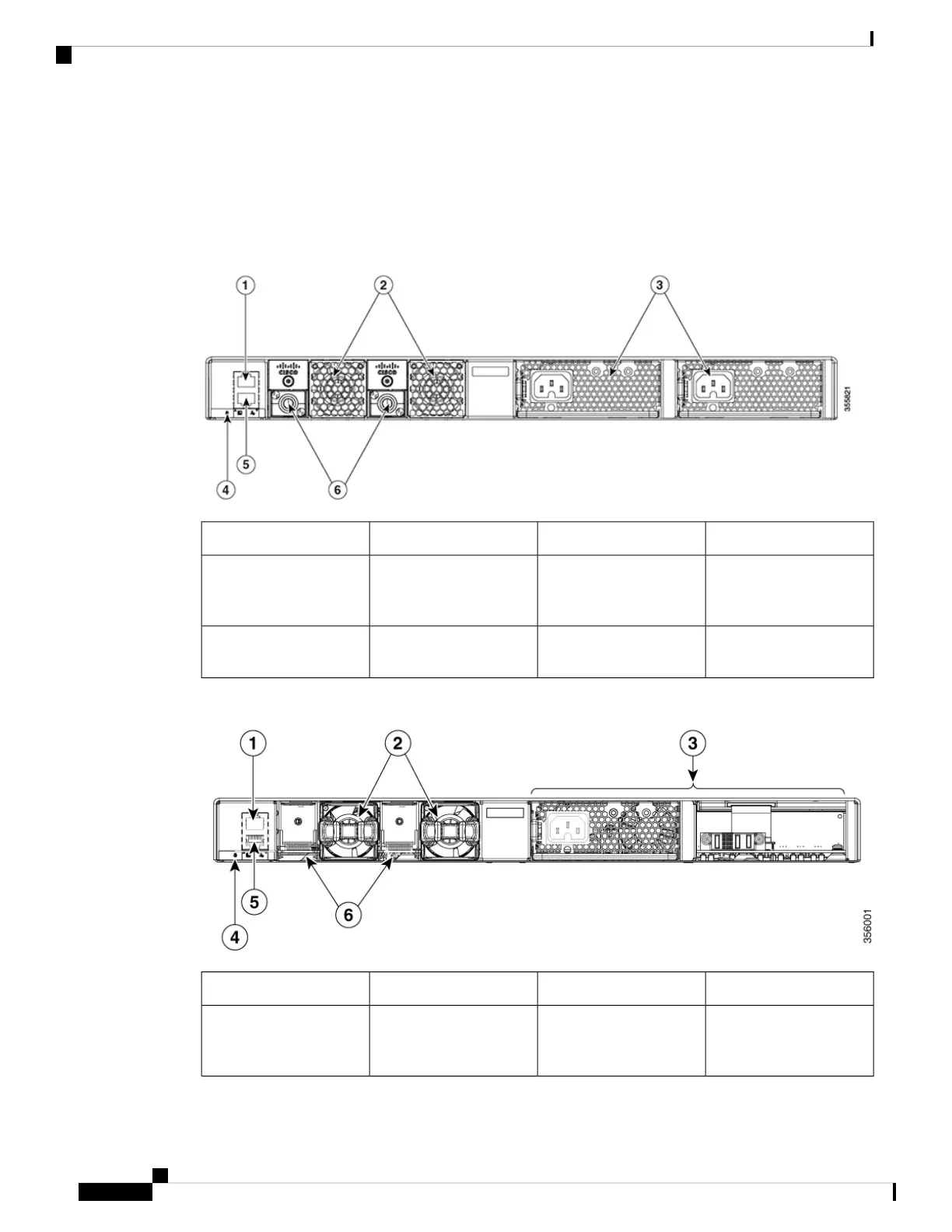

Figure 5: Rear Panel of a C9200L Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Fixed fan modules on
C9200L switches
2
StackWise-80 port
connectors
6Power supply module
slots
3
Figure 6: Rear Panel of a C9200 Switch
Blue Beacon LED4RJ-45 console port1
MGMT (RJ-45
10/100/1000 management
port)
5Modular fan modules on
C9200 switches
2
