Cisco Catalyst C9300-24U User Manual

DescriptionSwitch Model
Stackable 36 10/100/1000 Mbps and 12 Multigigabit Ethernet (100 Mbps or 1/2.5/5/10
Gbps) UPOE ports; 2x40 GE QSFP+ fixed uplink ports; PoE budget of 675 W with
1100 WAC power supply; supports StackWise-320.
C9300L-48UXG-2Q
Table 3: Cisco Catalyst 9300LM Series Switches Models and Descriptions
DescriptionSwitch Model
Stackable 48 x 10/100/1000 M Ethernet ports; 4 x 25 GE SFP28 fixed uplink
ports; 600 WAC power supply and fixed fans; supports StackWise-320.
C9300LM-48T-4Y
Stackable 24 x 10/100/1000 M UPOE ports; 4 x 25 GE SFP28 fixed uplink
ports; PoE budget of 420 W with a single default 600 WAC power supply;
supports StackWise-320.
C9300LM-24U-4Y
Stackable 48 x 10/100/1000 M UPOE ports; 4 x 25 GE SFP28 fixed uplink
ports; PoE budget of 790 W with a single default 1000 WAC power supply;
supports StackWise-320.
C9300LM-48U-4Y
Stackable 40 x 10/100/1000 M and 8 Multigigabit Ethernet
(100M/1000M/2.5GE/5GE/10GE) UPOE ports; 4 x 25 GE SFP28 fixed uplink
ports; PoE budget of 790 W with a single default 1000 WAC power supply;
supports StackWise-320.
C9300LM-48UX-4Y
Table 4: Cisco Catalyst 9300X Series Switches Models and Descriptions
DescriptionSwitch Model
Stackable 12 1/10/25 GE SFP28 downlink ports; 715 WAC power supply; supports
StackPower+, StackWise-1T and C9300X-NM network modules.
C9300X-12Y
Stackable 24 1/10/25 GE SFP28 downlink ports; 715 WAC power supply; supports
StackPower+, StackWise-1 and C9300X-NM network modules.
C9300X-24Y
Stackable 48 Multigigabit Ethernet (100 Mbps or 1/2.5/5/10 Gbps) UPOE+ ports; PoE
budget of 590 W with 1100 WAC power supply; supports StackPower+, StackWise-1T
and C9300X-NM network modules.
C9300X-48HX
Stackable 48 Multigigabit Ethernet (100 Mbps or 1/2.5/5/10 Gbps) ports; 715 WAC
power supply; supports StackPower+, StackWise-1T and C9300X-NM network
modules.
C9300X-48TX
Front Panel Components

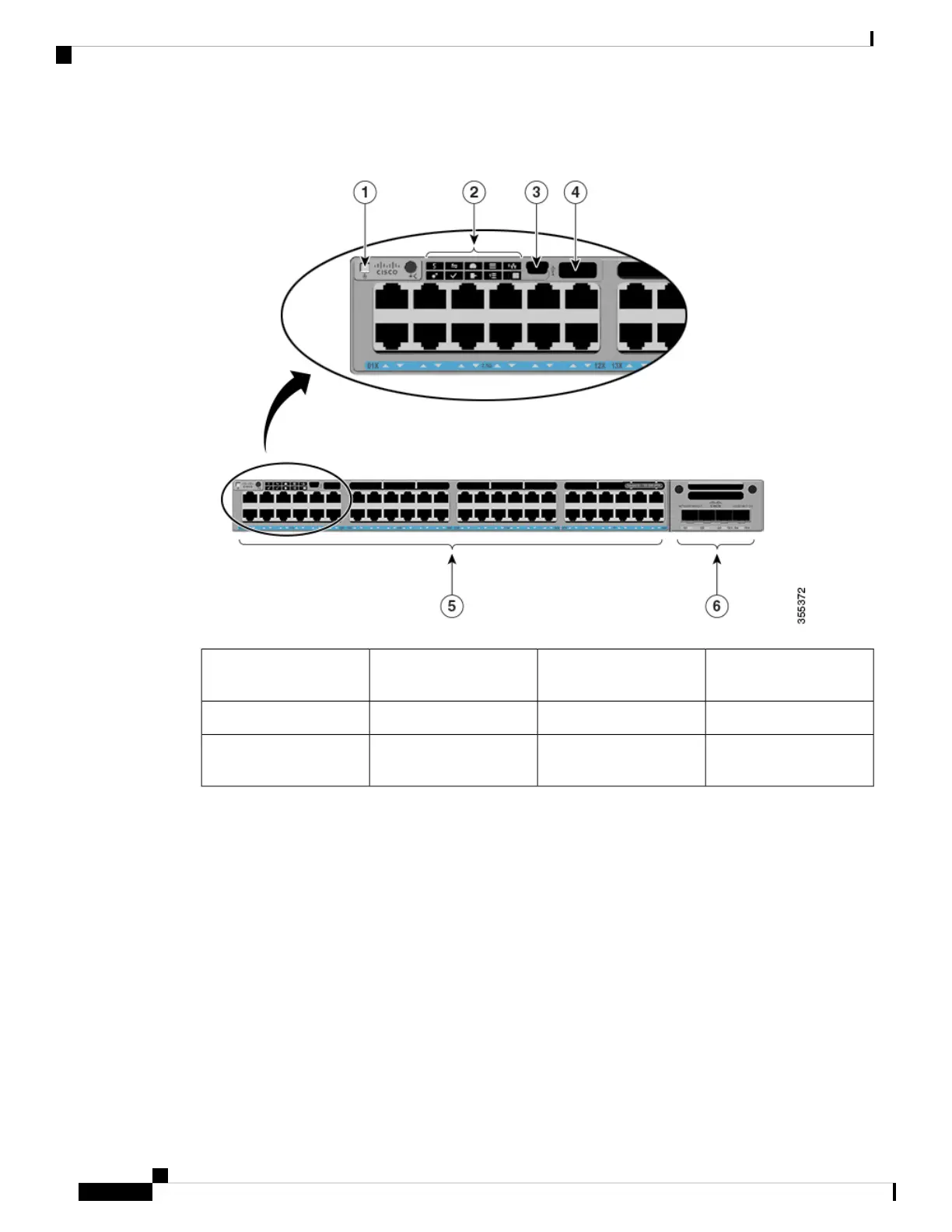

Front Panel Components of a Cisco Catalyst 9300 Series Switch
• 12, 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
4
Product Overview
Front Panel Components

Cisco Catalyst C9300-24U Specifications

General

Model	C9300-24U
Device Type	Switch
Enclosure Type	Rack-mountable
DRAM	8 GB
Flash	16 GB
Stacking Bandwidth	480 Gbps
Max Stacking Number	8
PoE Budget	1440W
MAC Address Table Size	32, 000 entries
Power Redundancy	Yes
Uplink Interfaces	4 x 10G SFP+
Routing Protocol	OSPF, EIGRP, BGP, IS-IS, RIP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, SSH, Telnet
Features	Quality of Service (QoS), Access Control List (ACL), VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1x
Dimensions	17.5 in x 17.5 in x 1.7 in
Operating Temperature	0 to 45°C
Ports	24 x 10/100/1000 (UPOE)
Weight	14.99 lbs
