Cisco Catalyst C9300-24U User Manual

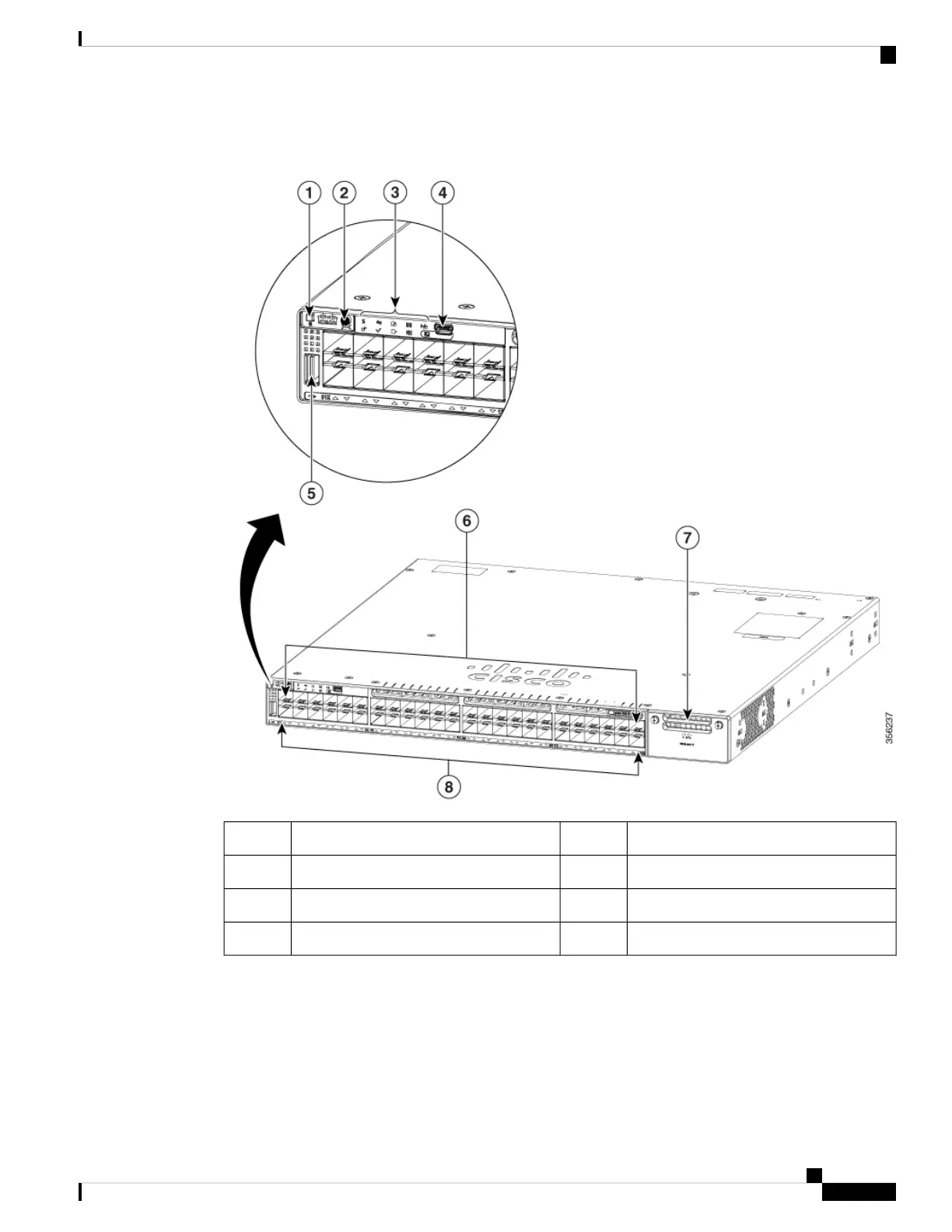

Figure 3: Front panel components of C9300-48S
USB Type A storage port5Beacon LED (UID button)1
10 M/100 M/1000 M SFP ports6Mode button2
Uplink network module slots7Status LEDs3

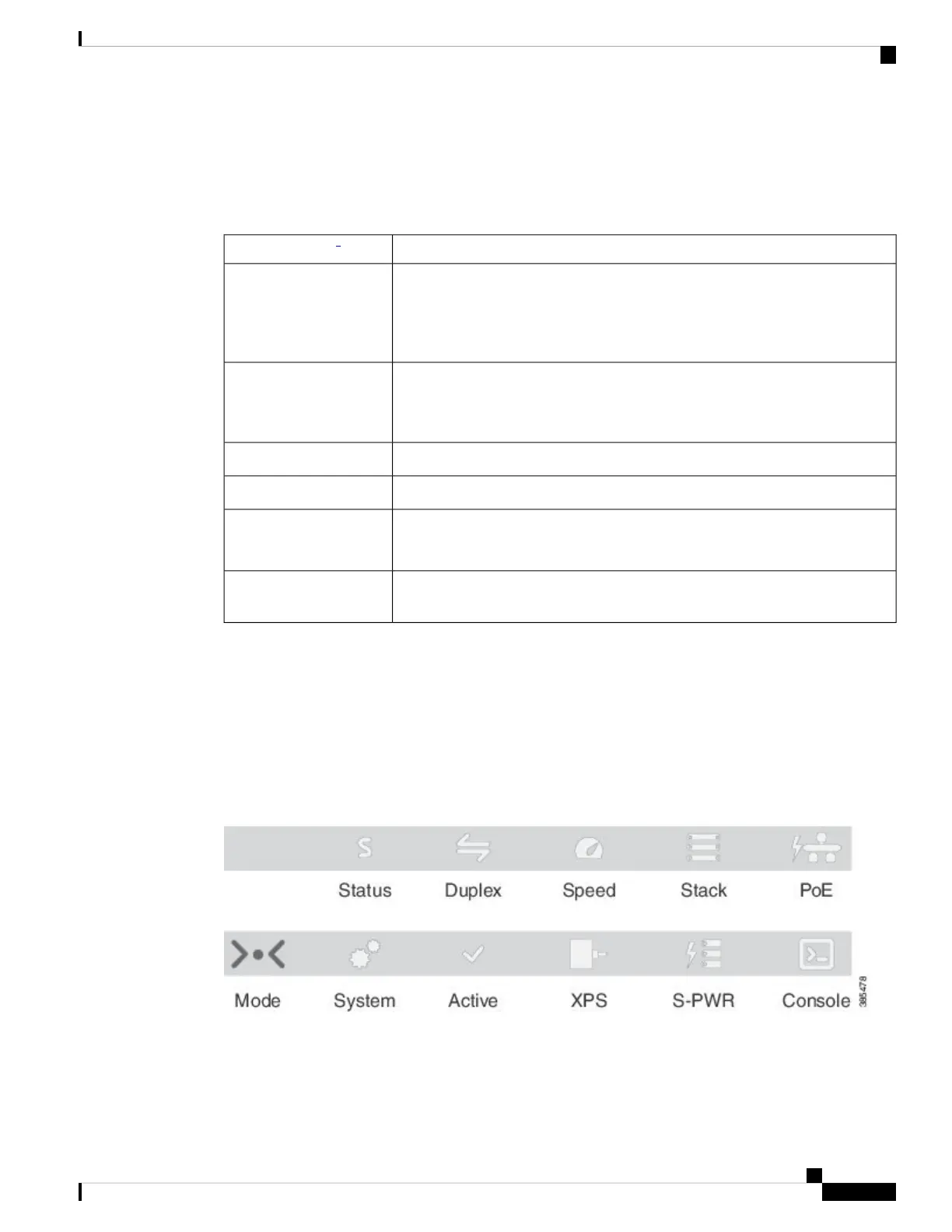

Port LEDs8USB mini-Type B (console) port4
Front panel components of a Cisco Catalyst 9300L Series Switch
• 12, 24 or 48 downlink ports of one of these types:
• 10 M/100 M/1000 M
• 1 GE/10 GE/25 GE SFP28
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
7
Product Overview
Front Panel Components

Cisco Catalyst C9300-24U Specifications

General

Model	C9300-24U
Device Type	Switch
Enclosure Type	Rack-mountable
DRAM	8 GB
Flash	16 GB
Stacking Bandwidth	480 Gbps
Max Stacking Number	8
PoE Budget	1440W
MAC Address Table Size	32, 000 entries
Power Redundancy	Yes
Uplink Interfaces	4 x 10G SFP+
Routing Protocol	OSPF, EIGRP, BGP, IS-IS, RIP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, SSH, Telnet
Features	Quality of Service (QoS), Access Control List (ACL), VLAN
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1x
Dimensions	17.5 in x 17.5 in x 1.7 in
Operating Temperature	0 to 45°C
Ports	24 x 10/100/1000 (UPOE)
Weight	14.99 lbs
