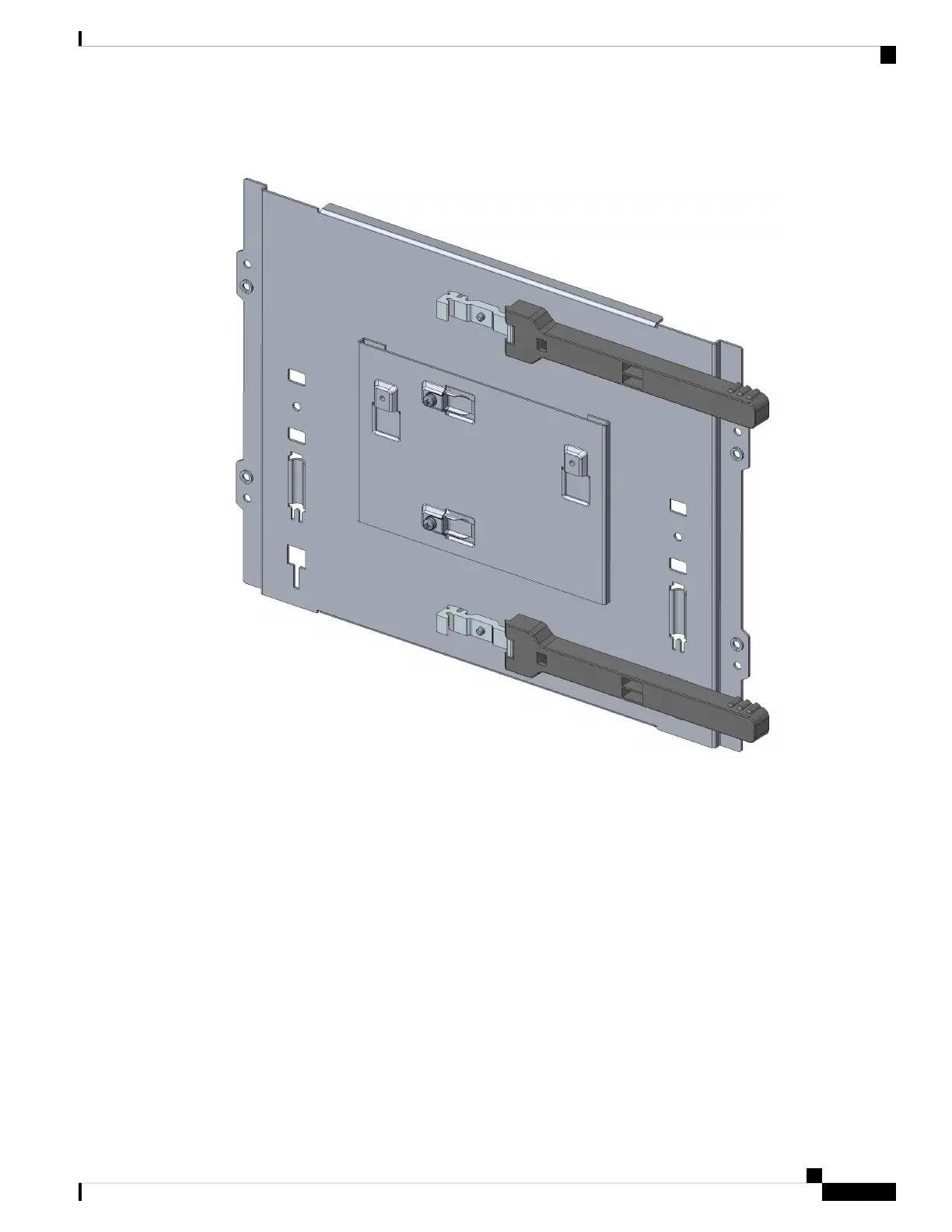

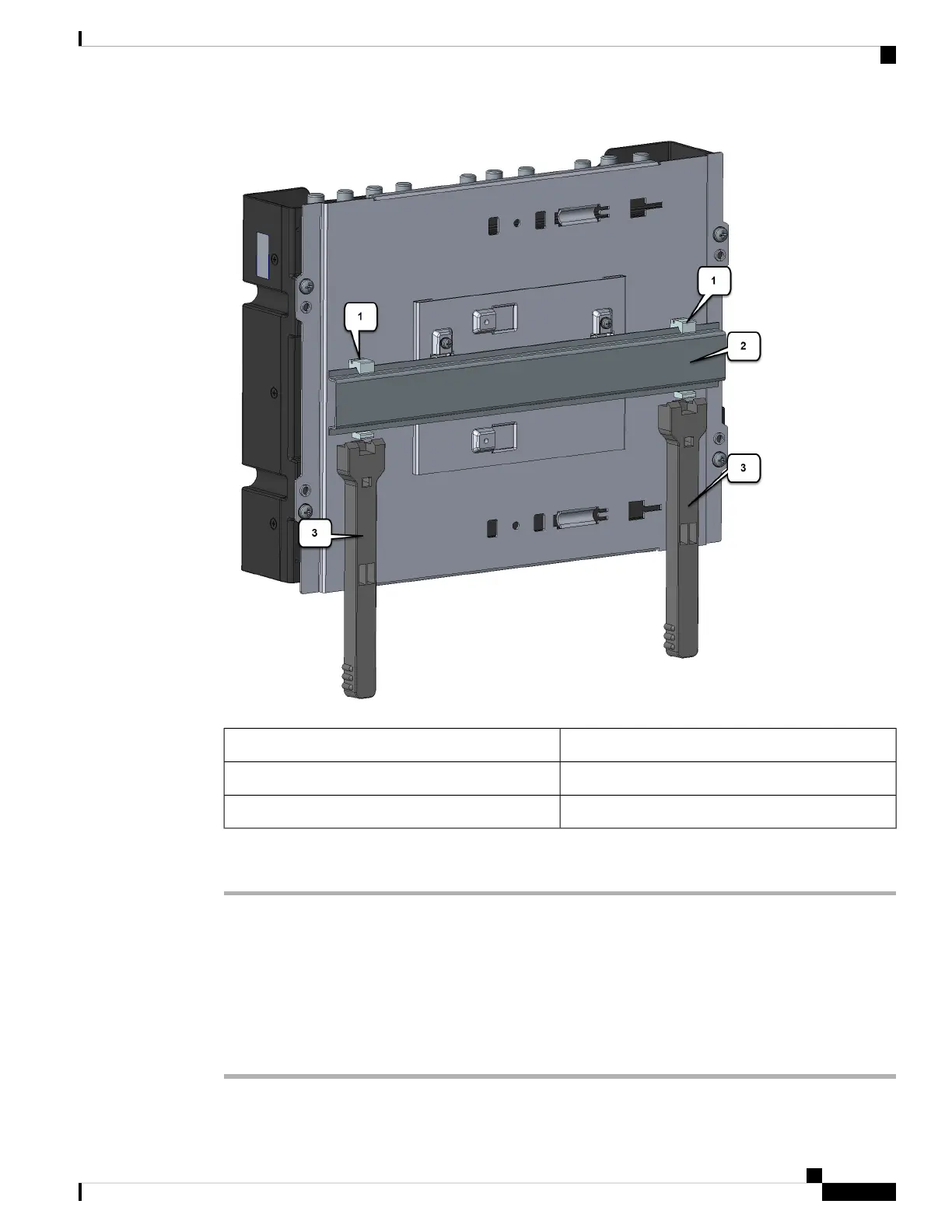

Clamps1
Din Rail2
Plastic Latches3
Procedure
Step 1 Position the router so that the clamps (1) on the DIN rail bracket hook onto the top edge of the DIN rail (2). The
weight of the product can rest on the hook temporarily while the plastic latches are secured.
Step 2 Pull down the plastic latches (3) at the same time and position the DIN rail bracket so that the top and bottom
edges of the DIN rail are within the clamps.
Step 3 Release the plastic latches after the DIN rail is firmly within the clamps to secure it. The router is now installed
in the DIN rail.
Step 4 To remove the router from the DIN rail, reverse the procedure.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
31
Installing the Router
Attaching the Bracket to the DIN Rail
