NotesAntenna SpecificationsPIDAntenna
Antennas will require proper
TNC to SMA adapters.
Location services supported
only in domains with GNSS
coverage.
Antenna Type: Multi-Element
Connectors: Connectors: LTE
(2x) TNC (m)
GNSS SMA (m)
Wi-Fi (2x) RP-TNC (m)
ANT-5-4G2WL2G1-O5-in-1 (LTE, Wi-Fi, and
GNSS)
Vehicle Mount/Fixed
Infrastructure
—Antenna Type: Multi-Element
Connectors: LTE (4x) SMA (m)
GNSS (1x) SMA (m)
Wi-Fi (2x) RP-SMA (m)
ANT-7-5G4WL2G1-O7-in-1 (LTE, Wi-Fi, and
GNSS)
Low-Profile
Transportation
Requires ground plane (5G
ANTM GD) with nonmetallic
surface deployment.
Antenna Type: Multi-Element
Connectors: LTE (4x) SMA (m)
GNSS (1x) SMA (m)
Wi-Fi (4x) RP-SMA (m)
5G-ANTM-O-4-B9-in-1 (LTE, Wi-Fi, and
GNSS)
Low-Profile
Transportation
Supported Extension Bases and Cables
Extension BaseCable PIDAntenna PIDAntenna Type
LTE-AE-MAG-SMACAB-L240-10-SM-TM
CAB-L240-15-SM-TM
CAB-L240-20-SM-TM
LTE-ANTM2-SMA-DIndoor (cellular)
TBDTBDW-ANTM2050D-RPSMA=Indoor (Wi-Fi)
—CAB-L240-10-SM-NMANT-4G-OMNI-OUT-N
ANT-5G-OMNI-OUT-N
Outdoor
(cellular)

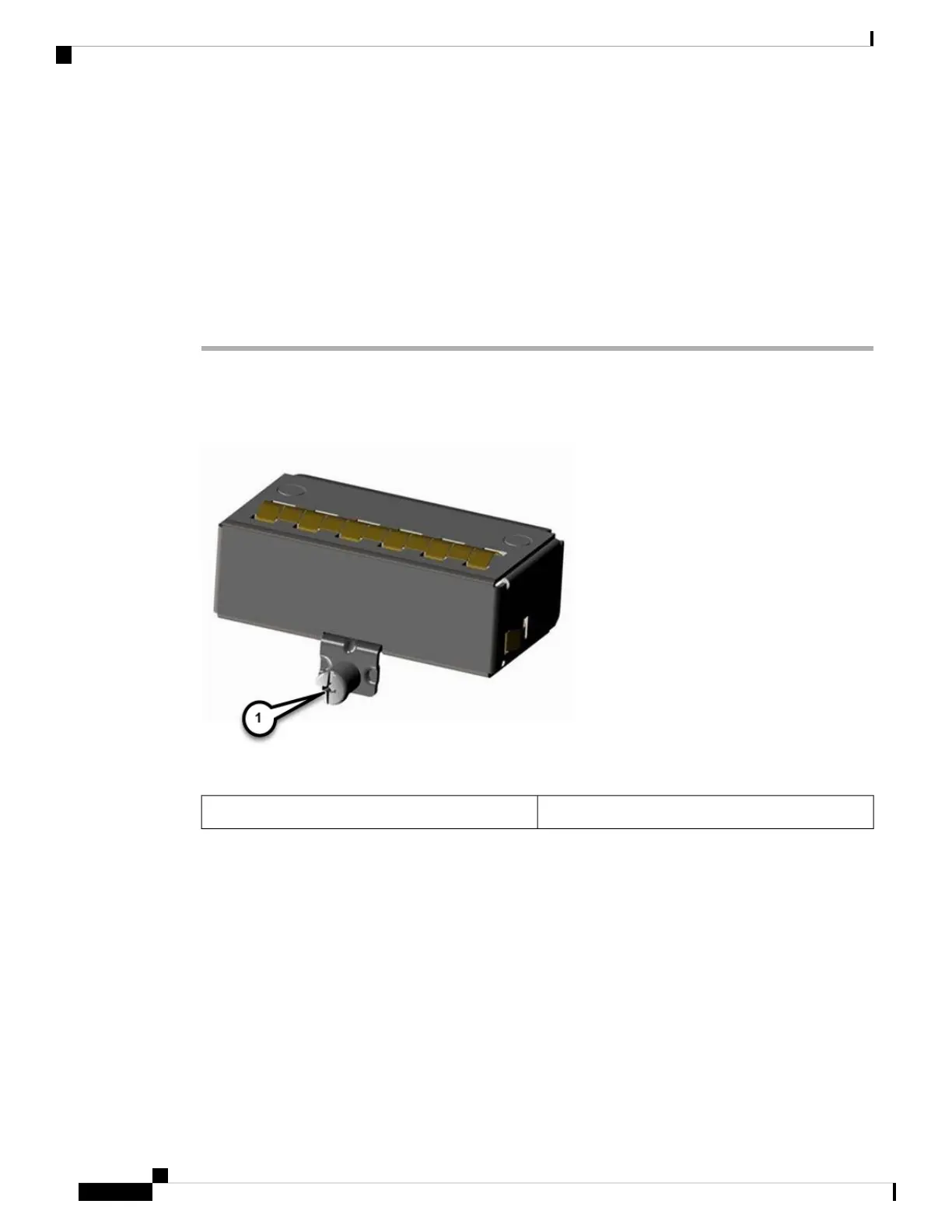

Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
44
Antenna Selection and Installation
Supported Extension Bases and Cables
