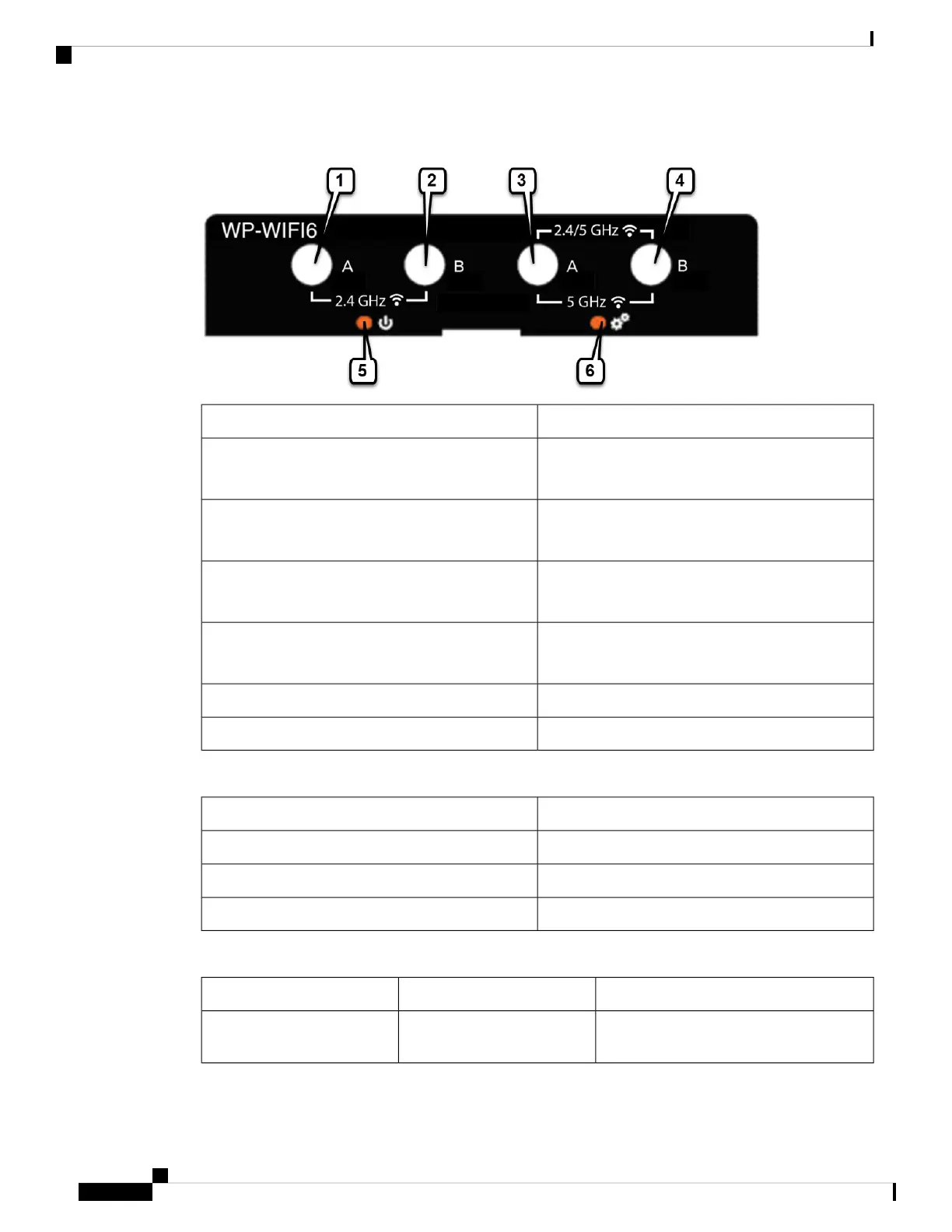

Figure 20: WIM Front Panel
DescriptionItem
WLAN ANT 0
2.4 GHz
1
WLAN ANT 1
2.4 GHz
2
WLAN ANT 0
2.4/5 GHz
3
WLAN ANT 1
2.4/5 GHz
4
Enable LED5
Wi-Fi LED6
Table 12: Enable LED
DescriptionLED Status
No PowerOff
Power is on, module is not yet functionalYellow
Module is fully functionalGreen
Table 13: Wi-Fi LED
DescriptionStatus TypeLED Status
Normal operating condition, but no wireless
client associated.
Association StatusSolid Green
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
58
Cisco Wi-Fi Interface Module (WIM)
Overview
