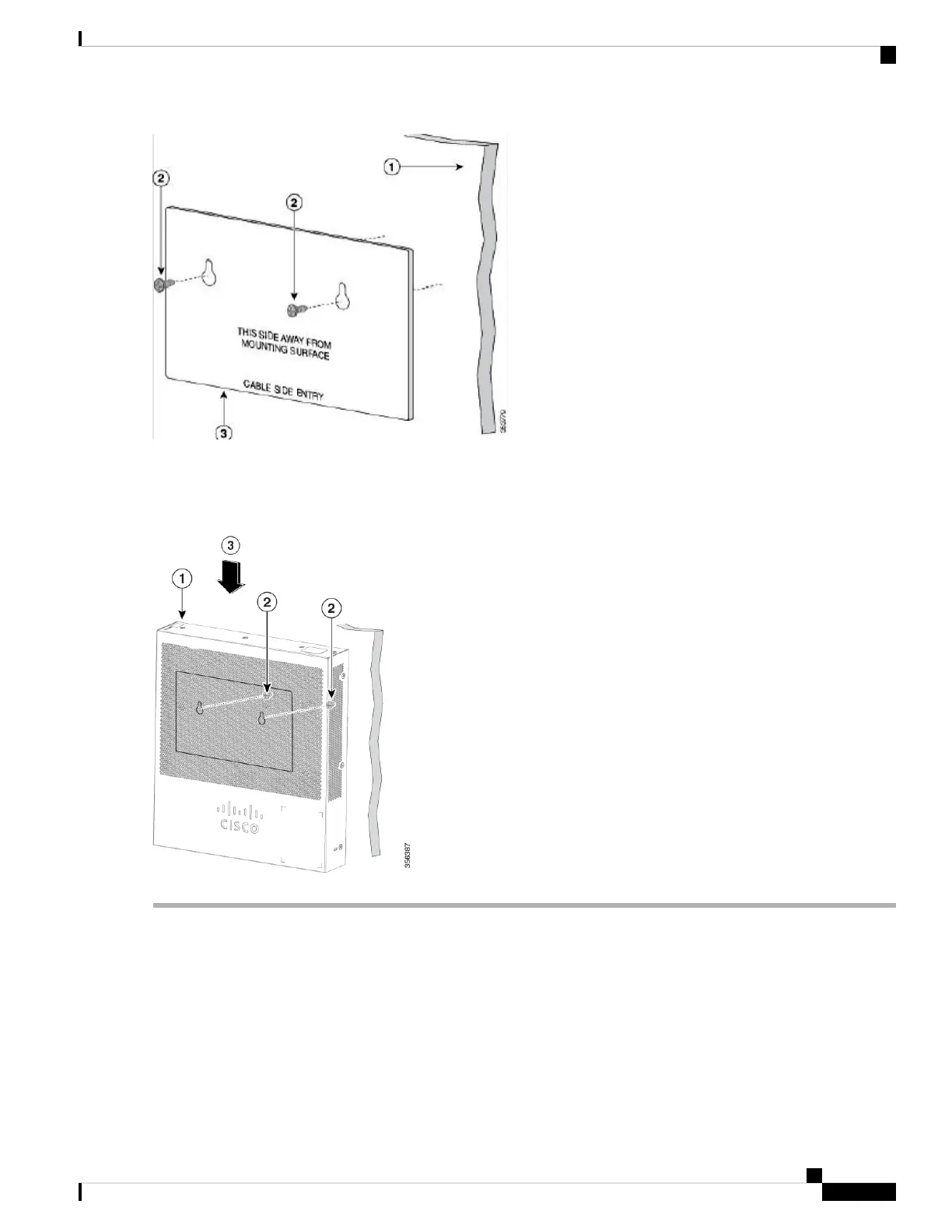

Step 7 Remove the screw template from the wall.
Step 8 Place the switch onto the mounting screws, and slide it down until it locks in place.Wall-mounting an 8-port switch
Figure 4 Wall-mounting an 8-port switch
Stacking the Switches
A stack can have multiple devices in it. Any 10G port of the switch can be used for stacking.
By default, the ports on the switch function as regular Ethernet ports, except if you configure them to do
stacking. You cannot mix the stack speeds between the switches or ports.
Get To Know Your Switch
5
Get To Know Your Switch
Stacking the Switches

Cisco CBS350-24P-4G Specifications

General

Model	CBS350-24P-4G
Category	Switch
Ports	24 x 10/100/1000 PoE+ ports
PoE Budget	195W
Switching Capacity	56 Gbps
Power Supply	Internal
MAC Address Table Size	16K
Jumbo Frame Support	9KB
Memory	256 MB
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% non-condensing
Uplink Ports	4 x 1G SFP
Management	Managed
