Cisco CIS330 User Manual

11
Connections for an HDTV
To use the set-top with an HDTV, you must make one of the following connections
to view the HD content. Refer to your TV user guide and the cabling diagrams in this
guide for more detailed connection information.
Notes:
• The labeling on your set-top or HDTV may vary slightly.
• Some cables shown in the connection diagrams may not be included with this set-top.
DVI
HDMI
Audio/VideoVideo
VideoVideo
Audio
AudioAudio
YPbPrRGB
HDTV
Connections

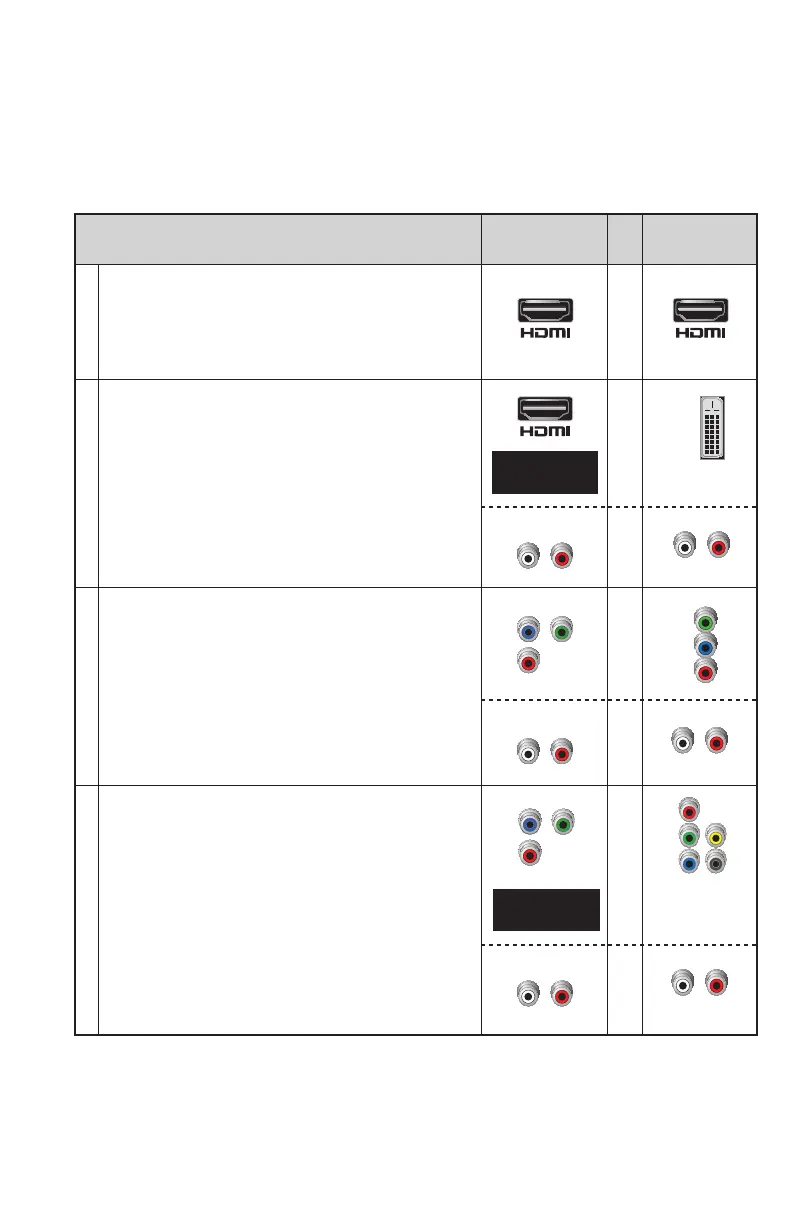

Required Connections to an HDTV (use one)
Set-Top
Connections
AUDIO
OUT
LR
DVI
LR
Pb Y
Pr
Pr
Pb
Y
B
R
G
V
H
The HDMI connector provides both a digital video
and audio connection. See the connection diagram
on page 14 for an example.
Note: The HDMI port on the TV must support high-
bandwidth digital content protection (HDCP).
Some HDTVs have only RGB or RGB-HV
connectors. If you have one of these HDTVs, you
need an RGB adapter. Check with your service
provider for information about acquiring an RGB
adapter, or you can purchase the adapter at your
local electronics supplier.
The YPbPr connectors provides high-definition
component video signals to an HDTV.
Note: Set the HD mode and select the output video
format (480i, 480p, 720p, 1080i) on the set-top that
matches the full capabilities of your HDTV.
See the connection diagram on page 16 for an
example.
The HDMI connector provides the connection to an
HDTV with a DVI input. If your HDTV has a Digital
Visual Interface (DVI) connector, you need an HDMI-
to-DVI adapter, and you need to connect a separate
audio connection.
Note: The DVI port on the TV must support high-
bandwidth digital content protection (HDCP).
See the connection diagram on page 15 for an
example.
Adapter
Needed
AUDIO
OUT
LR
Adapter
Needed
Pb Y
Pr
AUDIO
OUT
LR
LR
LR
