4-23
Cisco 850 Series and Cisco 870 Series Access Routers Hardware Installation Guide
OL-5331-01
Chapter 4 Router Cabling Procedures
Connecting the AC Adapter

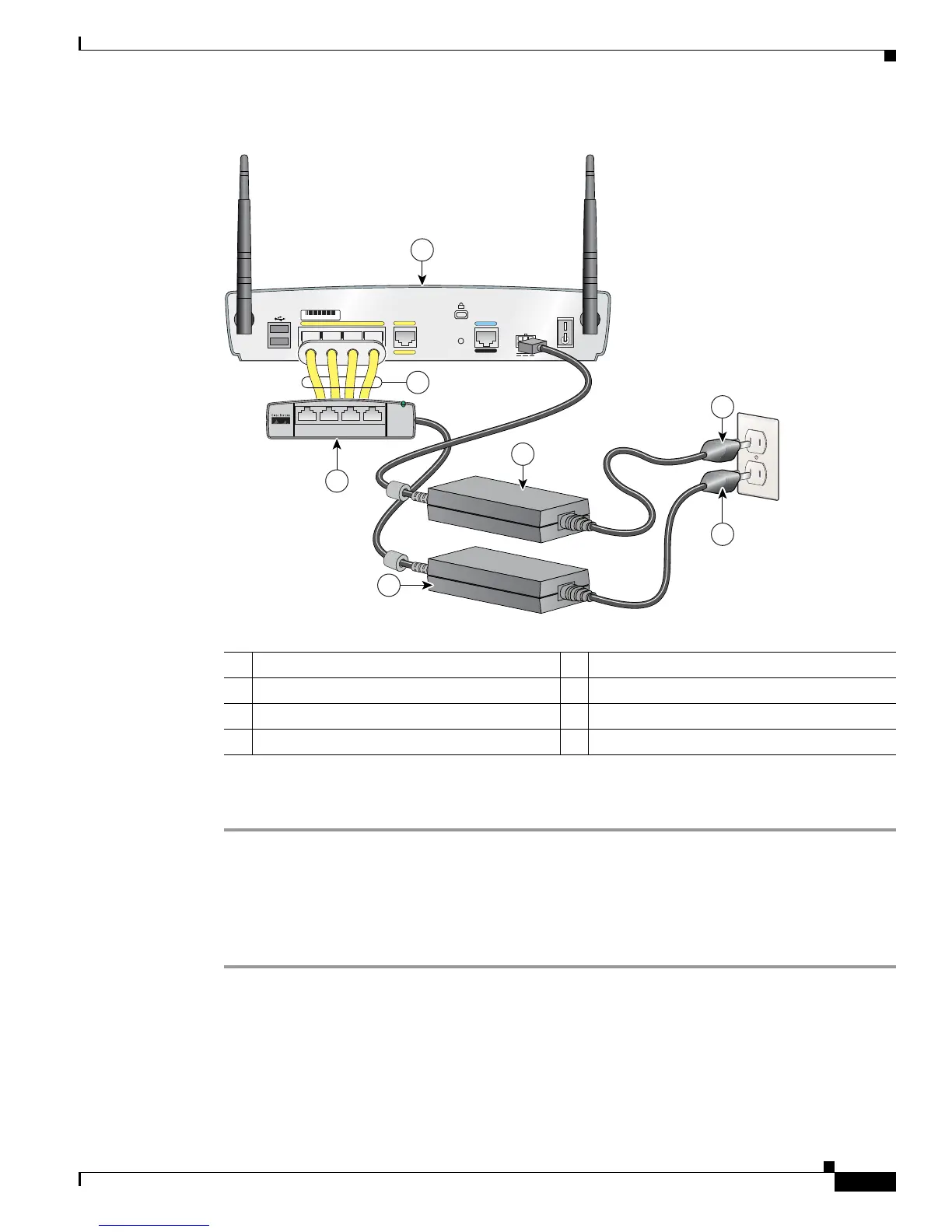

Figure 4-19 Connecting AC Adapters to the Router and to the PoE Module
Perform the following steps to connect power to the router and to the PoE module:
Step 1
Connect one end of the power supply cable to the input jack of the router.
Step 2
Connect the other end of the power supply cable to the router power adapter.
Step 3
If a PoE module is connected to the router, connect the PoE module power adapter to the PoE module.
Step 4
Plug the power cord of the router power adapter into an electrical outlet. If a PoE module is connected
to the router, plug the power cord for the PoE module into an electrical outlet.
1 Router 5 Router power adapter
2 Ethernet cables on the PoE module 6 PoE module power adapter plug
3 PoE module 7 Router power adapter plug
4 PoE module power adapter
122351
+5
,+
12 V
D
C
LE
F
T
R
IG
H
T
/ P
R
IM
A
R
Y
L
A
N
F
E
0F
E
1F
E
2
F
E
3
Cisco 871W
C
O
N
S
O
L
E
A
U
X
R
E
S
E
T
1
0
W
A
N
F
E
4
1
2
4
6
To LAN
3210
PWR
3
5
7
SN: XXXNNNNXXXX
