Cisco CISCO871-K9 - 871 Integrated Services Router

A-5
Cisco 850 Series and Cisco 870 Series Access Routers Hardware Installation Guide
OL-5331-01
Appendix A Specifications
Power Output Connector Pinouts
Power Output Connector Pinouts

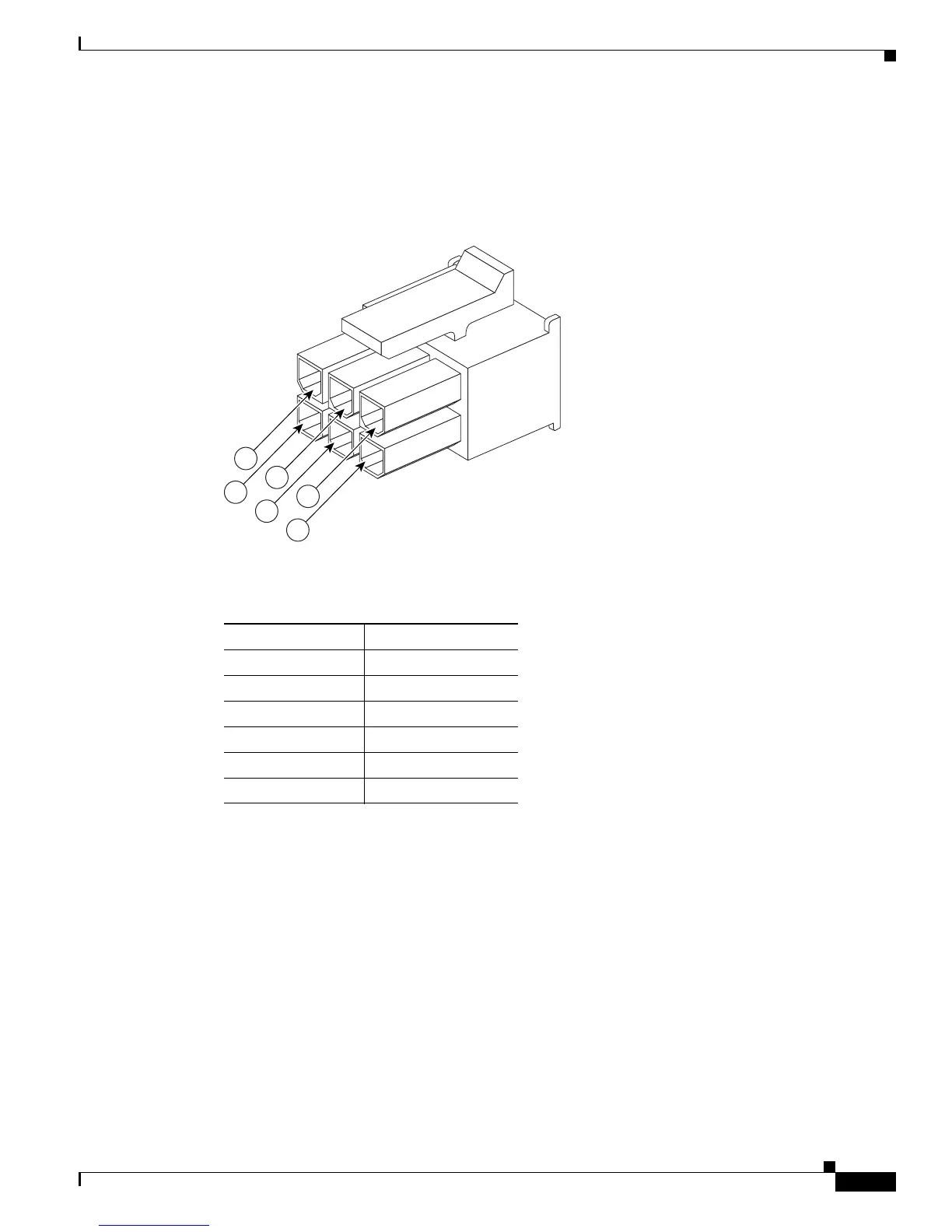

Figure A-1shows the power output connector and pin numbers.
Figure A-1 Power Connector Ports
Table A-6 provides pinouts for the power output connector for the power supply.
Cable Specifications
This section provides specifications for the following Ethernet cables, which you might need to provide:
• Straight-through cable
• Crossover cable
Because of the autocrossover (autosensing) function, both straight-through and crossover cables can be
used for the Ethernet LAN port.
246677
1
2
3
4
5
6
Ta b l e A-6 Power Output Connector Pinouts
Pin Signal
1 Ground
2 Ground
3 Ground
4 +12V
5 +5V
6 +5V
