Installing the Rear Cover on the Cisco ONS 15310-MA

78-18339-02

Install the Rear Cover on the ONS 15310-MA

Step 3 Align the holes on the rear cover with the hexagonal standoffs (Figure 2 and Figure 3).

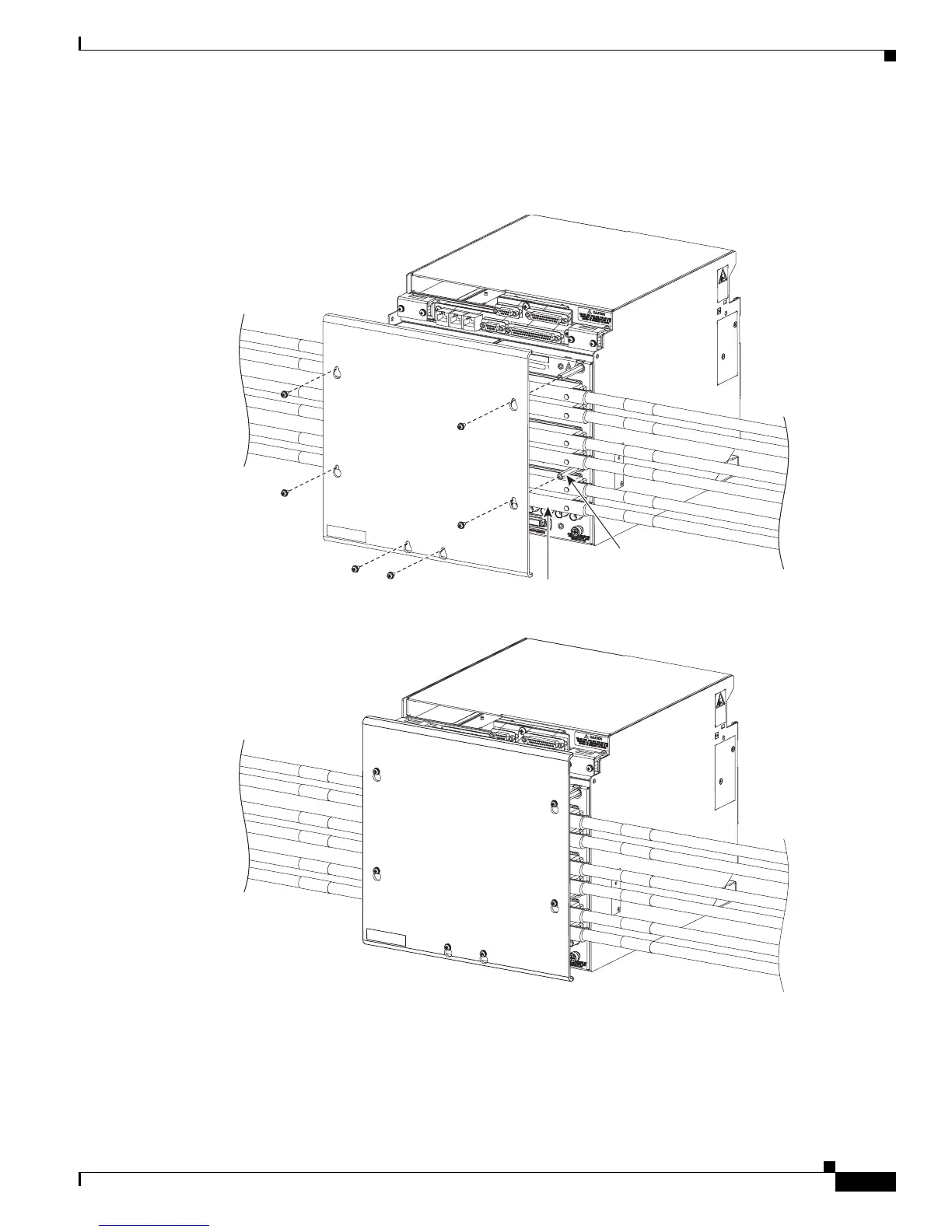

Figure 2 Rear Cover Aligned to the 6-32x1.75 Hexagonal Standoffs on the ONS 15310-MA

back plane

240843

1/4-inch hexagonal

standoff, 6-32x1.75

DS1 plug

connector
