Cisco CW9166D1-ROW - Page 19

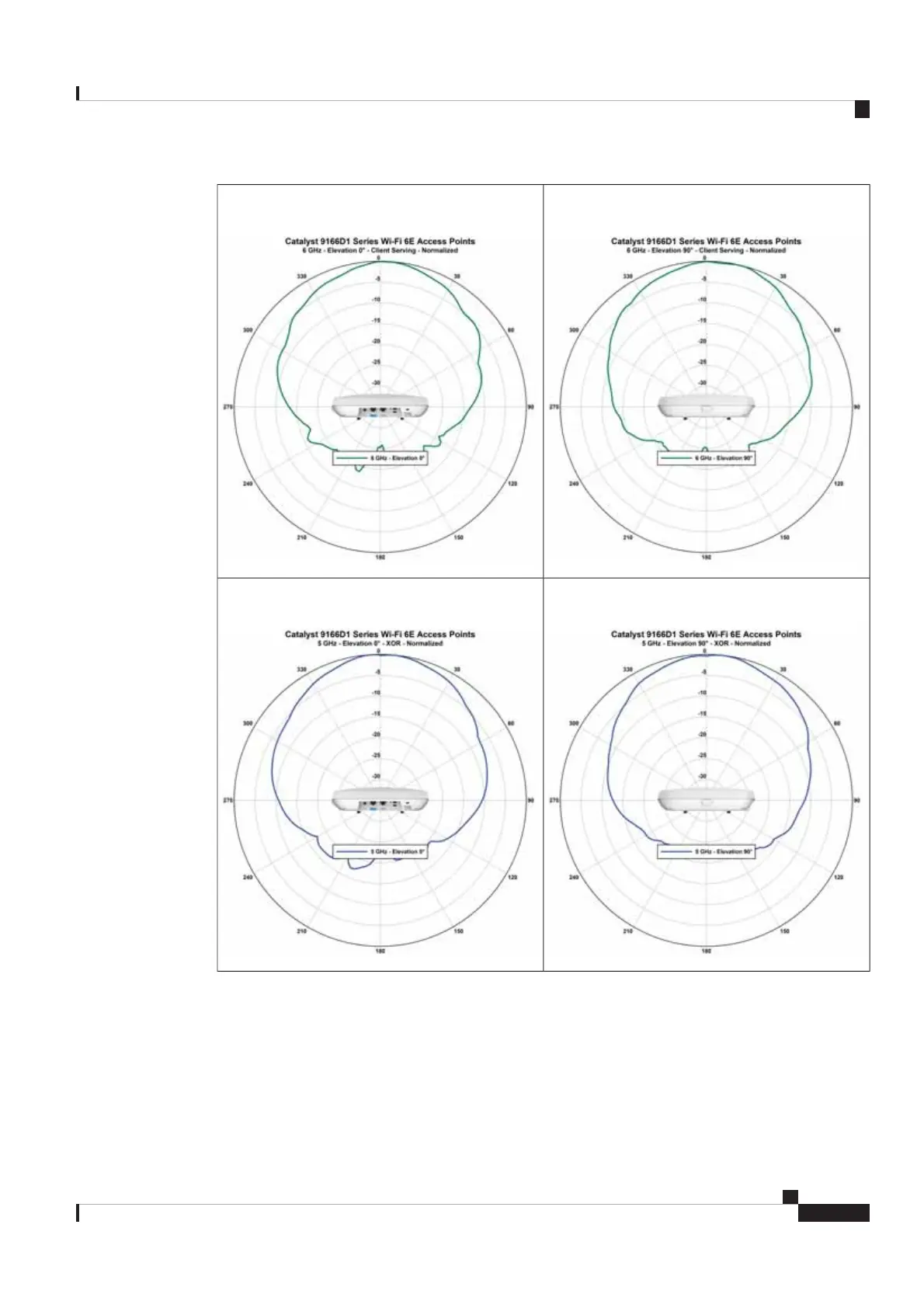

Figure 8: CW9166D1 - Client-Serving Normalized Radiation Pattern
(6-GHz Elevation)
Figure 7: CW9166D1 - Client-Serving Normalized Radiation Pattern
(6-GHz Azimuth)
Figure 10: CW9166D1 - XOR Normalized Radiation Pattern (5-GHz
Elevation)
Figure 9: CW9166D1 - XOR Normalized Radiation Pattern (5-GHz
Azimuth)
Cisco Catalyst Wireless 9166D1 Series Wi-Fi 6E Access Point Hardware Installation Guide
11
Hardware Features
CW9166D1 (Integrated Directional Antenna) Radiation Patterns
