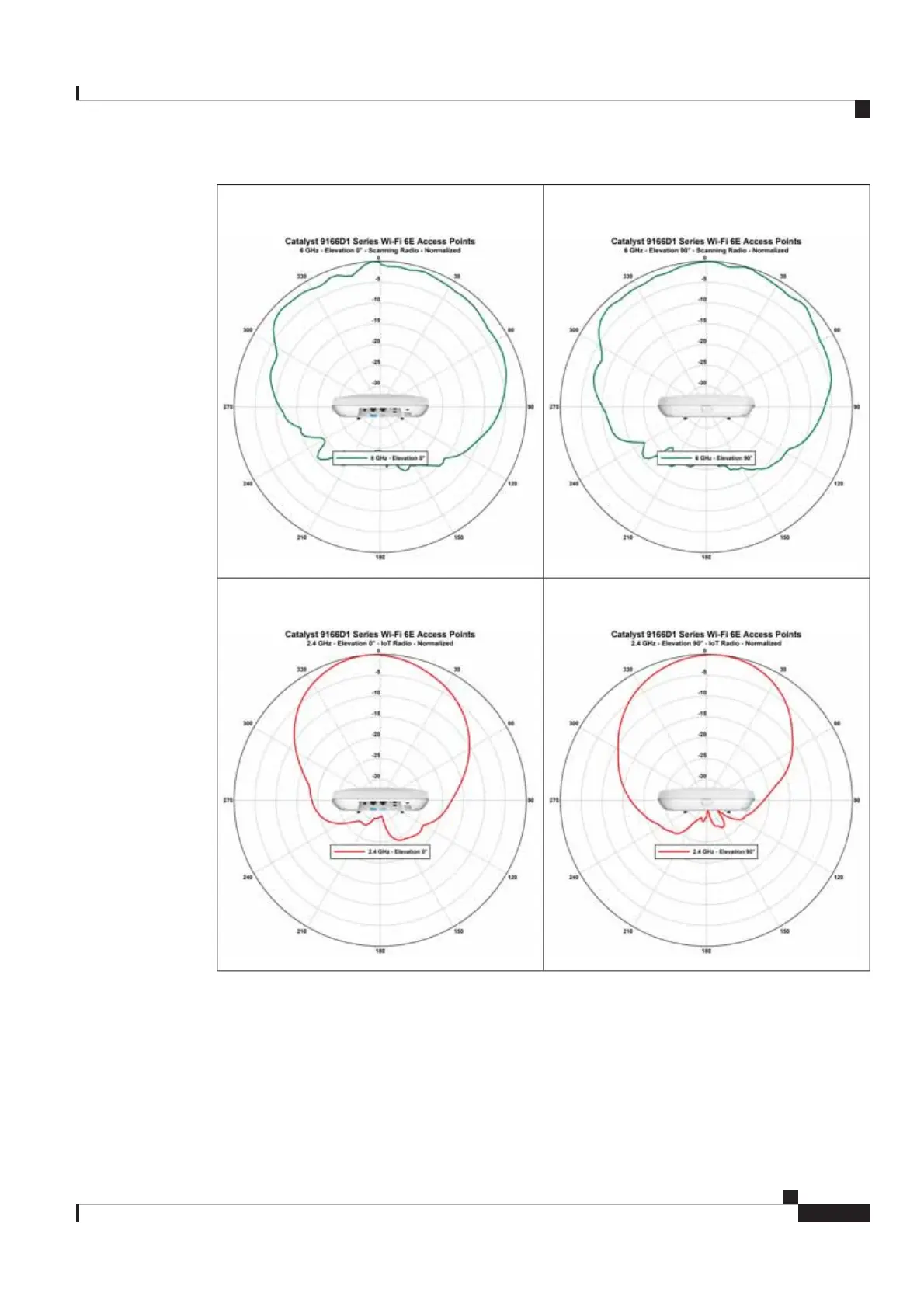

Figure 16: CW9166D1 - Scanning Radio-Normalized Radiation
Pattern (6-GHz Elevation)
Figure 15: CW9166D1 - Scanning Radio-Normalized Radiation
Pattern (6-GHz Azimuth)
Figure 18: CW9166D1 - IoT (BLE) Antenna-Normalized Radiation
Pattern (2.4-GHz Elevation)
Figure 17: CW9166D1 - IoT (BLE) Antenna-Normalized Radiation
Pattern (2.4-GHz Azimuth)
Cisco Catalyst Wireless 9166D1 Series Wi-Fi 6E Access Point Hardware Installation Guide
13
Hardware Features
CW9166D1 (Integrated Directional Antenna) Radiation Patterns
