Back Panel Description

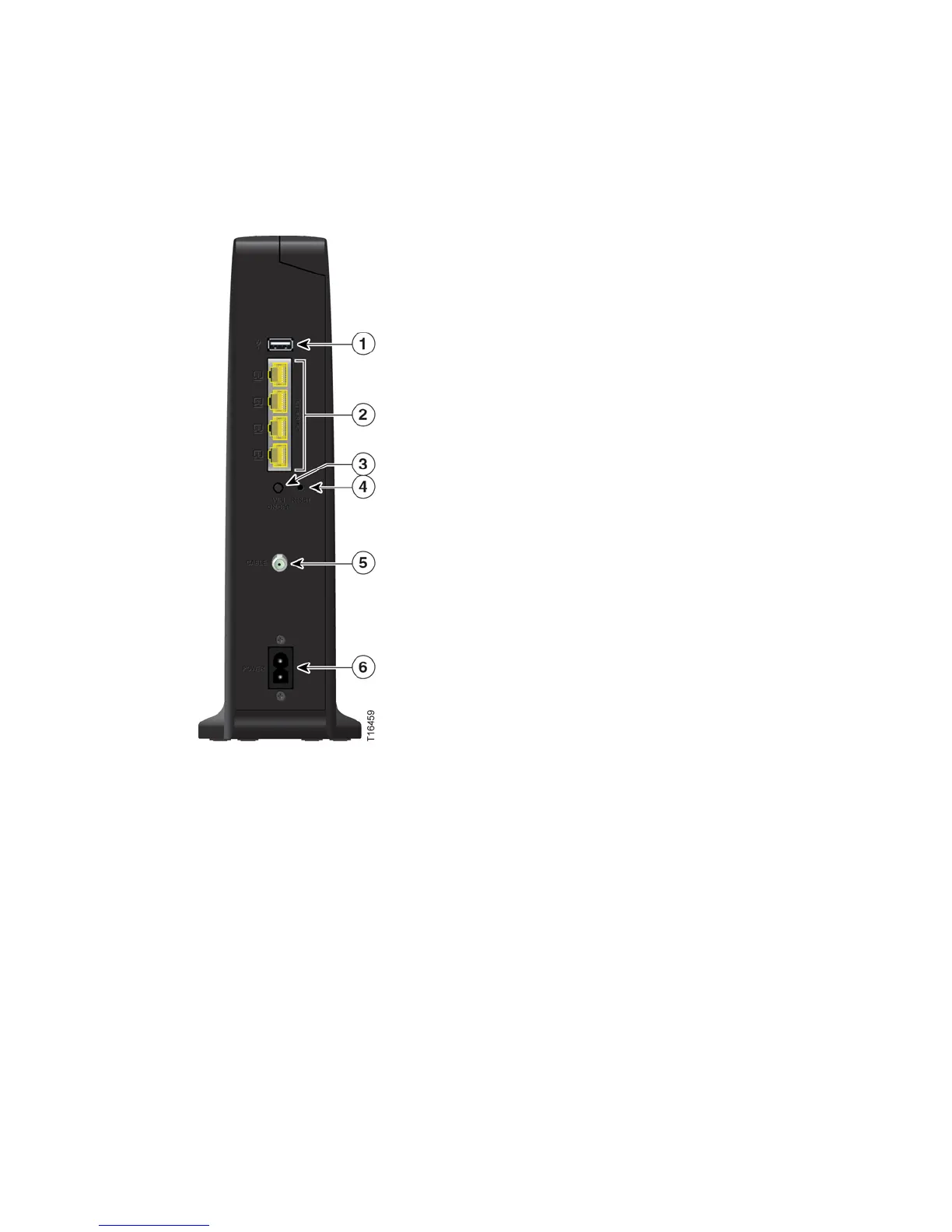

The following illustration identifies the back panel components on the residential
gateway. Descriptions for each component follow the illustration.
Important: Do not connect your PC to both the Ethernet and USB ports at the same
time. Your residential gateway will not function properly if both the Ethernet and
USB ports are connected to your PC at the same time.
1 USB (Optional for some models)—Connects to selected devices. For models that
support USB, the default is one USB port
2 ETHERNET—Four RJ-45 Ethernet ports connect to the Ethernet port on your PC
or your home network
3 WIFI ON/OFF—This button may be administratively disabled by your service
provider. When this button is enabled, momentarily pressing this switch once for
1 to 2 seconds will turn off the 2.4G transmitter when both Wi-Fi transmitters are
on. Momentarily pressing it a second time turns off the 5G transmitter.
Momentarily pressing it a third time turns on both the 2.4G and 5G transmitters
