Cisco EPC3925 User Manual

4021192 Rev B 39
Configure Wireless Settings

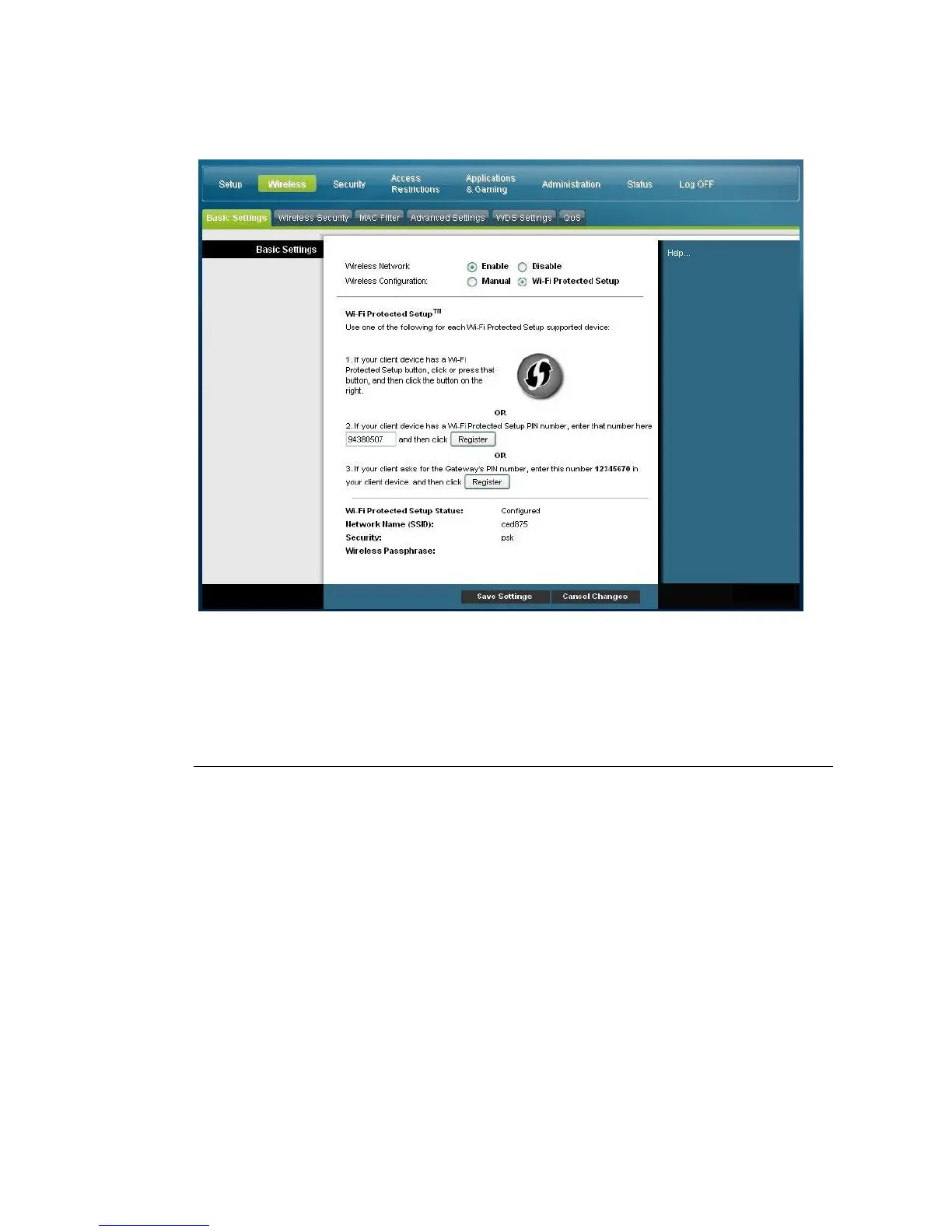

Wireless Configuration Wi-Fi Protected Setup Example
Wireless Configuration Wi-Fi Protected Setup Page Description
Use the descriptions and instructions in the following table to configure the basic
settings for Wi-Fi Protected Setup for the residential gateway. After you make your
selections, click Save Settings to apply your changes or Cancel Changes to cancel.
Section
Field Description
Basic Settings
Enable or Disable the wireless network
Wi-Fi Protected Setup Configuration
The Wi-Fi Protected Setup feature automatically configures an
encryption-secured, wireless network. To use Wi-Fi Protected Setup, you
must have at least one other device that supports Wi-Fi Protected Setup
in your network. After you have configured your Wi-Fi Protected Setup
devices, you can manually configure other devices.
WPS Push Button Setup (Option 1)
Press the Wi-Fi Protected Setup button on the Basic Wireless Settings
page or the button on the back panel of the gateway to register a wireless
client with the gateway. Press the Wi-Fi Protected Setup software button
on the client side at the same time as the Wi-Fi Protected Setup button is
pushed on the gateway. The connection will be automatically set up.

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
