Cisco EPC3925 User Manual

78 4021192 Rev B
Manage the Gateway
Manage the Gateway
Administration > Management
The Administration Management page allows the network’s administrator to
manage specific gateway functions for access and security. Select the Management
tab to open the Administration Management page.

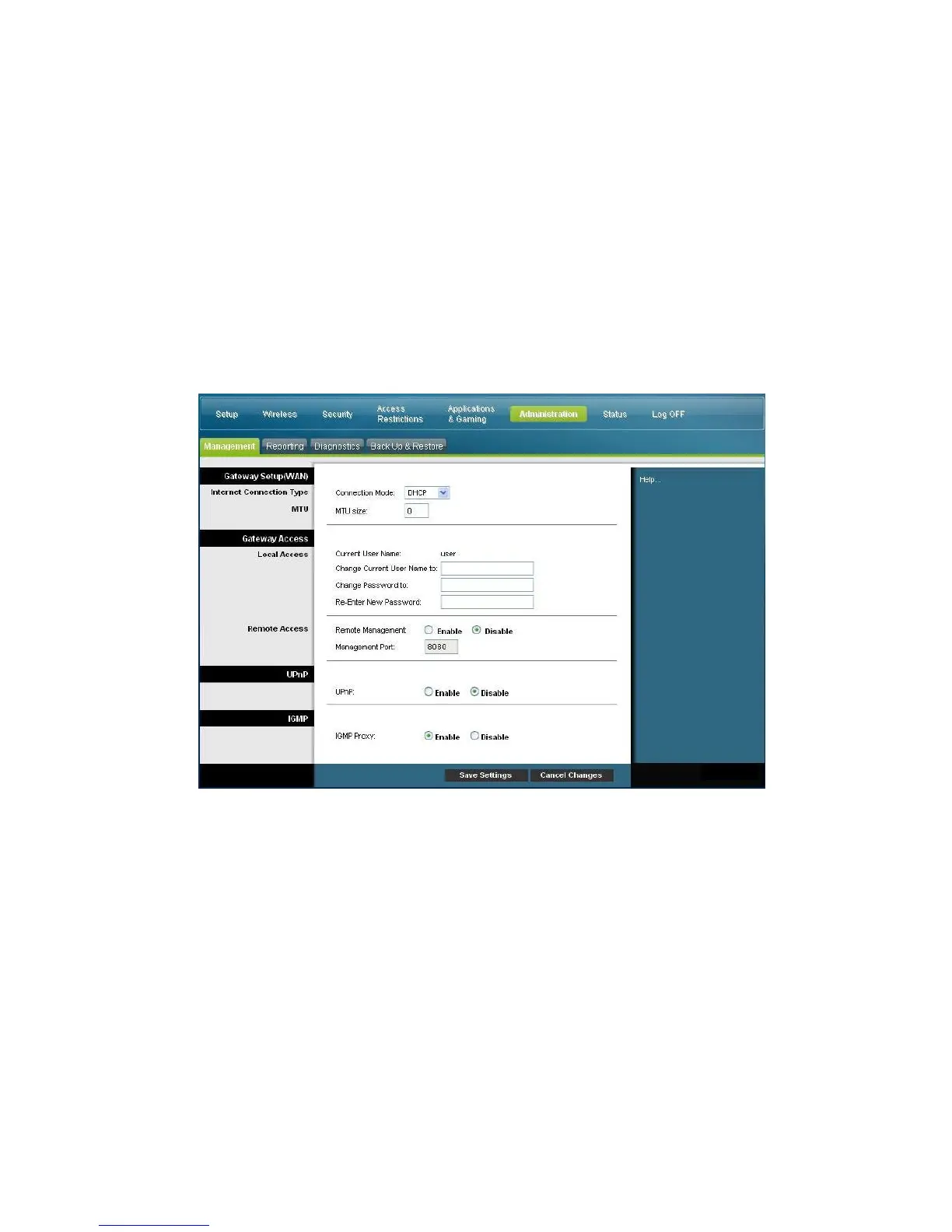

Important: The following page displays when DHCP (factory default) is the
Connection Mode. The page that displays when Static IP is selected is shown and
described later in this section.
Administration Management Page Description
Use the descriptions and instructions in the following table to configure the
administration management for the residential gateway when DHCP or Static IP
connection mode is selected. After you make your selections, click Save Settings to
apply your changes or Cancel Changes to cancel.

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
