Cisco EPC3925 User Manual

62 4021192 Rev B
Configure Security
View Log

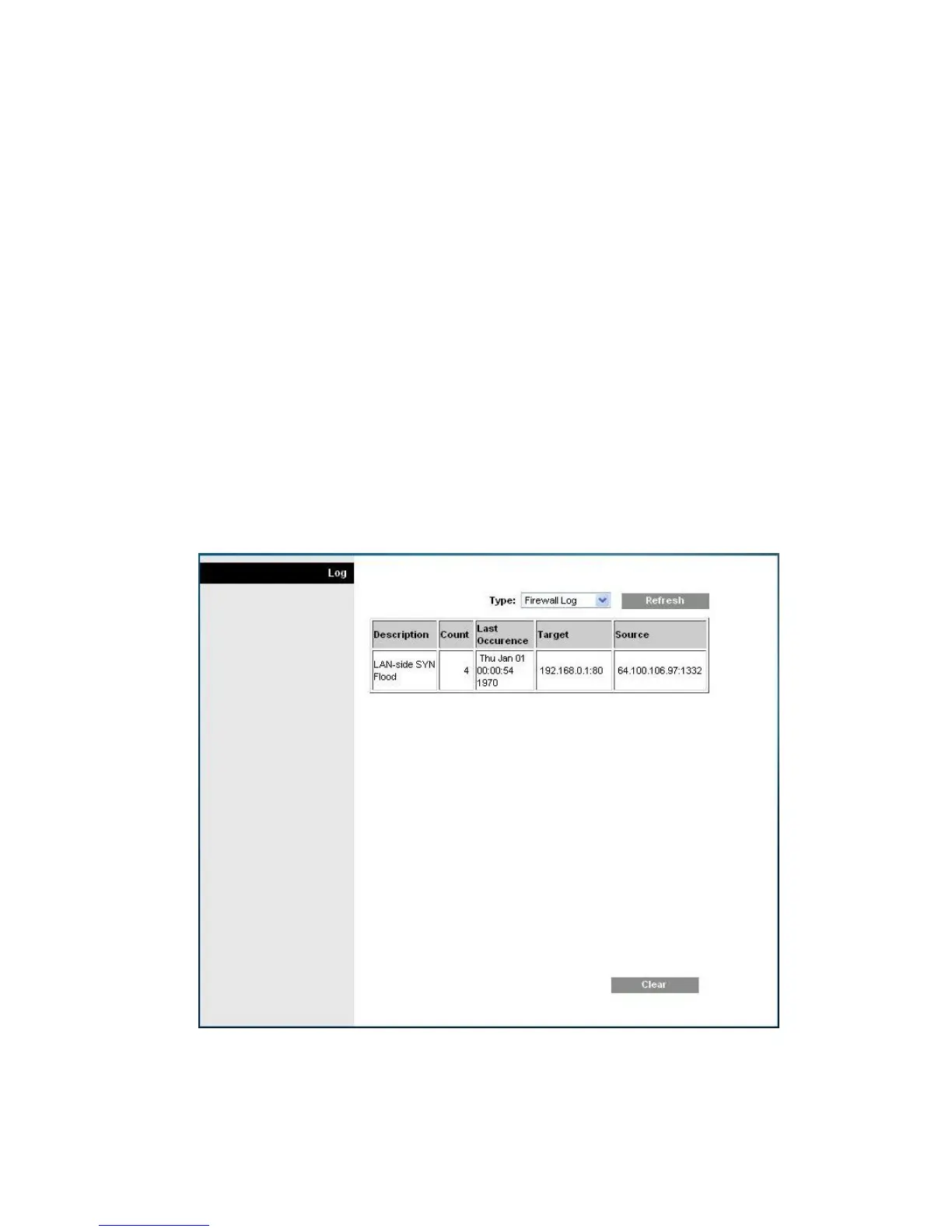

The Security VPN View Log page shows events captured by the firewall. The log
displays the following items:
 Description of the event
 Number of events that have occurred
 Last occurrence of an event
 Target and source addresses
You can view the following logs from this page:
 Access log
 Firewall log
 VPN log
 Parental Control log
Click Clear to clear the log data.

Cisco EPC3925 Specifications

General

Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi	Yes
Modulation	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Frequency band	2.4 GHz
Networking standards	IEEE 802.11n
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Input current	1.5 A
Input voltage	15 V
Input frequency	50/60 Hz
Power requirements	230 VAC
Power consumption (typical)	17 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Voice codecs	G.711, G.723, G.726, G.728, G.729, G.729A

Weight and Dimensions

Weight	430 g
Dimensions (WxDxH)	176 x 145 x 45 mm
