Cisco Explorer 8640HDC - Front Panel Controls and Display

3

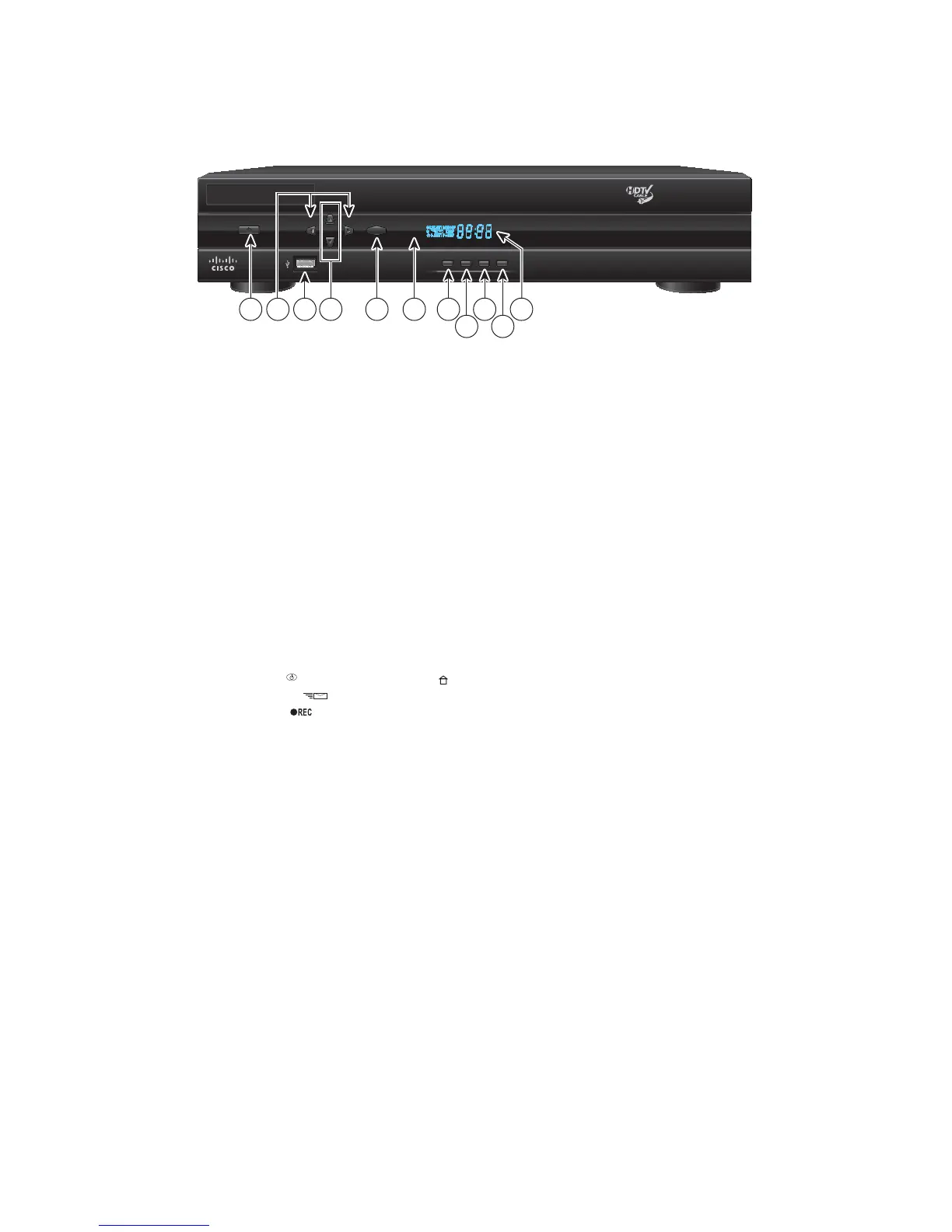

Front Panel
1 Power Turns the set-top on and o
2 VOL-, VOL+ Decreases and increases the volume
3 USB 2.0 Connects to external USB equipment approved by your service provider, software controlled
4 CH+, CH- Scrolls up and down through the channels
5 Select Accesses your on-screen selection
6 IR Sensor Receives the infrared signal from the remote control
7 Guide Accesses on-screen services, such as the on-screen guide, video-on-demand, or pay-per-view
8 Info Displays a description of the selected program. This button is available from the on-screen menu
and while viewing a program
9 Exit Exit menus, the on-screen menu, and program information
10 List Displays the recorded list
11 Display Displays the selected channel number and time of day. The display shows the following:
• Power (
) • MoCA Link ( ) • 480i / 480P • 5.1
• Message (
) • HDTV • 720i / 720P
• Record (
) • Auto • 1080i / 1080P
Note: This illustration may vary from the actual product.
L AUDIO IN R VIDEO IN
POWER
SELECT
VOL+VOL-
CH+
CH-
LISTEXITINFOGUIDE
Explorer 8652HDC
T15393
1 3 5 6 7
8
9
10
4 11
2
