Statement 1025—Use Copper Conductors Only
Use copper conductors only.
Warning
After rack-mounting and grounding the Firepower 2100, follow these steps to connect cables, turn on power,
and verify connectivity.
The following figure shows the default configuration using a management computer connected to the inside
network. Your deployment may vary depending on your basic logical network connectivity, ports, addressing,
and configuration requirements.
Note

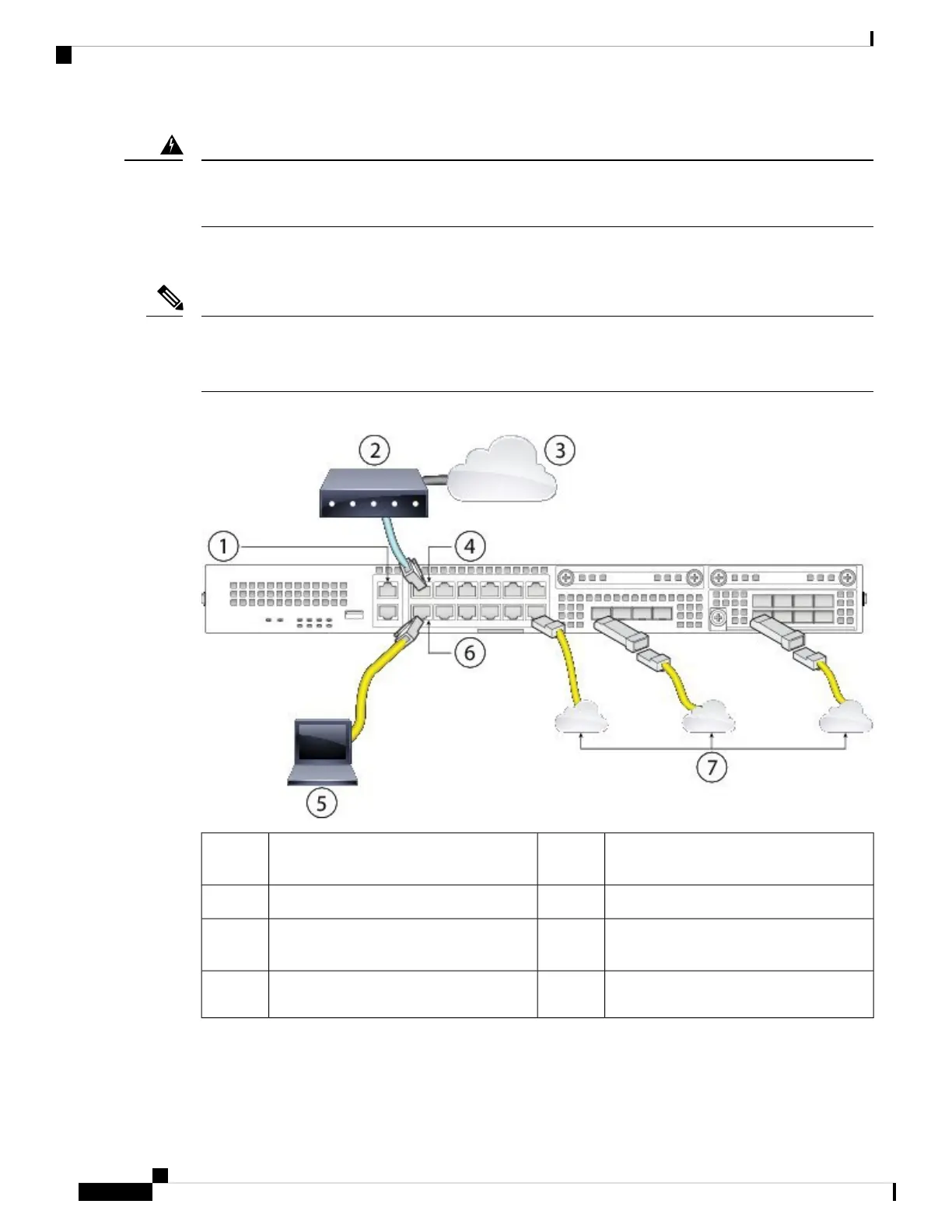

Figure 43: Connect Cables to Firepower 2100 Interfaces
WAN modem2(Alternative) Management 1/1
192.168.45.45
1
Ethernet 1/1 (outside, DHCP from modem)4Internet3
Ethernet 1/2 (inside 192.168.1.1)6Management computer (DHCP from inside
192.168.1.x)
5
Other data networks (SFP/SFP+
transceivers)
7
Cisco Firepower 2100 Series Hardware Installation Guide
58
Mount and Connect
Connect Cables, Turn on Power, and Verify Connectivity for Cisco Firepower Threat Defense
