Cisco Firepower 2130 Hardware Installation Guide

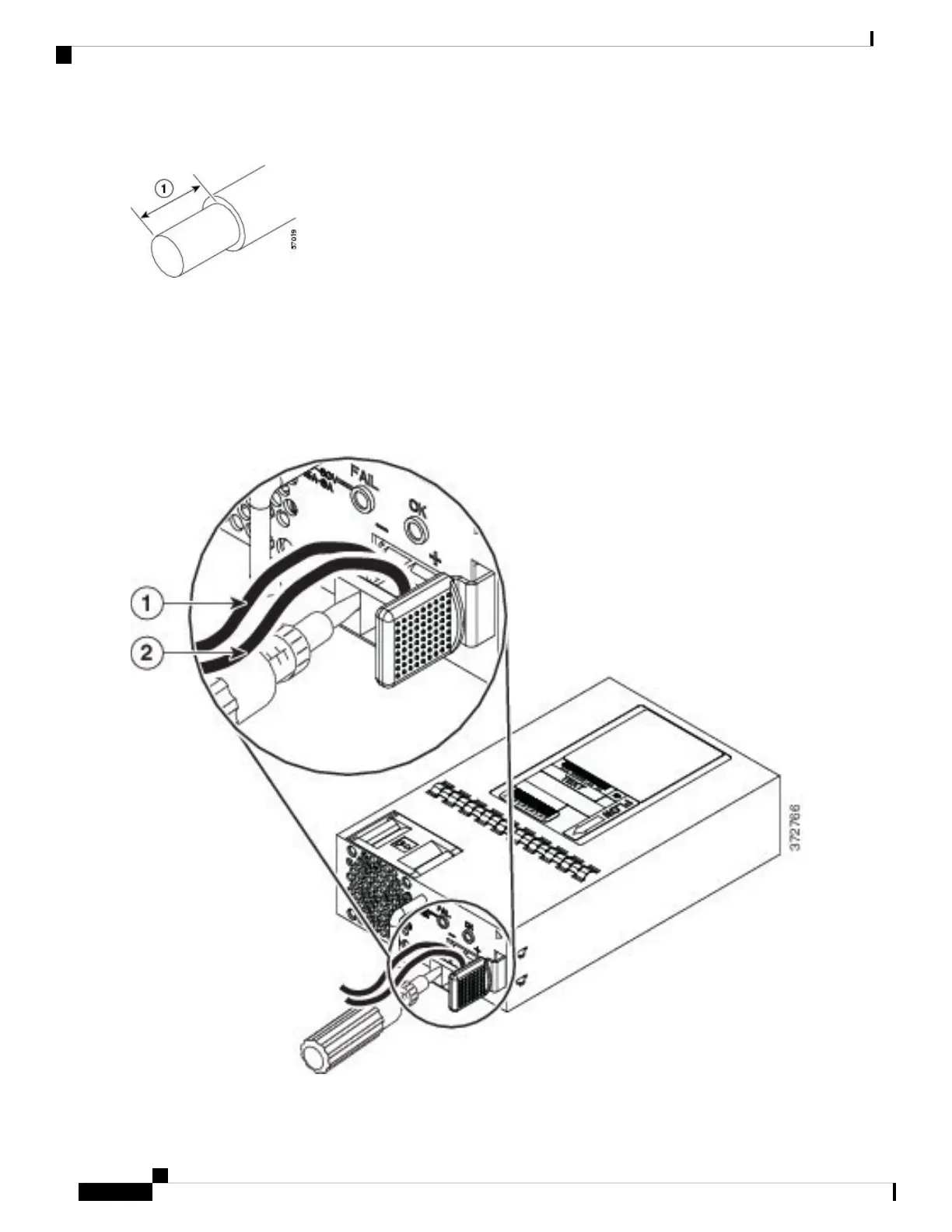

Figure 50: Stripped DC Input Source Wire
Step 4 Insert the exposed wire into the terminal block. Ensure that you cannot see any wire lead outside the plastic cover. Only
wires with insulation should extend from the terminal block.
Step 5 Use a screwdriver to tighten the terminal block captive screws.
Do not overtorque the terminal block captive screws. Make sure that the connection is snug, but the wire is not
crushed. Verify by tugging lightly on each wire to make sure that they do not move.
Caution
Figure 51: Tighten the Terminal Block Captive Screws
Cisco Firepower 2100 Series Hardware Installation Guide
74
Maintenance and Upgrade
Connect the DC Power Supply Module

Cisco Firepower 2130 Specifications

General

Form Factor	1 RU
Firewall Throughput (Application Visibility and Control AVC)	4 Gbps
RAM	16 GB
Storage	120 GB SSD
Interfaces	8 x 1GE
Power Supply	Dual, Hot-swappable
