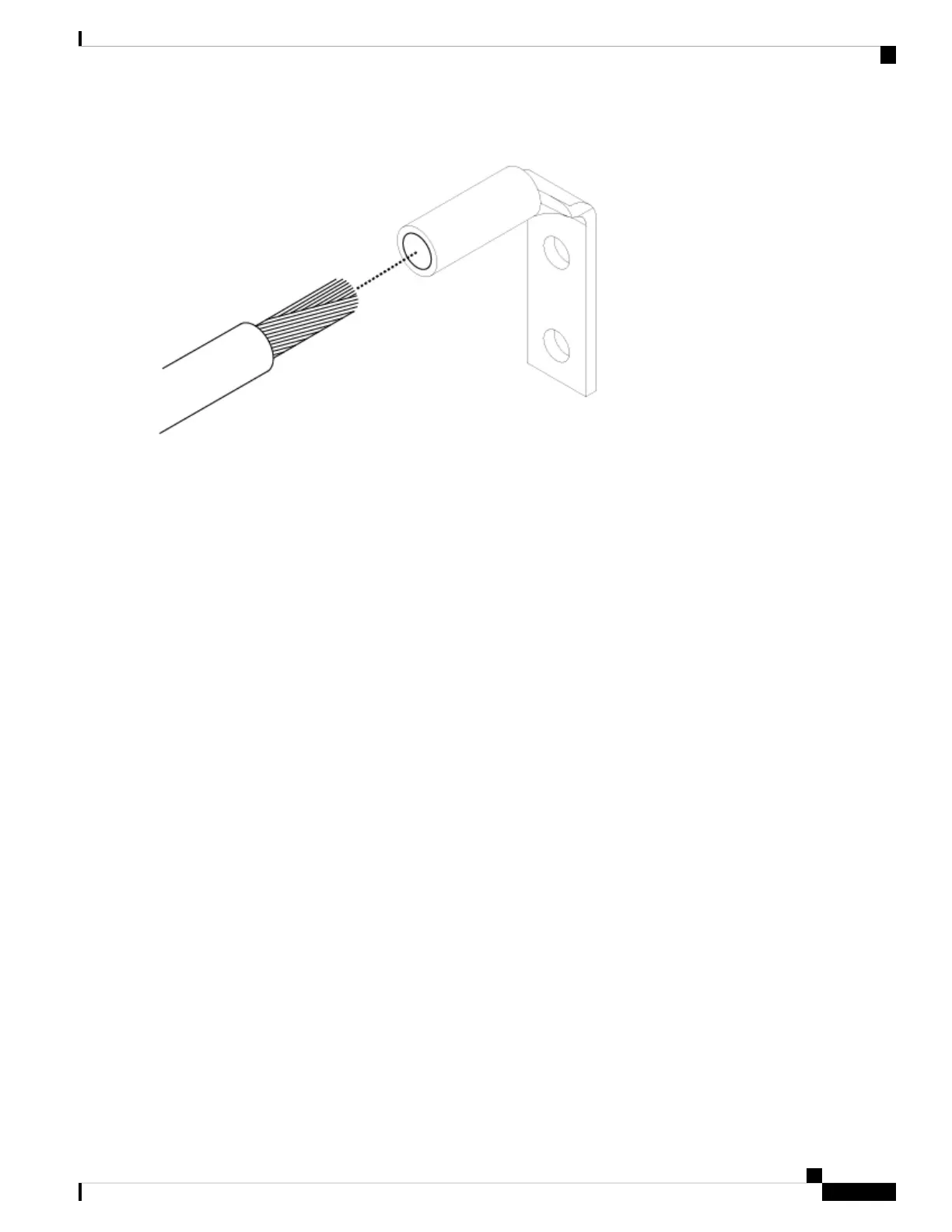

Figure 9: Insert the Cable into the Grounding Lug
Step 3 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 4 Remove the adhesive label from the grounding pad on the chassis.
Step 5 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the two screws
with washers through the holes in the grounding lug and into the grounding pad.
Rack-Mount and Ground the Chassis
11
Rack-Mount and Ground the Chassis
Ground the Chassis

Cisco Firepower 2130 Specifications

General

Form Factor	1 RU
Firewall Throughput (Application Visibility and Control AVC)	4 Gbps
RAM	16 GB
Storage	120 GB SSD
Interfaces	8 x 1GE
Power Supply	Dual, Hot-swappable
