Cisco Firepower 4100 User Manual

Make sure you have the correct firmware package and software version installed to support this network
module. For instructions on how to verify your firmware package version and to upgrade the firmware
if necessary, see the Cisco Firepower 4100/9300 FXOS Firmware Upgrade Guide. See Cisco Firepower
4100/9300 FXOS Compatibility for the software compatibility matrix.
Note

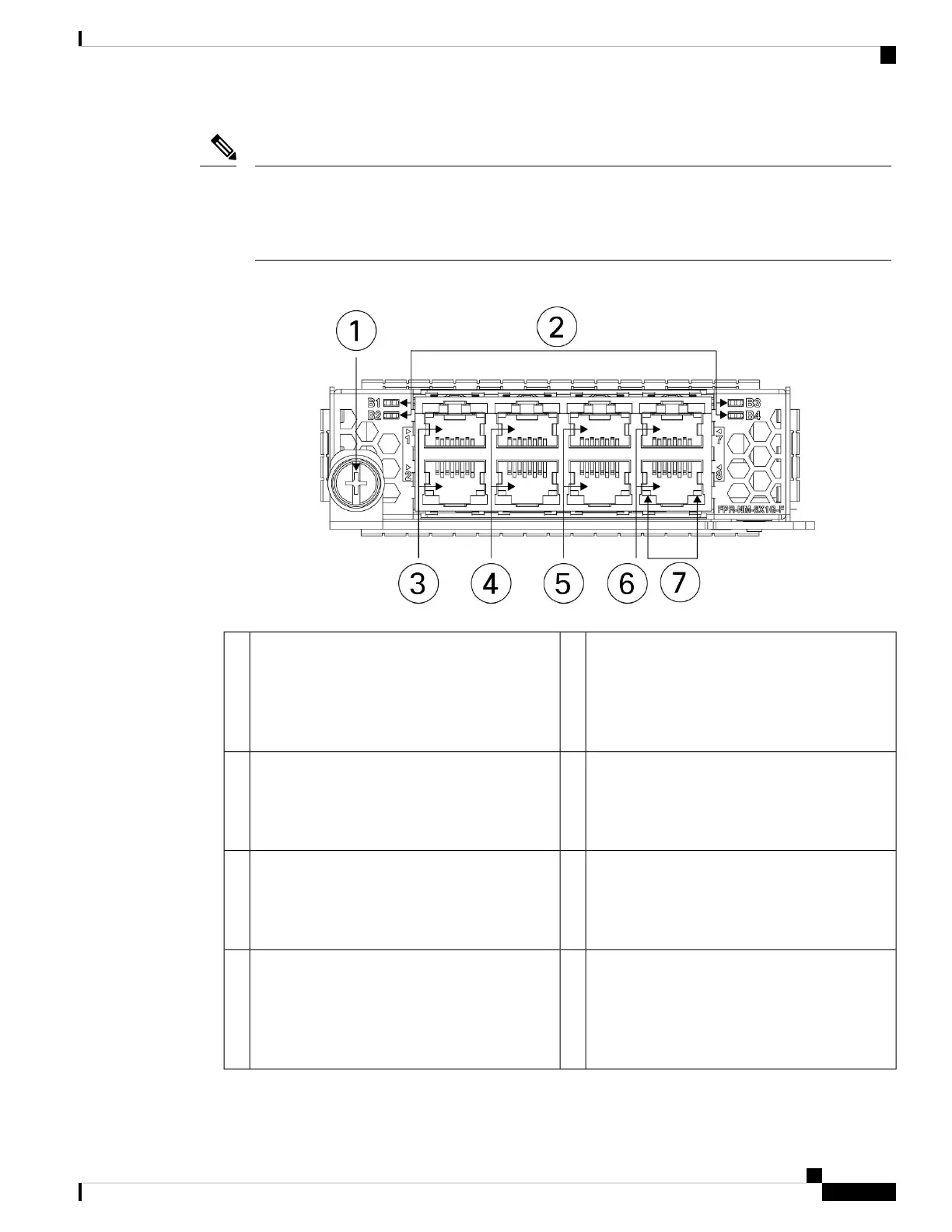

Figure 11: FPR-NM-8X1G-F
Bypass LEDs B1 through B4
• Green—In standby mode.
• Amber, flashing—Port is in hardware bypass
mode, failure event.
2Captive screw/handle1
Ethernet X/2
Ports 3 and 4 are paired together to form a
hardware bypass pair. LED B2 applies to this
paired port.
4Ethernet X/1
Ports 1 and 2 are paired together to form a
hardware bypass pair. LED B1 applies to this
paired port.
3
Ethernet X/2
Ports 7 and 8 are paired together to form a
hardware bypass pair. LED B4 applies to this
paired port.
6Ethernet X/2
Ports 5 and 6 are paired together to form a
hardware bypass pair. LED B3 applies to this
paired port.
5
—Network activity LEDs
• Left LED—Green indicates network activity
when a 10M/100M/1G connection is made.
• Right LED—Not in use at this time.
7
Overview
17
Overview
1-Gb Network Module with Hardware Bypass

Cisco Firepower 4100 Specifications

General

Brand	Cisco
Model	Firepower 4100
Category	Firewall
Language	English
