IPV5010, IPV5050, IPV6013, IPV6015, and IPV6016

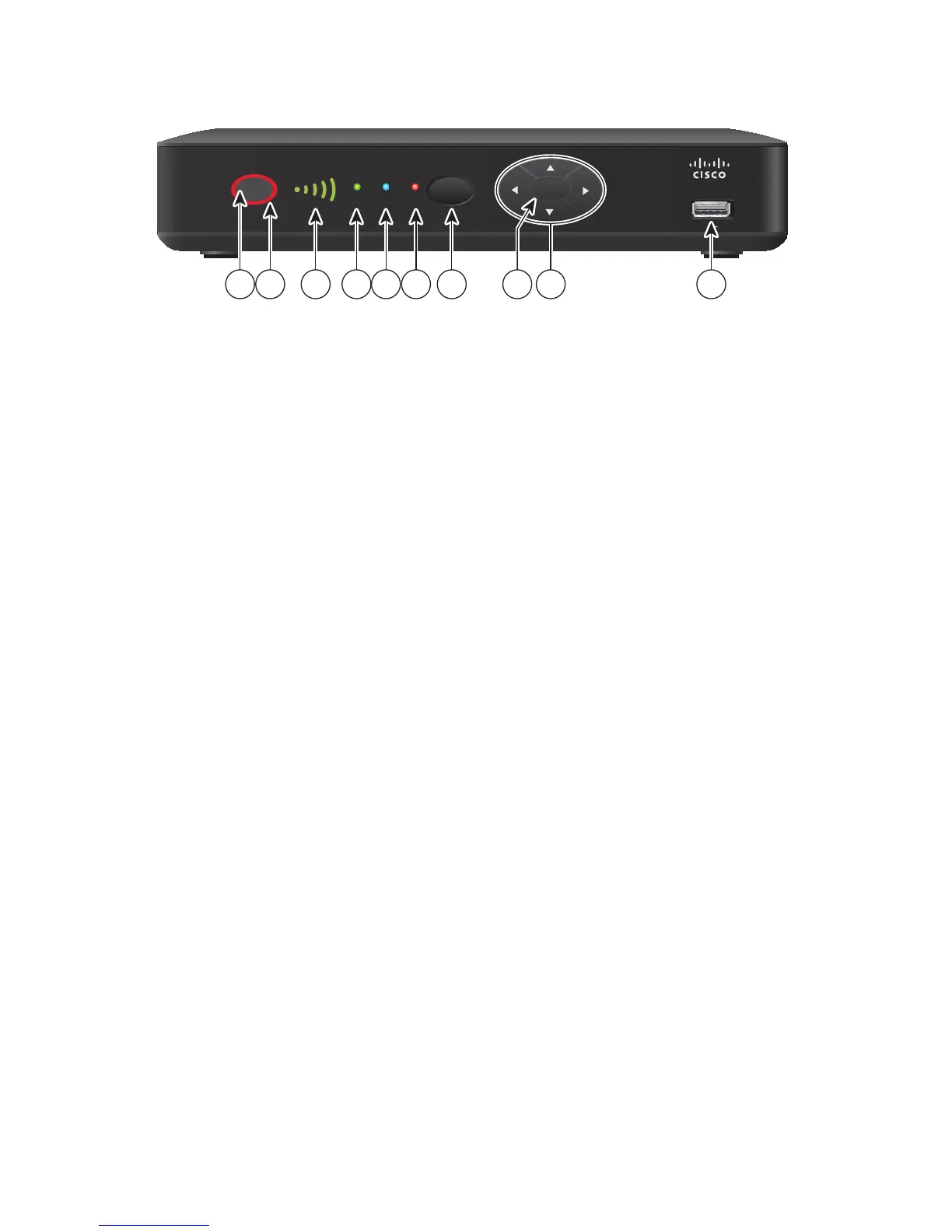

Front Panel
1 Power Turns the set-top on or places it in standby
2 LED halo LED is green for power on, red for standby
3 Signal Strength Identi es the strength of the wireless connection (Optional)
Indicator
4 LINK Indicates network link status. The LED is green
5 HD Indicates the set-top is set to a resolution of 720p, 1080i, or 1080p.
The LED is blue
6 REC Indicates that a recording is in progress. The LED is red
7 MENU Accesses the on-screen menu
8 OK Selects the current item
9 Arrow Keys Accesses on-screen services (such as the on-screen guide,
video-on-demand, or pay-per-view) and navigates menus
10 USB Port USB connector
Note: This illustration may vary from the actual product.
