IPV5000, IPV5001, IPV6003, IPV6005, and IPV6006

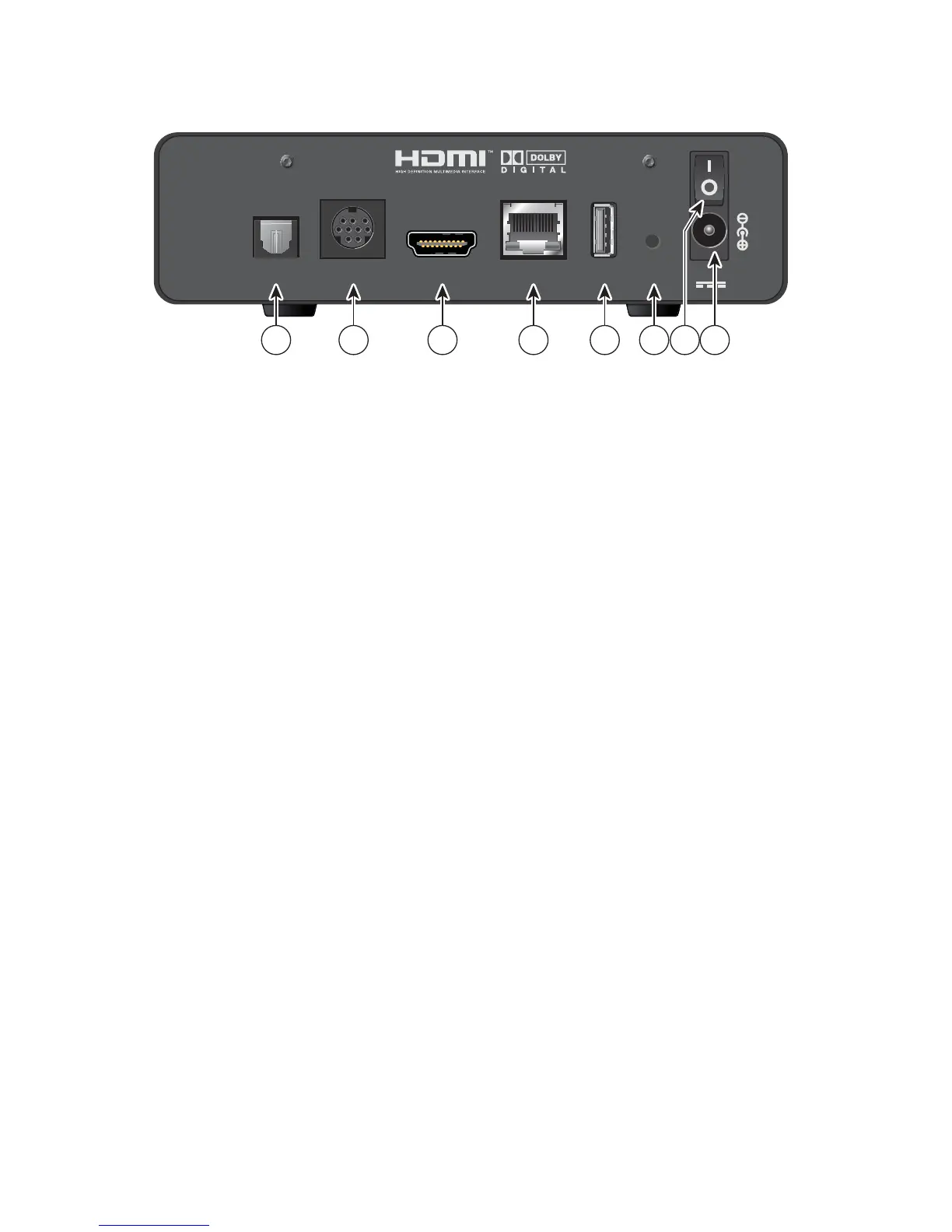

Back Panel
1 S/PDIF Connect to an optical cable to send a digital audio signal to a surround
sound system or other digital audio device
2 SCART Connect a MiniDin-to-SCART adapter cable to the SCART connector
on your HDTV or SDTV
3 HDMI Connect an HDTV HDMI (High-De nition Multimedia Interface) cable
from the HDTV to the HDMI port. HDMI supports both digital audio and
video. See page 14 for more information
4
ETHERNET Connect to Ethernet (CAT-5) network at your home, if applicable
5 USB Port USB connector
6 Reset Press for one second to reboot the set-top
7 Power switch Toggle to switch the set-top on or o
8 Power Connect the DC output of the AC power adapter (provided) to deliver
power to the set-top. Use only the AC power adapter provided with
the set-top
Note: This illustration may vary from the actual product.
