11
IPV5010, IPV5050, IPV6013, IPV6015, and IPV6016

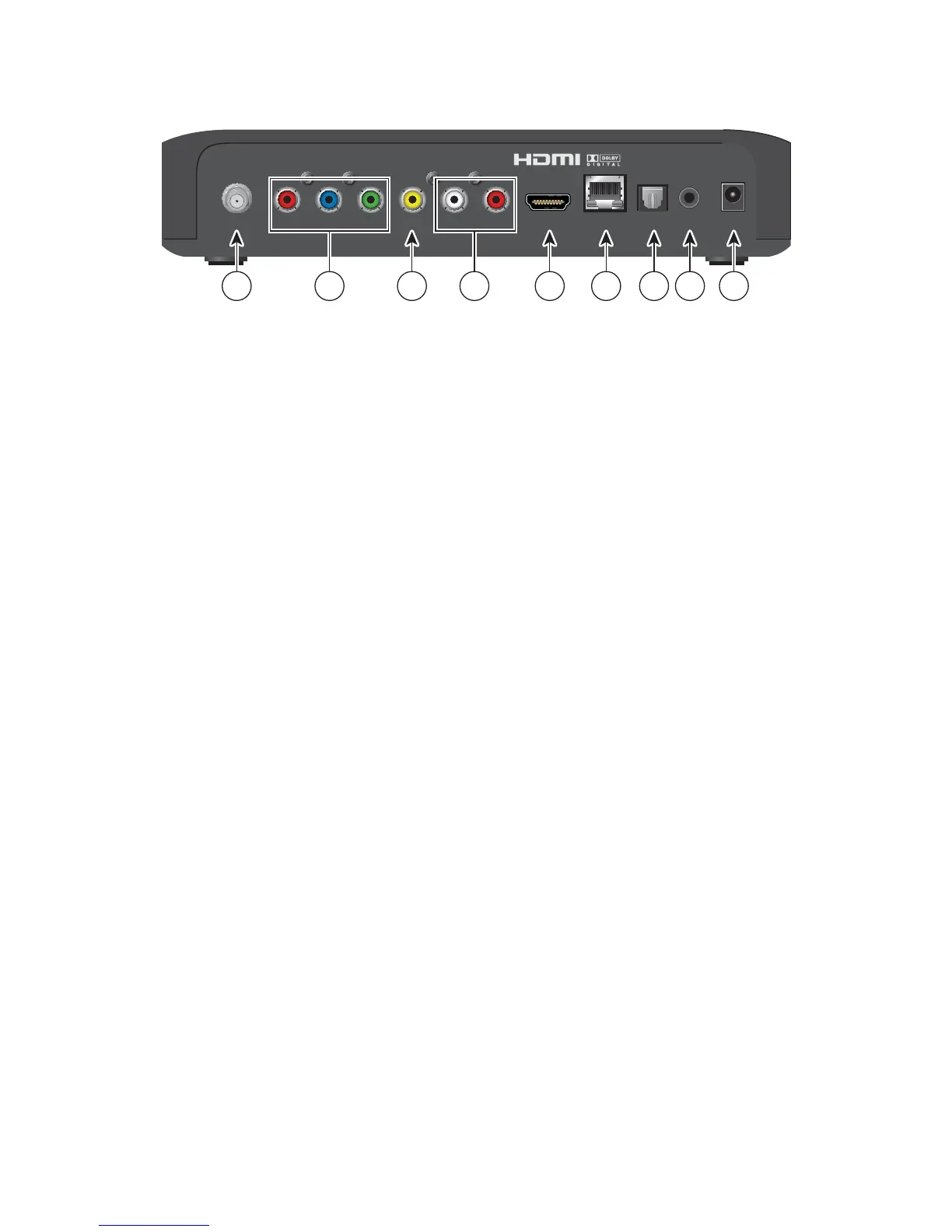

Back Panel
1 F-Con Connect to in-house coaxial wiring, if applicable (Optional)
2 Pr Pb Y Connect the receiver to the component video input (PrPbY) on the
HDTV. See pages 14 and 15 for more information
3
CVBS Connect to composite video input on your HDTV or SDTV
4 Audio Out (L/R) Connect RCA-type cables to Audio Out to send analog audio signals
(left and right) to a TV with stereo inputs or to a stereo ampli er
5 HDMI Connect an HDTV HDMI (High-De nition Multimedia Interface) cable
from the HDTV to the HDMI port. HDMI supports both digital audio and
video. See page 14 for more information
6
NETWORK Connect to the Ethernet (CAT-5) network at your home, if applicable
7 OPTICAL Connect an optical cable to send a digital audio signal to a surround-
sound receiver or other digital audio device
7 IR Available to be connected to an approved remote IR receiver (purchased
separately). Contact your service provider for details
8 Power Connect the DC output of the AC power adapter (provided) to deliver
power to the set-top. Use only the AC power adapter provided with
the set-top
Note: This illustration may vary from the actual product.
LRPr Pb Y CVBS HDMI NETWORK OPTICAL POWER
F-Con IR
T16440
1 3 5 6 7 8 92 4
