Cisco ISA3000-4C-K9

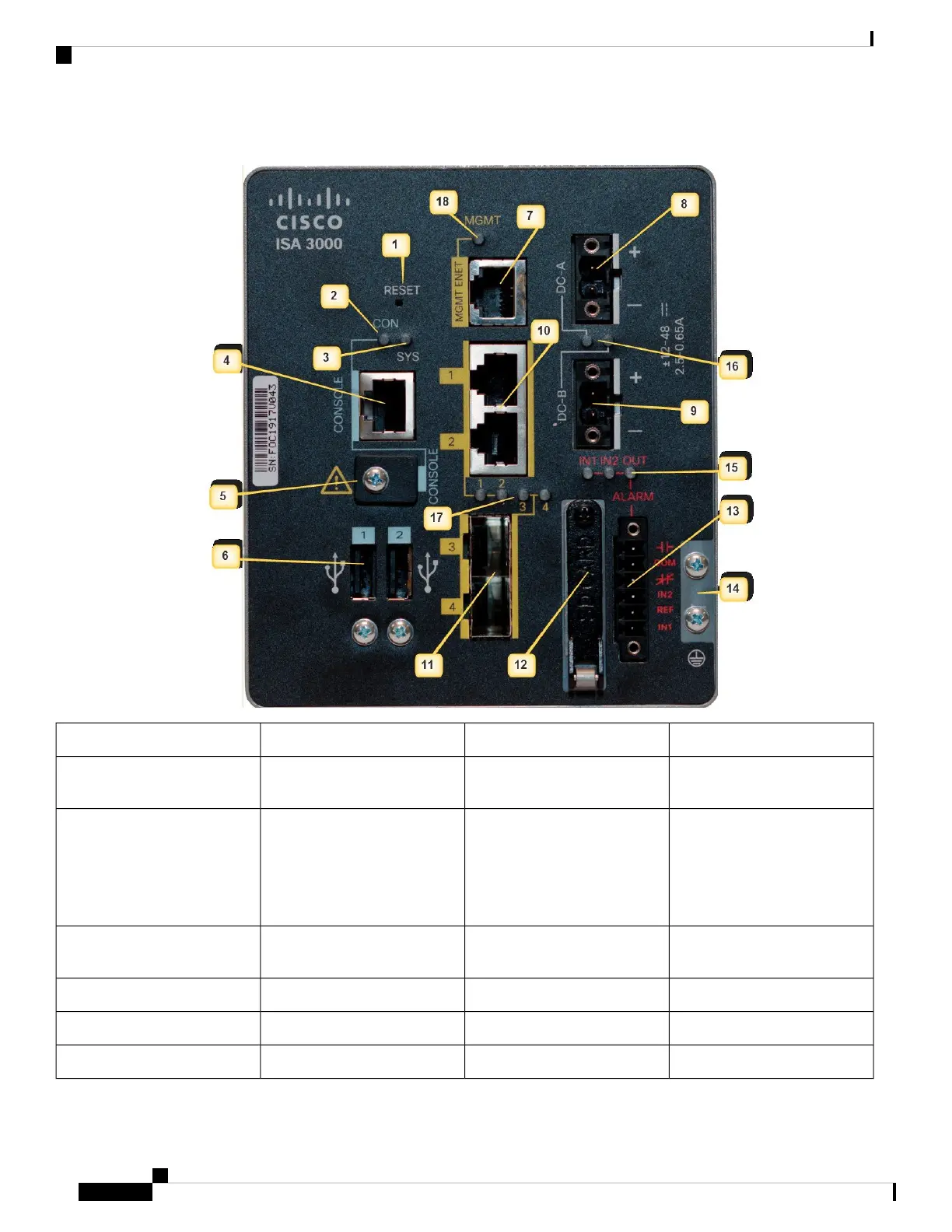

Figure 3: Cisco ISA 3000 Front Panel
DescriptionPINDescriptionPIN
RJ45 10/100/100 BaseT
Connectors 1&2
10Reset Pinhole Access1
On the ISA-3000-2C2F SKU,
these are the SFP sockets.
On the ISA-3000-4C SKU,
these are RJ45 10/100/100
BaseT Connectors 3&4
11Console LED2
1GB removable SD flash
memory card slot
12System LED3
Alarm Connectors13Console connector (RJ-45)4
Grounding Point14Console connector (mini-USB)5
Alarm LEDs15USB connectors6
