Configuration instructions for WET610N Radio Rev0

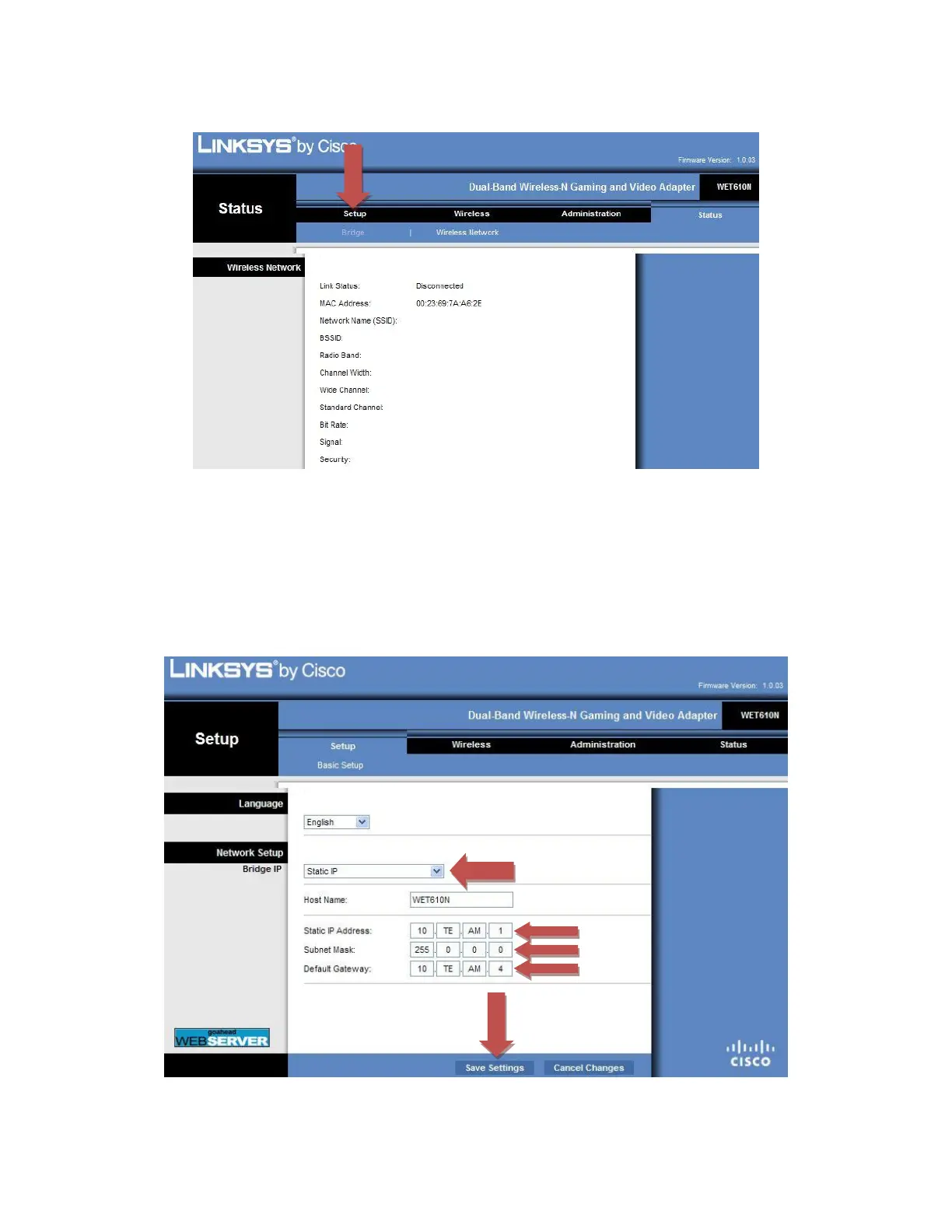

7. The WET610N will reboot to the screen shown below, select the Setup tab.
8. Change the Bridge IP setting to “Static IP” and configure as shown below, then Save Settings.
a. Example #1, Team 9999
i. IP: 10.99.99.1, Gateway: 10.99.99.4
b. Example #2, Team 999
i. IP: 10.9.99.1, Gateway: 10.9.99.4
c. Example #3, Team 99
i. IP: 10.0.99.1, Gateway: 10.0.99.4
The Radio is now configured for use on the FRC field.
