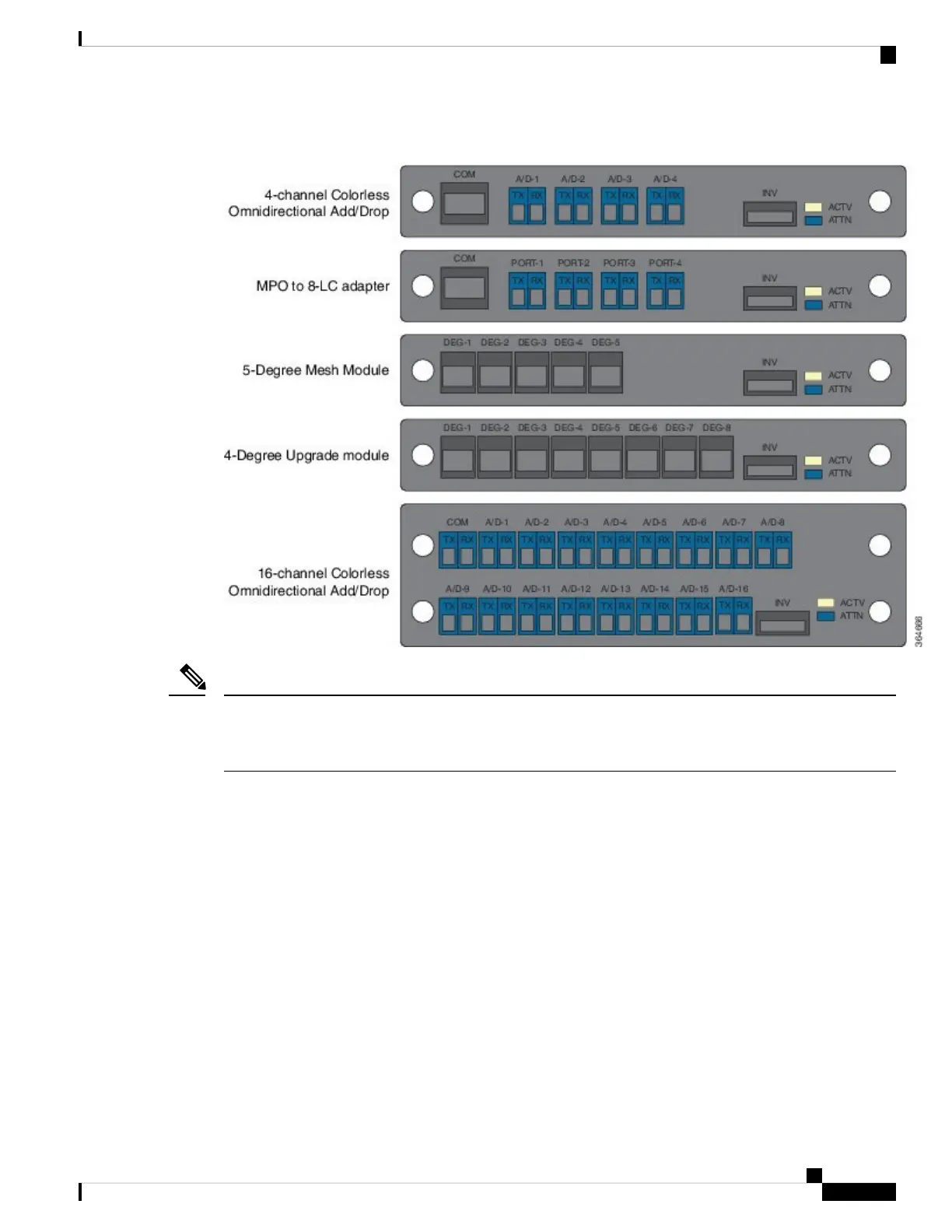

Figure 11: Front Panel Layout 1
The front panel layout for the 5-degree Mesh Connection Verification Module is the same as the 5-degree
Mesh Module layout and the layout for the 4-degree Upgrade Connection Verification Module is the same
as the 4-degree Upgrade Module layout.
