The MPO-8 and MPO-16 cables have a similar physical appearance. Hence, when connecting the cables to
the MPO-8 or MPO-16 adapters, use only MPO-8 and MPO-16 cables to connect to their respective adapters
because the optical signals will not pass through the module if a wrong cable is used.
Note
The front panel layout for the MPO-16 to 16-LC Fan-out Connection Verification Module is the same as the
MPO-16 to 16-LC Fan-out Module layout.
Note

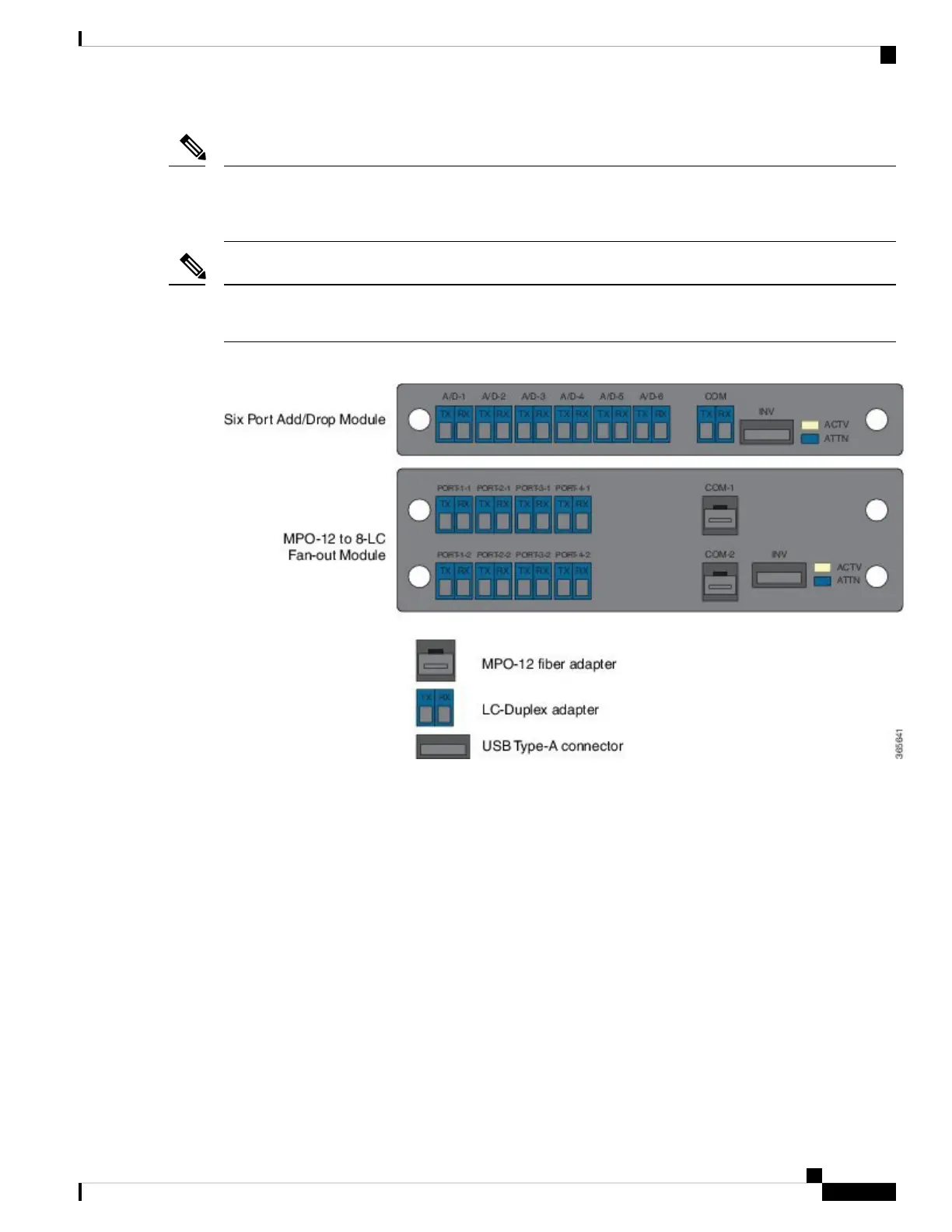

Figure 13: Front Panel Layout 3
Components of Cisco NCS 2000 Series Passive Optical Modules
The components of Cisco NCS 2000 Series passive optical modules are:
16-channel Colorless Omni-directional Add/Drop (NCS2K-MF-16AD-CFS=)
The following are the features of 16-channel colorless omni-directional add/drop passive module:
• Comprises one 1x16 splitter, one 16x1 combiner, and seventeen photodiodes arranged as shown in the
following figure.
• This is a double slot module in the Cisco NCS2K-MF-1RU chassis.
• Embeds PDs for connectivity check and monitoring purposes.
• Virtual PDs are implemented by the unit on the drop ports.
• At CTC level, 33 power values are reported.
• USB connection can provide power values at PD and the manufacturing data stored in the flash memory.
