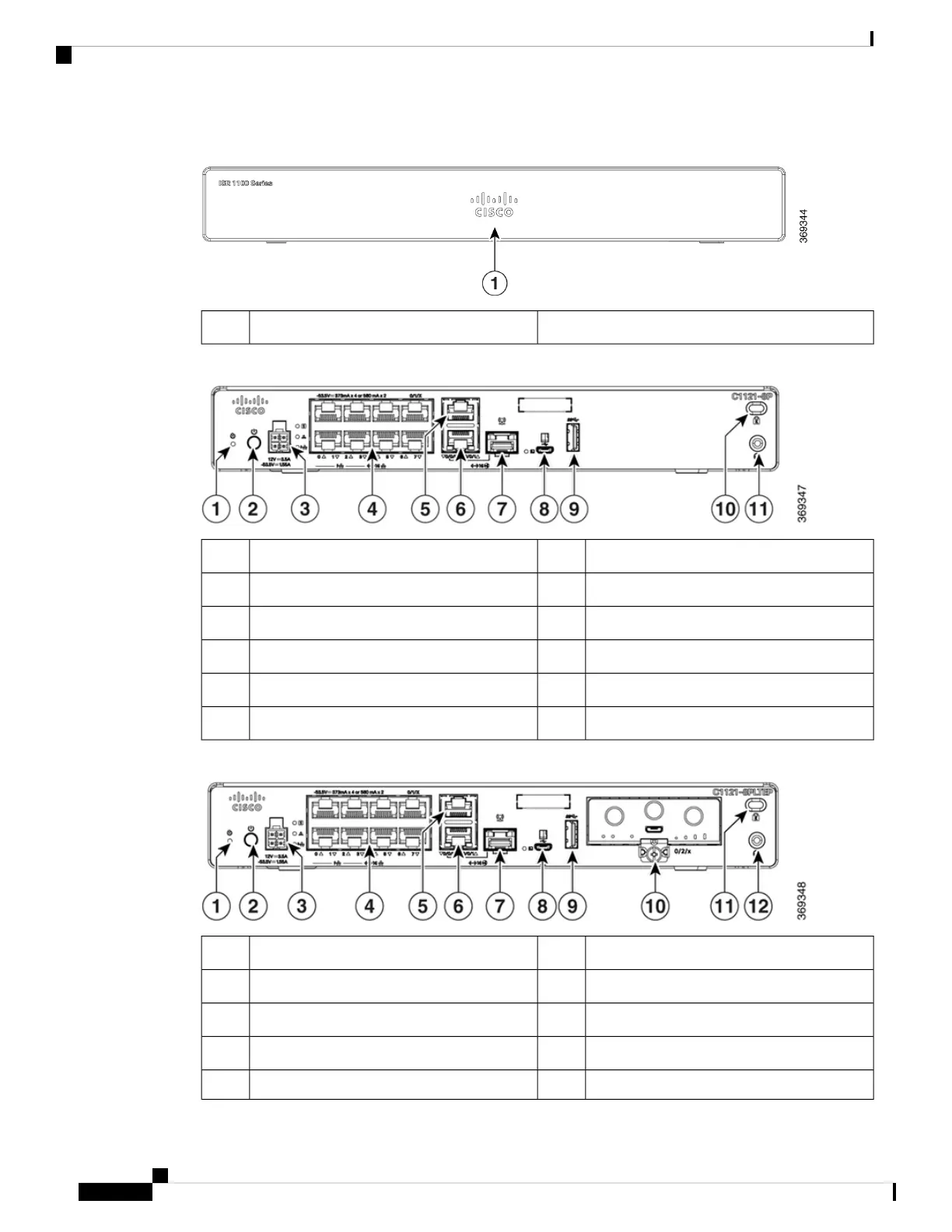

Figure 13: C1121(X)-8P - Bezel View
Non-illuminated Cisco logo1
Figure 14: C1121(X)-8P I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
Kensington Lock Slot10USB 3.09
Grounding11
Figure 15: C1121-8PLTEP I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456GE 0/0/15
Micro-USB console8GE WAN 0/0/0 -SFP7
Pluggable10USB 3.09
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
