VISCA™/RS–232 control protocol,
continued
NOTE: The information on this page only applies to
PrecisionHD Camera 1080p12x.
Video mode selection
The DIP switch selection has priority over the selection made
by the CAM_Video_Format command. If the DIP switch is set
to auto, the CAM_Video_Format setting is used. If both are set
to auto, resolution is controlled automatically by EDID.
DIP Switch settings
The switches are numbered 1 to 5. The VISCA column shows
the value that must be used when using the CAM_Video_
Format command.
NOTE: The DIP switches are only read by the software at
startup/boot. Therefore if the DIP switches are changed the
camera must be rebooted.
If an undefined mode is selected, the output defaults to auto.
DIP Switch table for VISCA commands and video output formats
1 2 3 4 5 VISCA HDMI HD-SDI
0 0 0 0 0
x
Auto*
0 0 0 0 1
0x0000 1080p25 1080p25
0 0 0 1 0
0x0001 1080p30 1080p30
0 0 0 1 1
0x0002 1080p50 720p50
0 0 1 0 0
0x0003 1080p60 720p60
0 0 1 0 1
0x0004 720p25 720p25
0 0 1 1 0
0x0005 720p30 720p30
0 0 1 1 1
0x0006 720p50 720p50
0 1 0 0 0
0x0007 720p60 720p60
0 1 0 0 1
0x0009
SW control
The table shows the different settings
available for the HDMI and the HD-SDI
outputs.
Auto: Camera negotiates format over
HDMI. HD-SDI tracks HDMI and defaults
to 1080p30 in absence of HDMI sync.
Software: Used when controlling
cameras using the VISCA protocol.

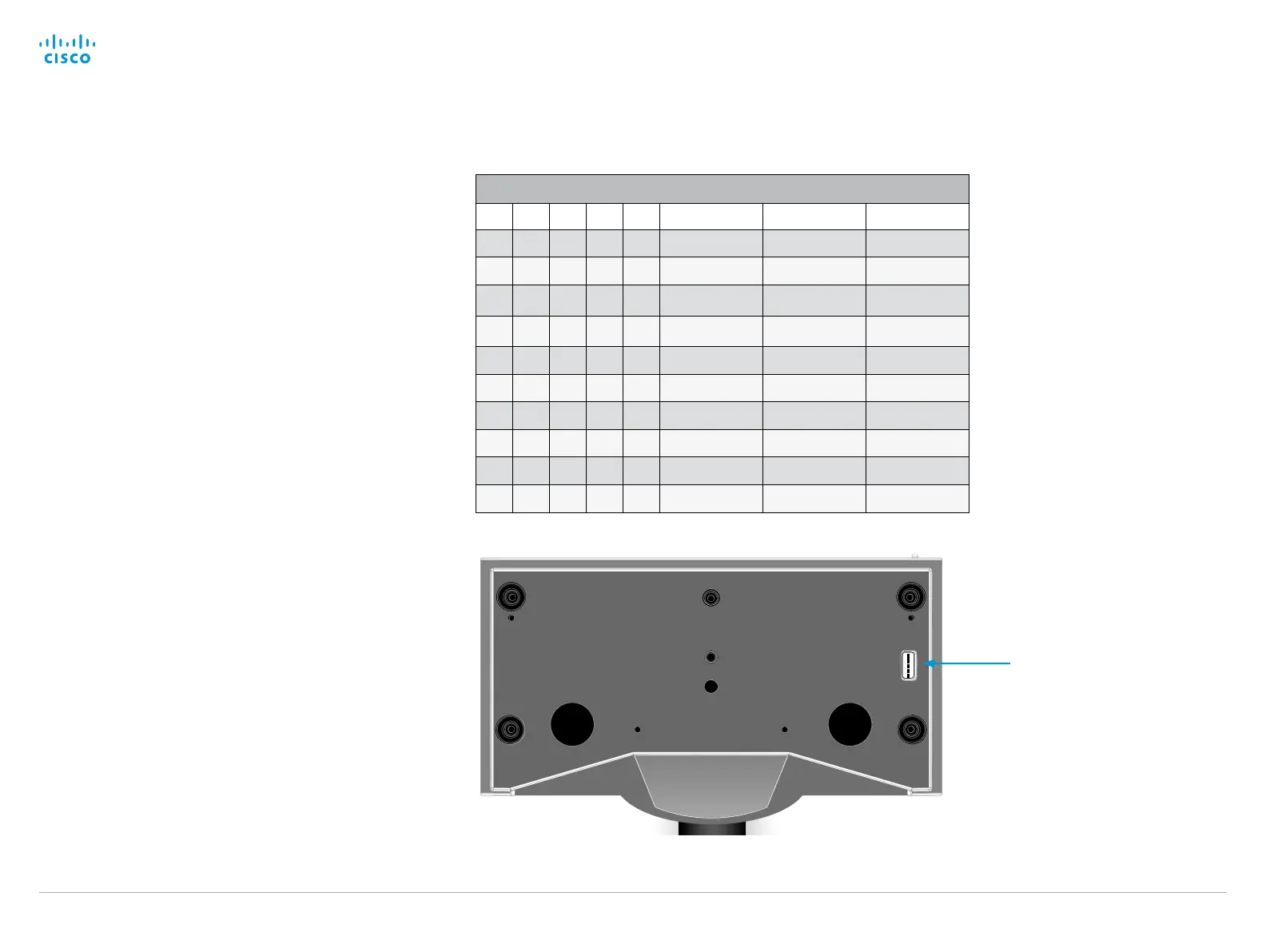

DIP switch table
PrecisionHD 1080p12x, from below
The DIP switches 1 to 5
0 1
