Cisco Router Cisco 3600 Installation Guide

5-23
Cisco 3600 Series Hardware Installation Guide
OL-2056-02
Chapter 5 Installing Memory in the Router
Replacing Flash Memory SIMMs

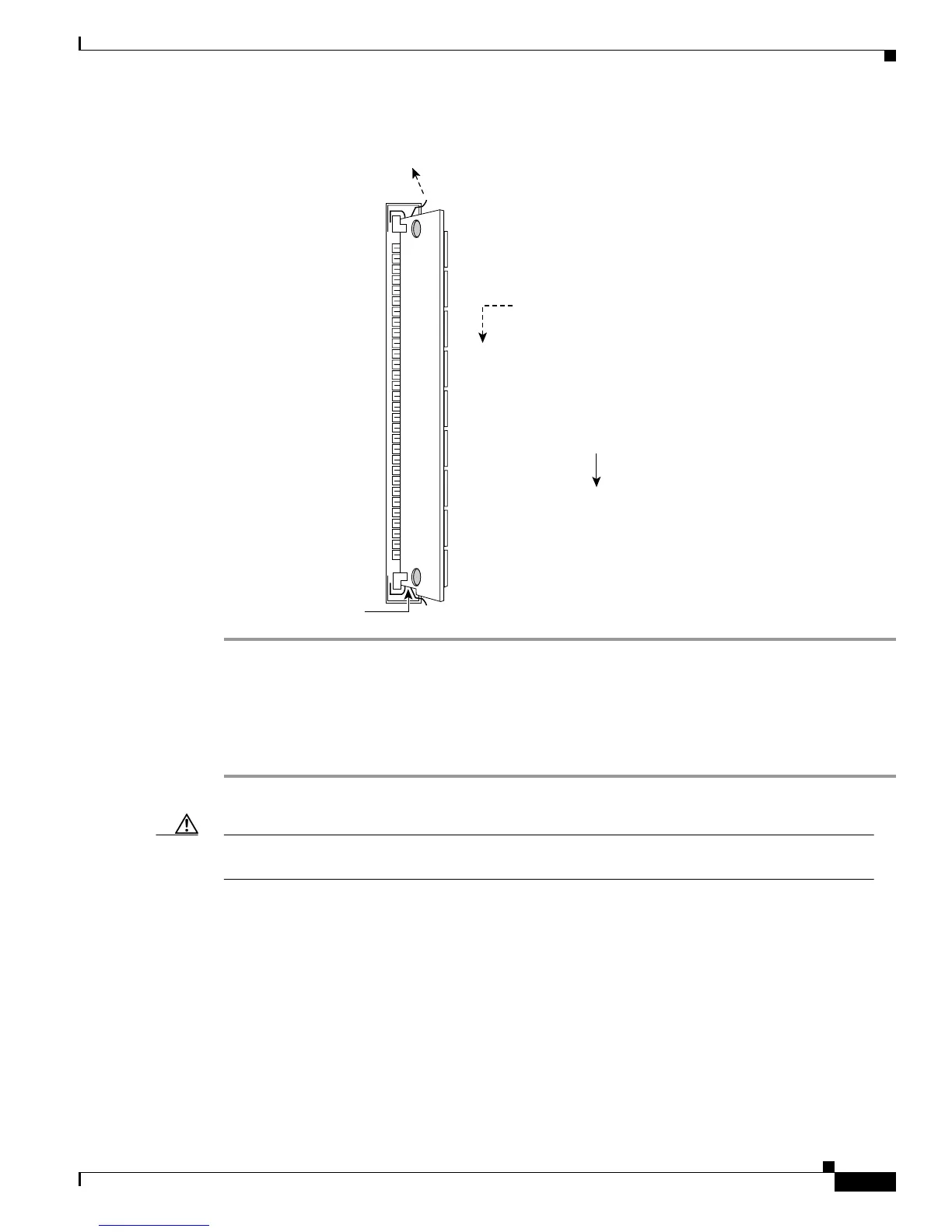

Figure 5-17 Removing Flash Memory SIMMs
Installing Flash Memory SIMMs
Perform this procedure to install Flash memory SIMMs:
Step 1 Locate the Flash memory SIMM sockets on the mainboard. (See Figure 5-14 through Figure 5-16.)
Caution Handle SIMMs by the non-connector edges only. SIMMs are ESD-sensitive components and can be
damaged by mishandling.
Step 2 Hold the SIMM with the polarization notch on the right and the component side away from you, with
the connector edge at the bottom.
Step 3 Beginning with bank 0, insert the Flash memory SIMM into its connector slot at an angle, tilted toward
the left side of the chassis. (See Figure 5-18.) Rock the SIMM into a vertical position using the minimum
amount of force required. When the SIMM is properly seated, the socket guide posts fit in the alignment
holes, and the locking springs click into place. Use a minimum of force.
2. Push the top of the SIMM
forward and down.
1. Pull the locking spring clips outward.
SIMM polarization notch
Top view
Front of chassis
H7085
