Chapter 5 Installing Memory in the Router
Installing and Formatting Compact Flash Memory Cards in Cisco 3631 Routers

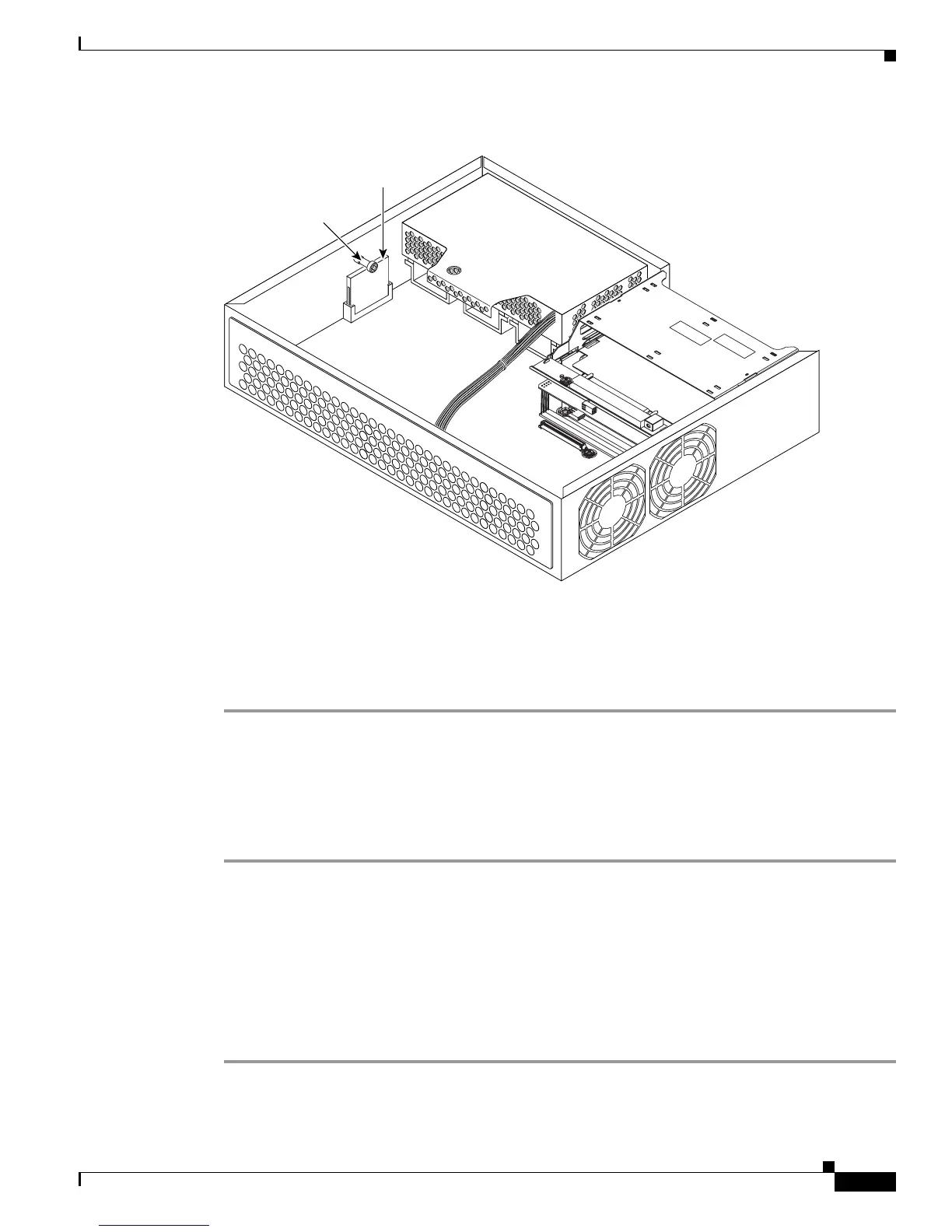

Figure 34 Compact Flash Memory Card Location in a Cisco 3631
Step 2 Remove the retention screw that retains the Compact Flash memory card by using the Phillips
screwdriver; save the retention screw for reinstallation.
Step 3 Carefully pull the Compact Flash memory card free from the connector.
Step 4 Place the removed Compact Flash memory card on an antistatic surface or in a static shielding bag.
Installing the Compact Flash Memory Card
You can install a Compact Flash memory card with 32-, 64-, or 128-MB of memory.
Perform the following steps to install the Compact Flash memory card:
Step 1 Locate the Compact Flash memory-card connector on the CPU/mainboard. (See Figure 34.)
Step 2 Insert the connector end of the Compact Flash memory card into the connector until the card is seated
in the connector. The card is keyed, so that it cannot be inserted wrong.
Step 3 Reinstall the retention screw to retain the Compact Flash memory card.
Step 4 Install the chassis cover as described in the “Replacing the Cover on a Cisco 3620 or Cisco 3640 Router”
section on page 5-30.
Step 5 Refer to the “Formatting Procedures for Compact Flash Memory Cards” section on page 5-49 for
instructions on formatting the Compact Flash memory card.
62479
Compact Flash
memory card
Retention screw
