Cisco Router Cisco 3600 Quick Reference Guide

Benefits & Advantages continued
Network Modules for Cisco 2600XM, 3600, and 3700 Series
74

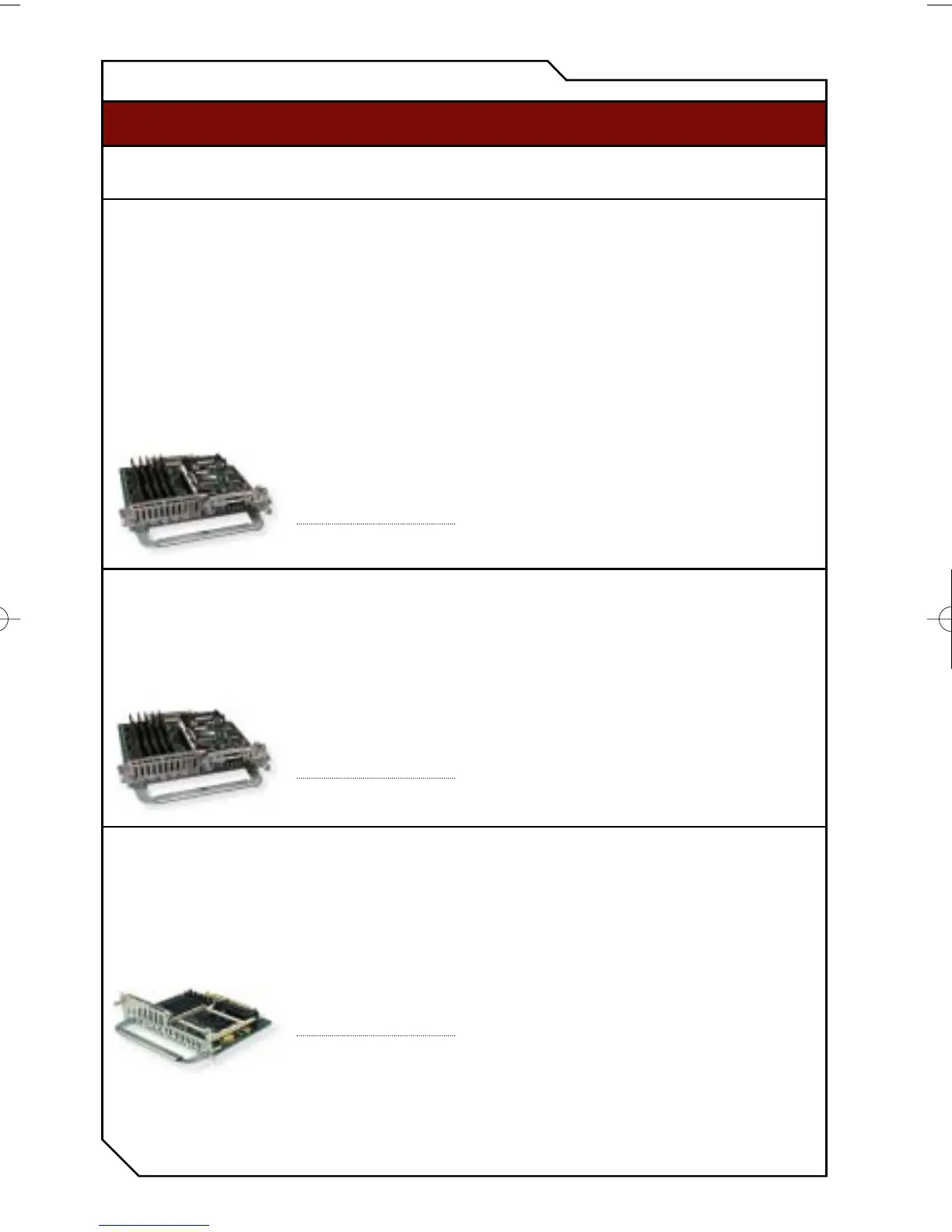

T1/E1/J1 Digital Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-HDV-1J1-30
1-port 30-channel J1
voice/fax network module
Provides a single J1
connection with support
for 30 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 18
channels of high- and/or
medium- complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(8)T
3640 – 12.2(8)T
3620 – 12.2(8)T
2691 – Future
2600XM Series – 12.2(8)T1
2650 Series – 12.2(8)T
2620 Series – 12.2(8)T
2610 Series – 12.2(8)T
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1J1-30 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One one-port E1
voice/WAN interface
card (VWIC-1MFT-E1)
• Three digital signal
processor modules
(PVDM-12)
NM-HDV-1J1-30E
1-port 30-enhanced-
channel J1 voice/fax
network module
Provides a single J1
connection with support
for 30 channels of high
and/or medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(8)T
3640 – 12.2(8)T
3620 – 12.2(8)T
2691 – Future
2600XM Series – 12.2(8)T1
2650 Series – 12.2(8)T
2620 Series – 12.2(8)T
2610 Series – 12.2(8)T
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1J1-30 is a
bundle of the following
components:
• One network module
(NM-HDV)
• One 1-port J1 voice
interface card (VIC-1J1)
• Five digital signal
processor modules
(PVDM-12)
NM-HDV
Digital T1/E1 packet voice
trunk network module
Spare
This network module is
the carrier card for the
PVDM-12 and VWIC cards.
It is the basis for all six
NM-HDV voice bundles.
Up to 30 unique combina-
tions of network module,
DSP modules, and VWICs
exist, allowing users to
increase voice channel
support from six up to 60
voice/fax channels.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
Requires at least one
voice/WAN interface card
(VWIC) or VIC-1J1 and a
12-channel DSP module
(PVDM-12).
AccessRouter_10.21.02 10/24/02 3:31 PM Page 74
