Cisco Router Cisco 3600 Quick Reference Guide

T1/E1/J1 Digital Voice Network Modules
Network Modules for Cisco 2600XM, 3600, and 3700 Series
75
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments

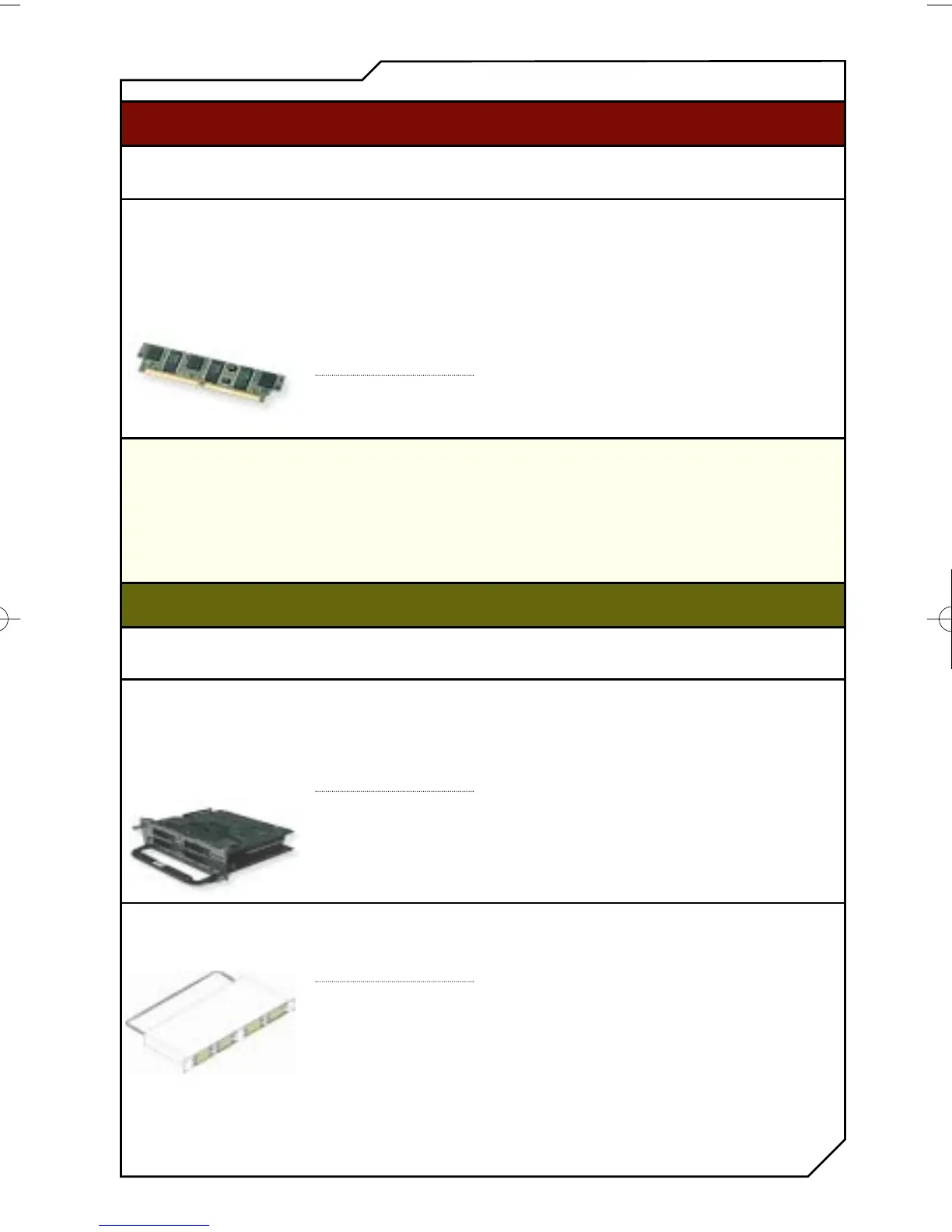

PVDM-12
12-channel packet voice
DSP module upgrade
—
spare
Installable into an NM-
HDV. It contains three TI
549 DSPs along with the
necessary DSP SRAM to
process six high- or
medium-complexity
compressed voice
channels or 12 medium-
complexity compressed
voice channels.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
Requires at least one high-
density voice network
module (NM-HDV) and a
voice/WAN interface card
(VWIC).
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-AIC-64
Alarm monitoring and
control network module
Provides ports for 64
discrete alarm points and
16 relay control points. Up
to eight of the 64 alarm
points can be configured
to accept analog input.
Modular Router Solutions
Alarm monitoring and
control
3700 Series – Not Available
3660 Series – 12.2(2)XG
3640 – 12.2(2)XG
3620 – 12.2(2)XG
2691 – Not Available
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XG
2620 Series – 12.2(2)XG
2610 Series – 12.2(2)XG
Requires a SCSI to Telco
patch panel.
AIC-DBL-PNL
Patch Panel
SCSI to Telco Patch Panel
for terminating up to 128
alarm points
(two NM-AIC-64).
Modular Router Solutions
Alarm monitoring and
control
3700 Series – Not
Available
3660 Series – 12.2(2)XG
3640 – 12.2(2)XG
3620 – 12.2(2)XG
2691 – Not Available
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XG
2620 Series – 12.2(2)XG
2610 Series – 12.2(2)XG
Requires an alarm
monitoring and control
network module.
Alarm Monitoring and Control
Network Modules and Accessories
Integrated Digital Modem Network Modules
AccessRouter_10.21.02 10/24/02 3:31 PM Page 75
