Cisco RV120W User Manual

Reboot the Router with the Reset Button
Reboot through Reset button can be done in only one way:
1. Press the Reset button of the router for at least 3 seconds but no more than 8 seconds.
The power LED of the router blinks to verify that the router has restarted.
Reboot the Router with the Web Configuration Utility

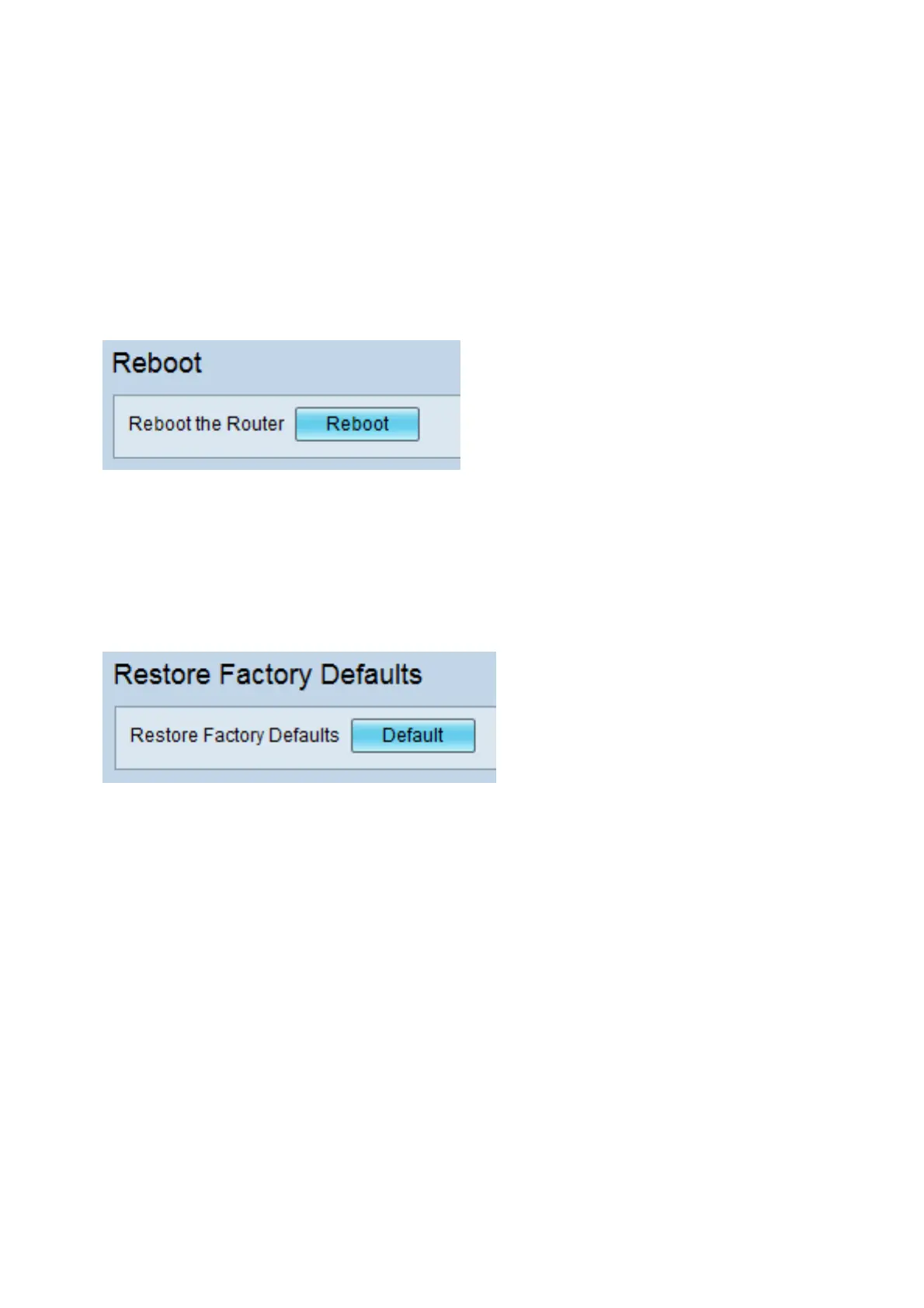

Step 1. Log in to the web configuration utility and choose Administration > Reboot. The
Reboot page opens:
Step 2. Click Reboot to proceed with the reboot of router.
Reset the Router with the Web Configuration Utility
Step 1. Log in to the web configuration utility and choose Administration > Restore
Factory Default. The Restore Factory Defaults page opens:
Step 2. Click Default to proceed with the restore of factory default settings.

Cisco RV120W Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Channels quantity	13 channels
WLAN data transfer rate (max)	300 Mbit/s
Input current	1 A
Input voltage	12 V
xDSL connection	No
Dimensions (WxDxH)	150 x 150 x 34 mm
Networking features	Fast Ethernet, WLAN, WAN
Operating temperature (T-T)	32 - 104 °F
Security algorithms	802.1x RADIUS, EAP, WPA2
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC B, CE, IC, Wi-Fi
Product color	Black
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	500 g
