Front-Panel LEDs

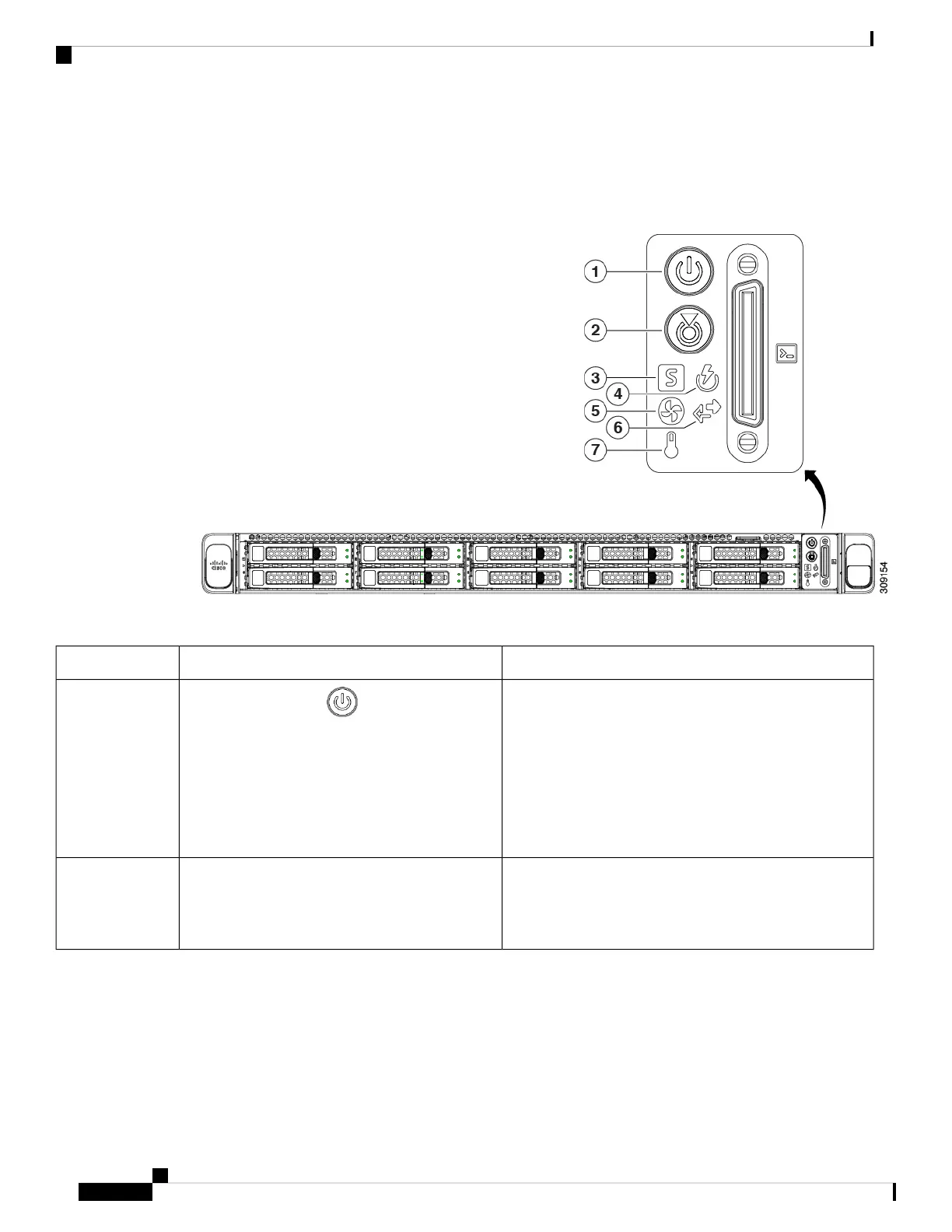

The following figure shows the front panel LEDs of Cisco SNS 3700 series appliance.
Figure 3: Front Panel LEDs
Table 2: Front Panel LEDs
StatesLED Name
• Off: There is no AC power to the server.
• Amber: The server is in standby power mode. Power
is supplied only to Cisco Integrated Management
Controller (Cisco IMC) and some motherboard
functions.
• Green: The server is in main power mode. Power is
supplied to all server components.
Power button or LED ( )
1
• Off: The unit identification function is not in use.
• Blue, blinking: The unit identification function is
activated.
Unit identification2
Cisco Secure Network Server 3700 Series Appliance Hardware Installation Guide
6
Cisco Secure Network Server 3700 Series Appliance Overview
Front-Panel LEDs
