Connecting the Equipment
The following procedure describes how to attach the Cisco SPA500DS to
a Cisco SPA500 Series IP Phone.
STEP 1 Turn both the Cisco SPA500 Series IP Phone and the Cisco
SPA500DS face down.
STEP 2 Align the screw hole in the CiscoSPA500 Series IP Phone with one
of the holes on the attachment arm.

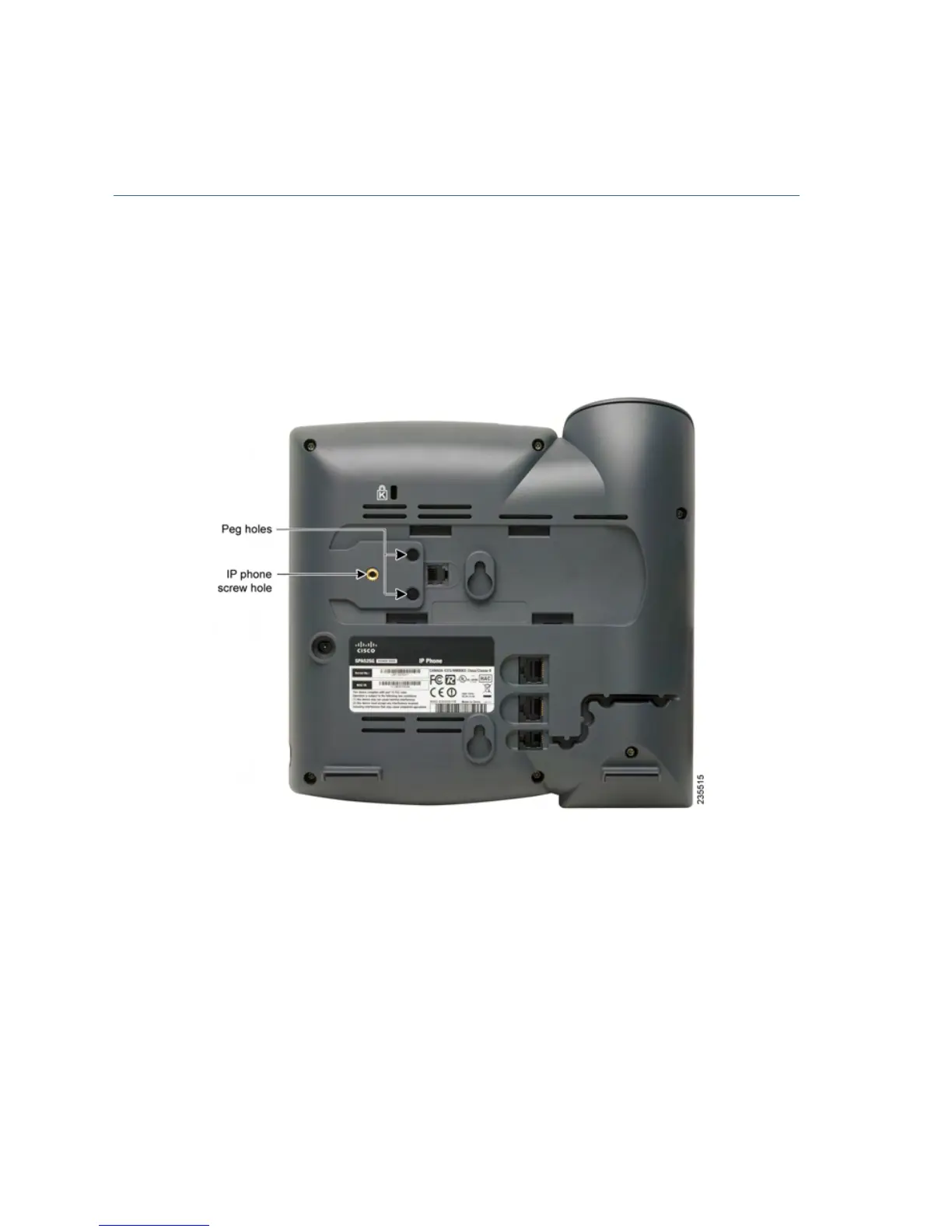

STEP 3 Insert the pegs on the attachment arm into the peg holes as shown
below on the Cisco SPA500 Series IP Phone.
STEP 4 Using an attachment arm screw, secure the attachment arm to the
Cisco SPA500 Series IP Phone.
STEP 5 Align the right screw hole in the Cisco SPA500DS with the unused
hole on the attachment arm.
