Chapter 5: Configuring the Switch through the Web Utility
VLAN Tab
24-port 10/100 + 2-Port Gigabit Switch with WebView
QoS Configuration
This screen allows you to configure the QoS. Select the QoS Mode of High Low = 3:1, Disable QoS Priority, High
Empty Then Low, High Low = 3:1, High Low = 5:1, High Low = 7:1 from the drop-down menu. Select the
Static Port Ingress Priority of High or Low from the drop-down menu, for the port you want to configure. Select
Off for the port to remain unchanged. For 802/1p Priority [7-0], select from 0 to 7, then select High or Low from
the drop-down menu.
Click Apply to save the changes.
Logout Tab
Click Logout OK to logout. Click back to go to the previous screen.

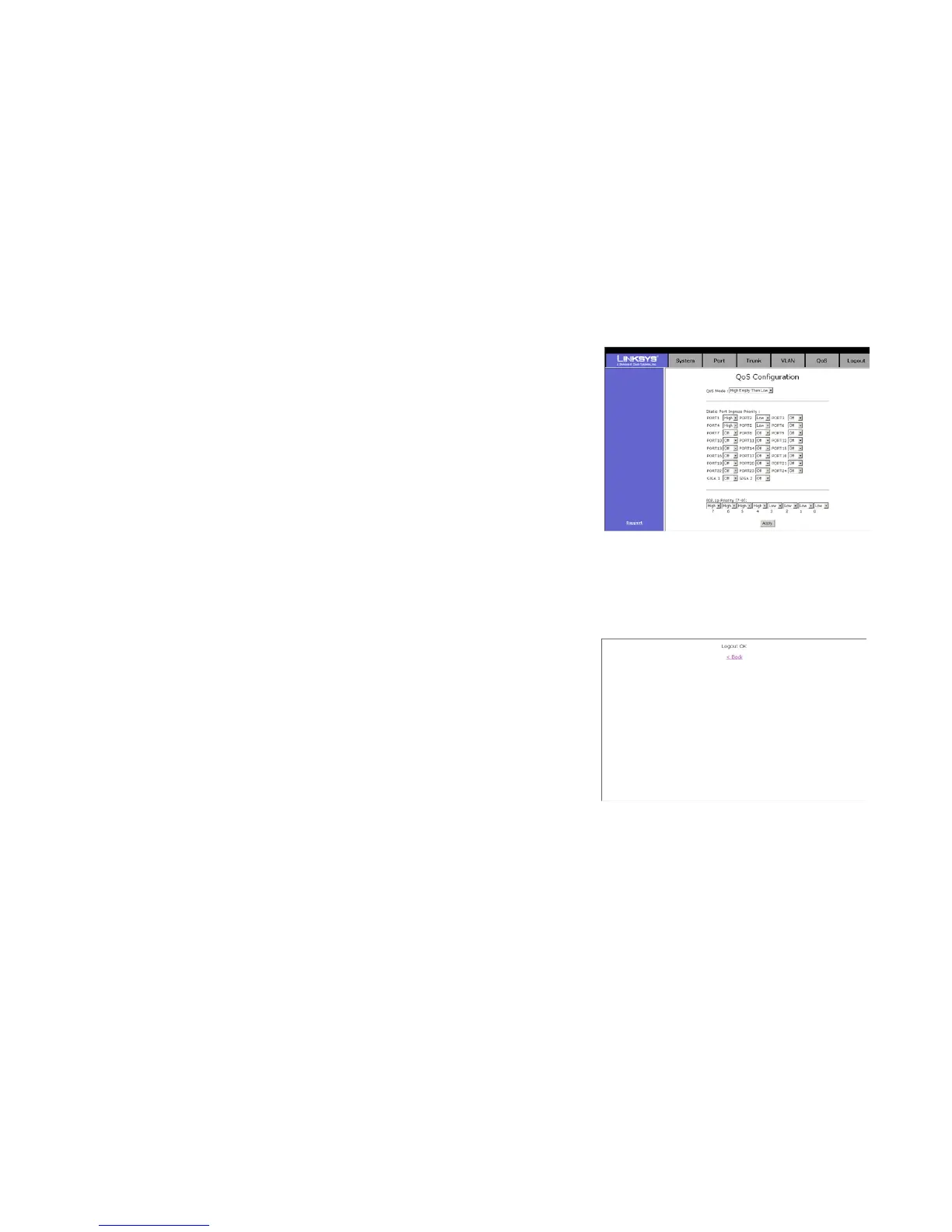

Figure 5-16: QoS Configuration
Figure 5-17: Logout Tab
