Installing the Lower and Upper Display Frames
© 2015 Cisco Systems, Inc. All rights reserved.
Page 9
3

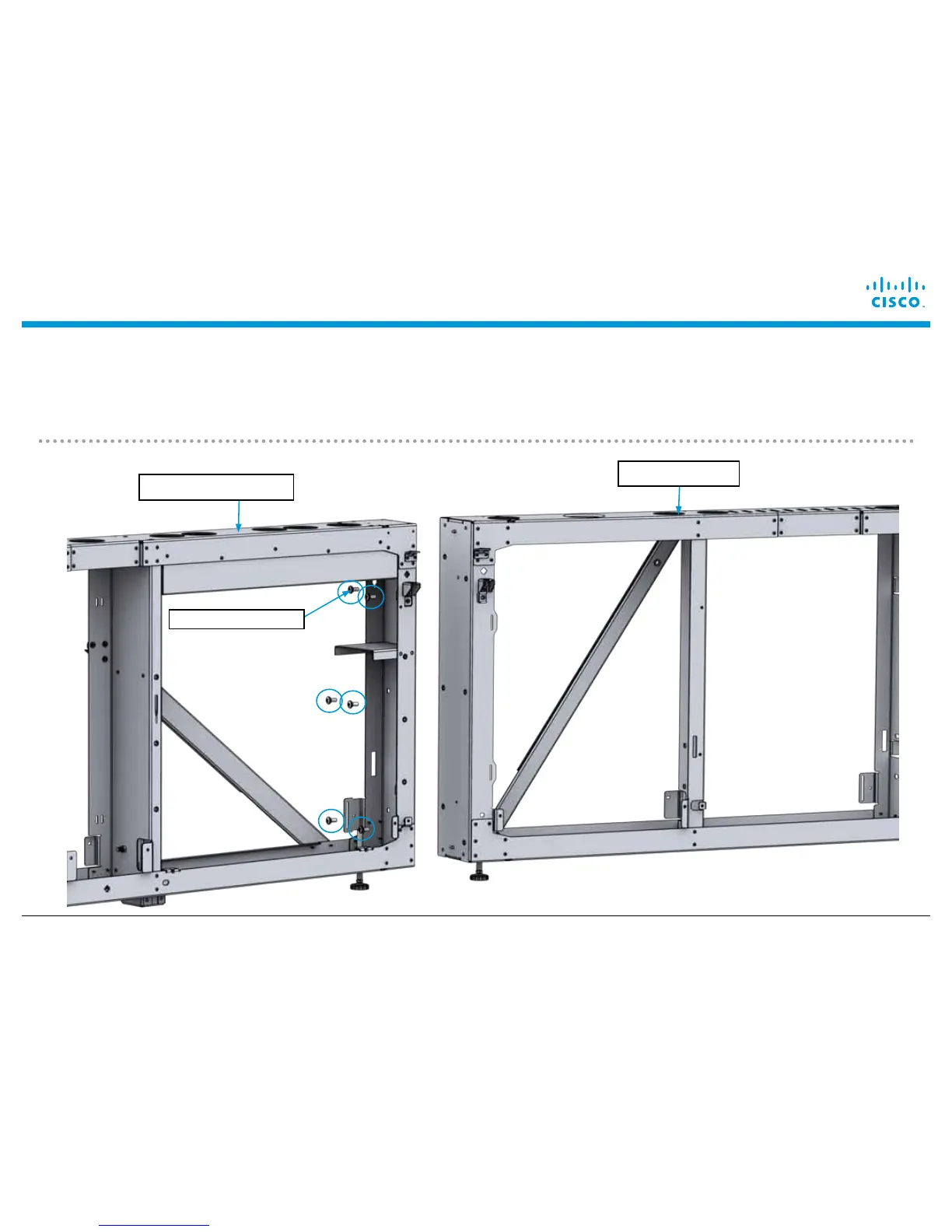

Attach the lower right frame 800-40928-xx to the display structure. Align the pins on the side of 800-
40928-xx with the hole and slot on the side of 800-40920-xx. Install 6x black M8 X 16mm screws 69-
2792-xx and tighten using a #3 Phillips driver.
6x 69-2792-x x
800-40920-xx
800-40928-xx
